chapter 6000
page 11
1,2 - 2,0 t A.C.
SERVICE MANUAL
Electric
036-0410-07
4
7
8
9
5
6
3
1
2

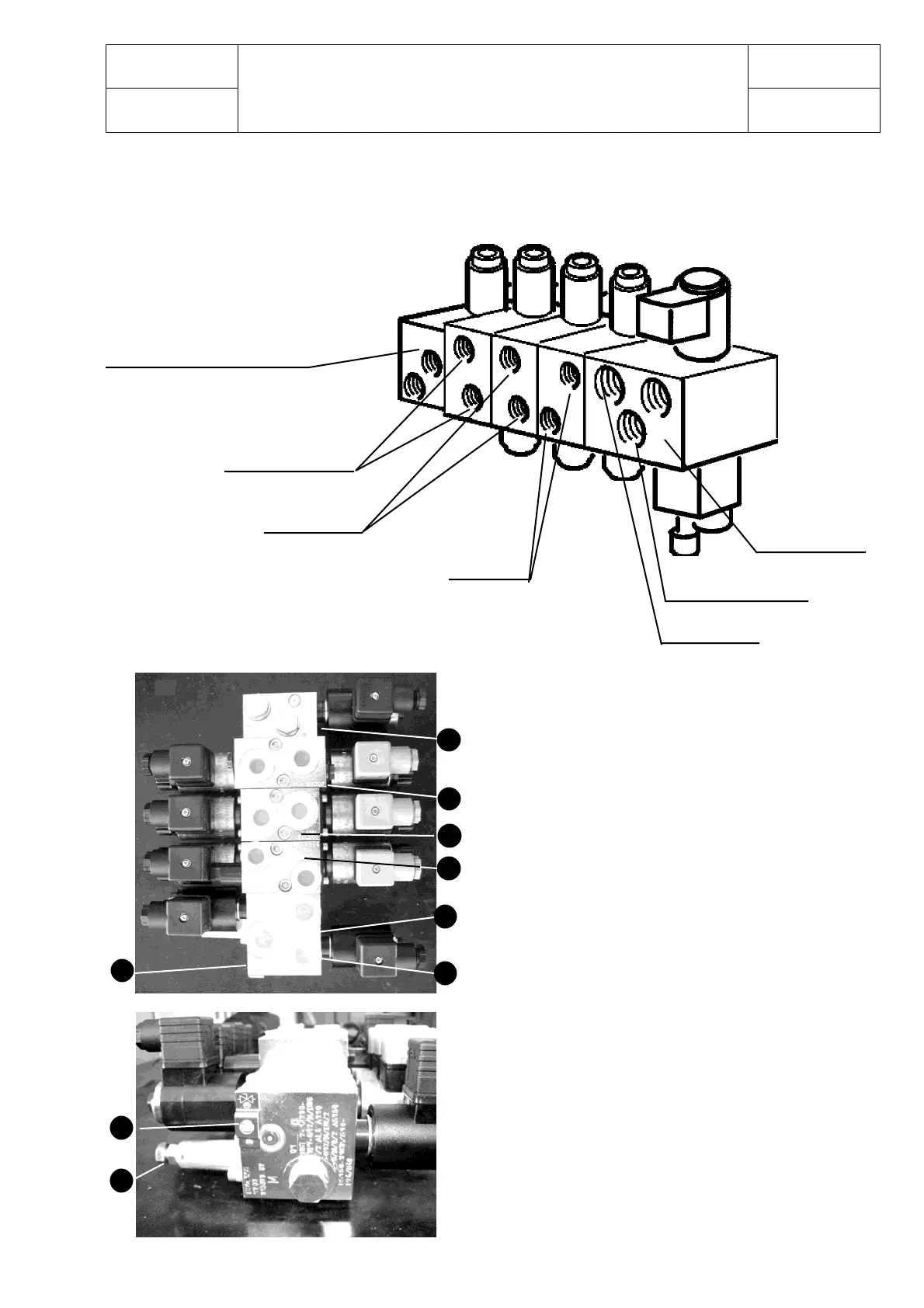

1. Safety valve for load lowering in case of failure
of the lifting solenoid valve.
2. Maximum pressure valve.
3. Lifting box.
4. Tilt box.
5. Sideshift box.
6. 4° Way box.
7. Proportional valve (EVP).
8. Drain pipe connection.
9. Main lifting pipe connection.
HYDRAULIC ELECTRIC CONTROL VALVES
Joysticks / fingertips version
Proportional valve
4th way
Sideshift
Tilting
Plug
Drain line
Lifting
