chapter 7000
page 3
1,2 - 2,0 t A.C.
SERVICE MANUAL
Electric
036-0410-07
The mast profile with double stiffening flange is characterised by a high flexural and torsional strength.
It allows wide visibility thanks to the reduced dimensions of the profile itself.
Cylinders are single-acting type.
The sideshift system has been housed inside the profiles.
The mast group is a roller type with a variable centre distance (i.e. a fixed roller is fitted on the outer mast and a
mobile one on the inner mast, instead of a number of mobile rollers only on the inner mast). This solution ensures
better grip and stability on operation.
Other features: side plays adjustable from outside. Plastic guide shoes. Roller bearings with grease nipples, ball
joints on axle couplings and tilt cylinders.

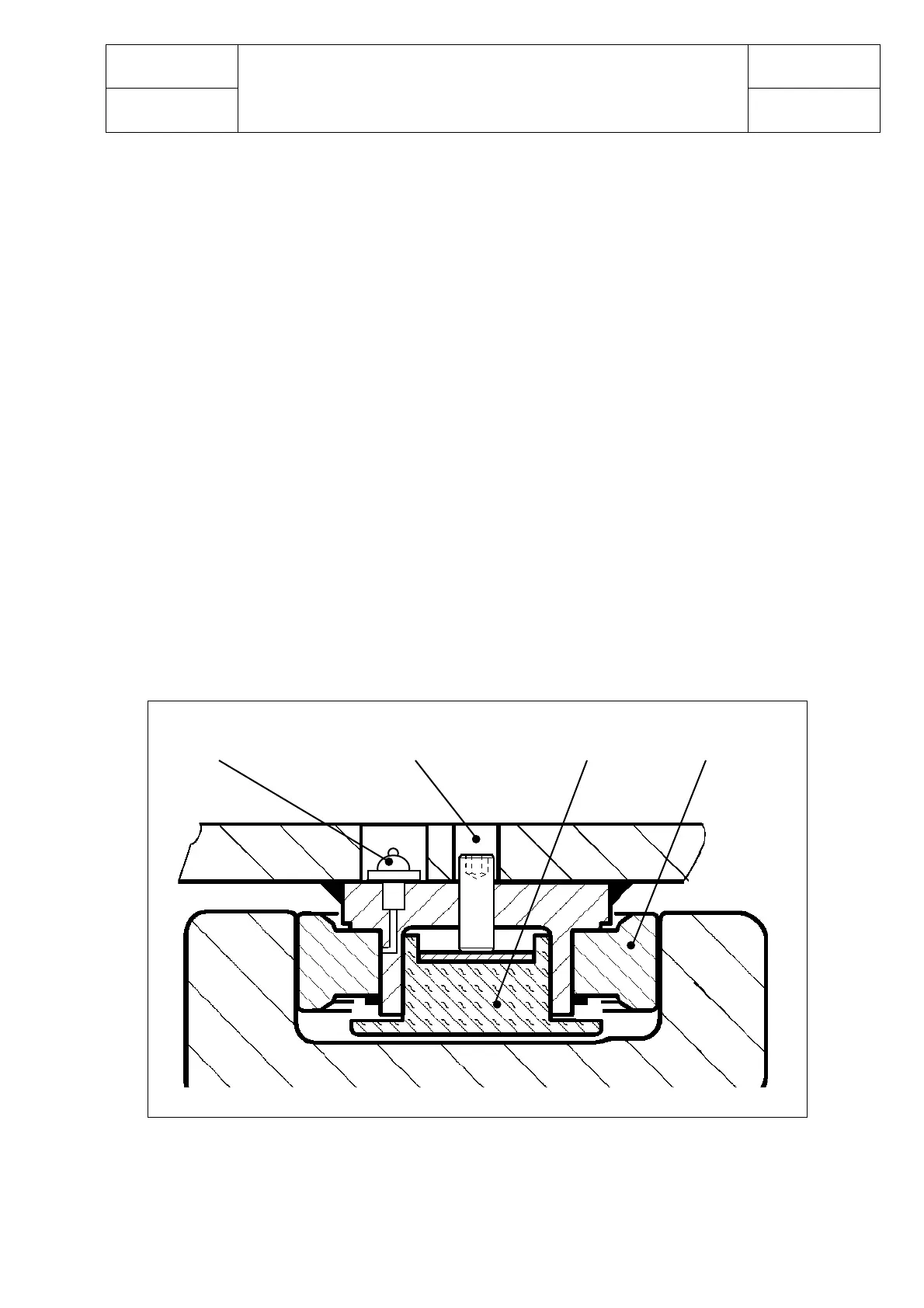

Grease nipple Adjusting screw Shoe Roller
MAST GROUPS
