© Cesab 11 – 4 T Code(s): 841, 842, 843
Repair manual: Drive gear 2550 Model(s): S210, S212, S212S, S212L, S214, S214L, S220D
Publication Number: 7588857-040 Date: 2018-05-01 Applies from serial number: 6384351-

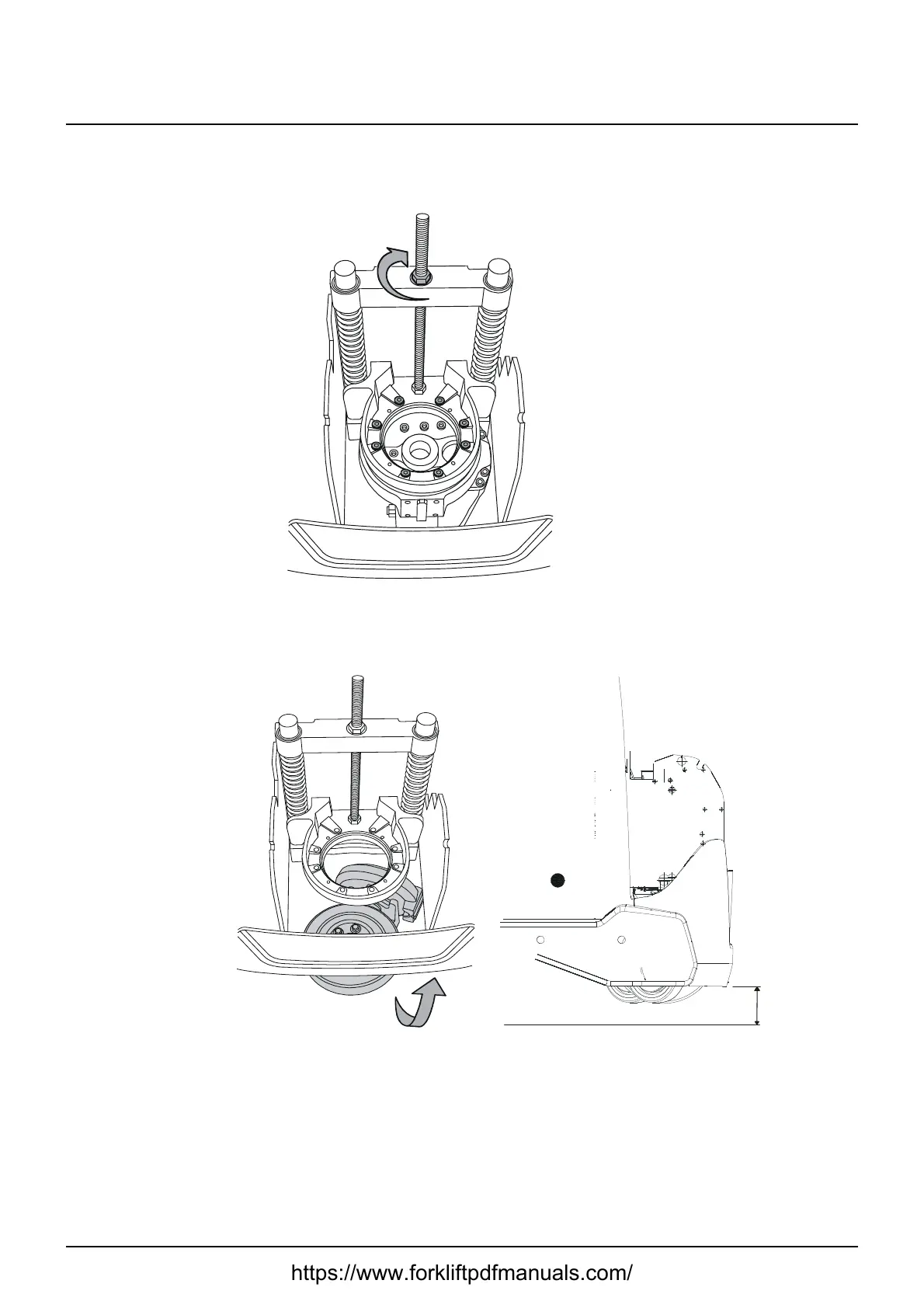

10. Lift the motor bracket using the threaded rod until the drive wheel is lifted
approx. 4 mm from the floor.
11. Unscrew the retaining screws of the gear box.
12. Lift carefully approx. 125 mm lay the gear down on the floor.
13. Lift a further 100 mm, a total of 225 mm and pull it out to the rear edge.
Install in reverse order.
Please note the risk of crushing when installing the unit.
