CESAB S214L - 12.10 Climber wheels; 12.10.1 Overview

© Cesab 12 – 14 T Code(s): 841, 842, 843
Repair manual: Brake system/Wheels C3000 Model(s): S210, S212, S212S, S212L, S214, S214L, S220D
Publication Number: 7588857-040 Date: 2018-05-01 Applies from serial number: 6384351-
12.10 Climber wheels
12.10.1 Overview

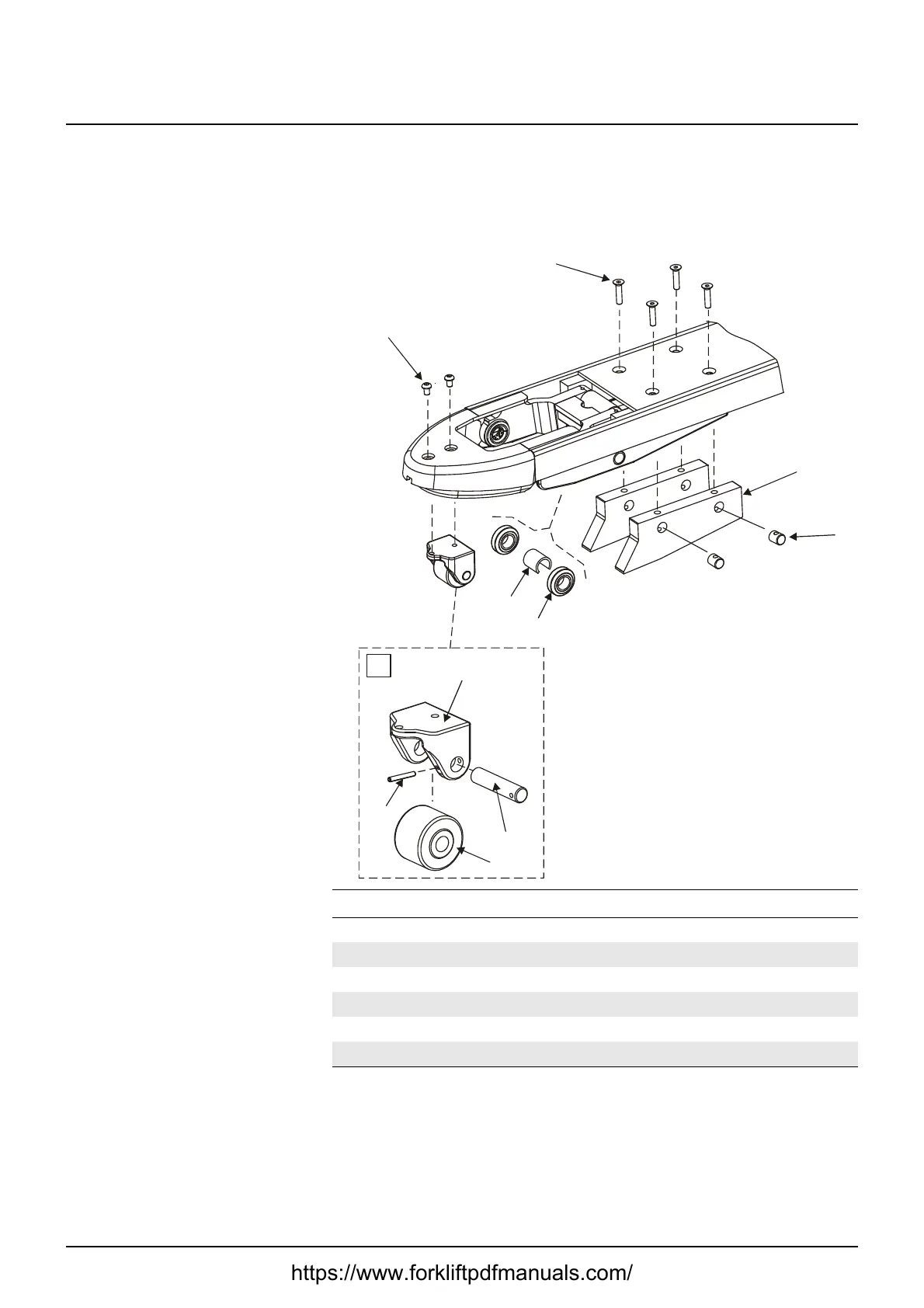

Pos. Description Pos. Description
A Screw, K6S 8x12 G Wheel, assy
B Screw, MF6S 8x35 H Wheel bracket
C Sleeve I Shaft
D Climber wheels J Wheels
E Slide pad K Spring pin
F Lock nut M8
A
B
C
D
E
F
G
H
I
J
K
