© Cesab 16 – 11 T Code(s): 841, 842, 843
Repair manual: Mast C7000 Model(s): S210, S212, S212S, S212L, S214, S214L, S220D
Publication Number: 7588857-040 Date: 2018-05-01 Applies from serial number: 6384351-
16.3.6 Adjustment
The lifting chains must be adjusted at regular periods due to stretching. This
is to be done when other service work with chains is performed.
The lock nuts on the lifting chains are to be tightened with 50 Nm (+12.5 Nm
/ -5 Nm). .

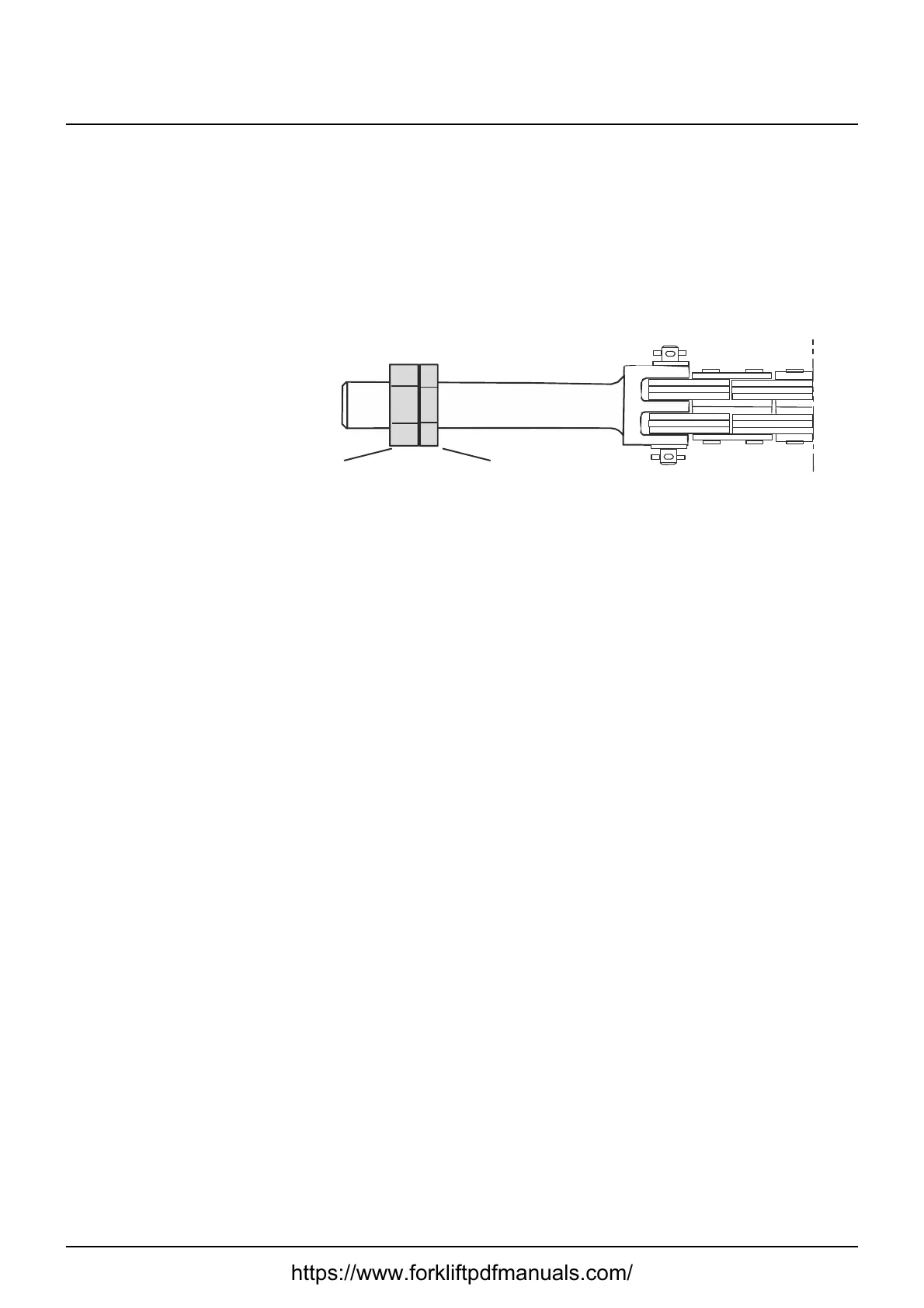

1. Make sure that the thinner nut (b) is placed closest to the chain fitting.
2. Use a fixed spanner and a torque wrench set to 50 Nm to ensure the
correct torque.
Using the main lifting chains, the mast guides must be adjusted so that the
bottom part of the mast is level.
.
ba
