Repair manual: Drive gear 2550 Model(s): S210, S212, S212S, S212L, S214, S214L, S220D

Publication Number: 7588857-040 Date: 2018-05-01 Applies from serial number: 6384351-

Fitting the seal

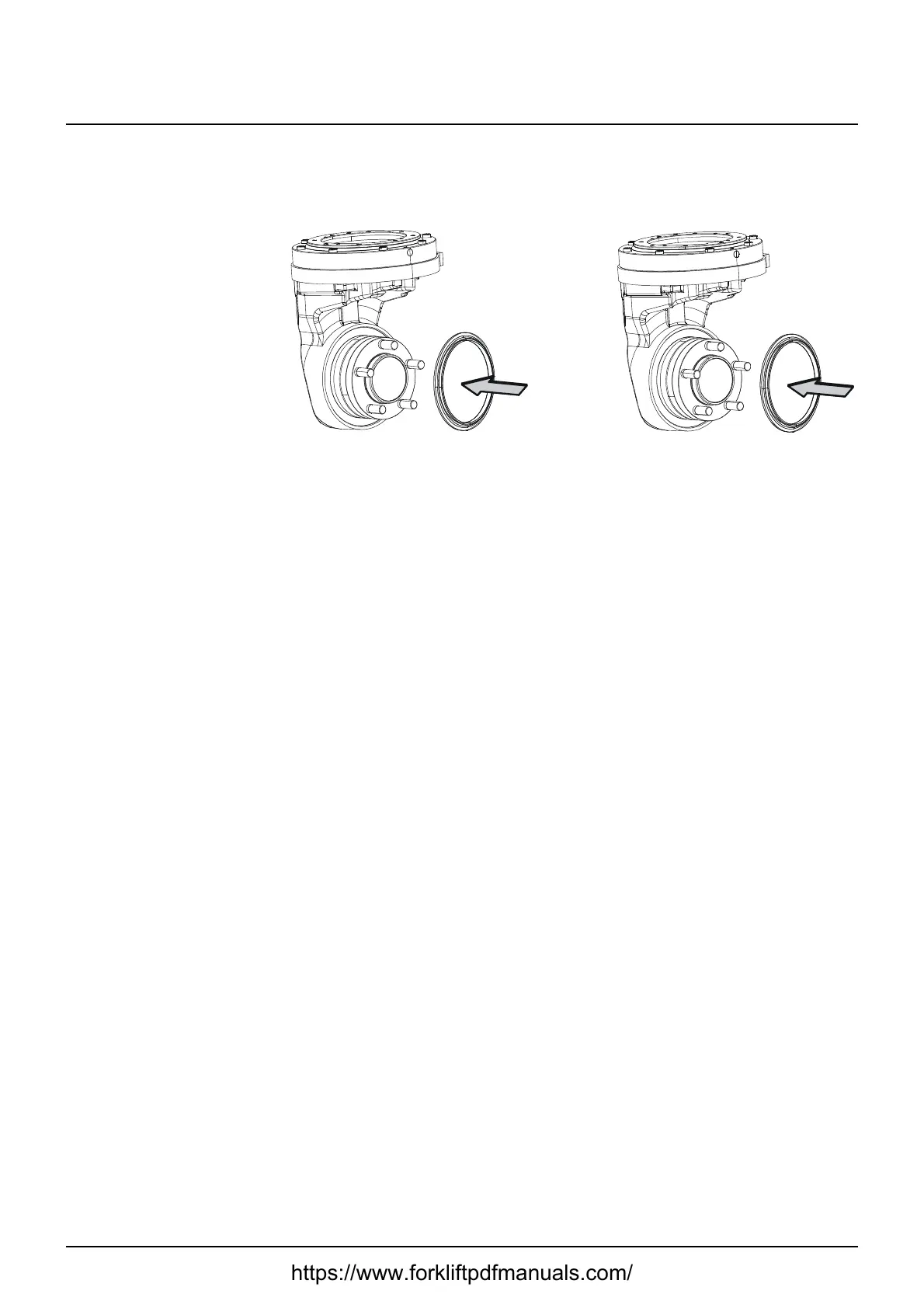

1: Fit a new seal. Tap lightly to get it into the right position.

2: Fit a new cover ring. Tap it lightly into place.

Step 1 Step 2
