4.3 Front Panel of Prometer 100-W

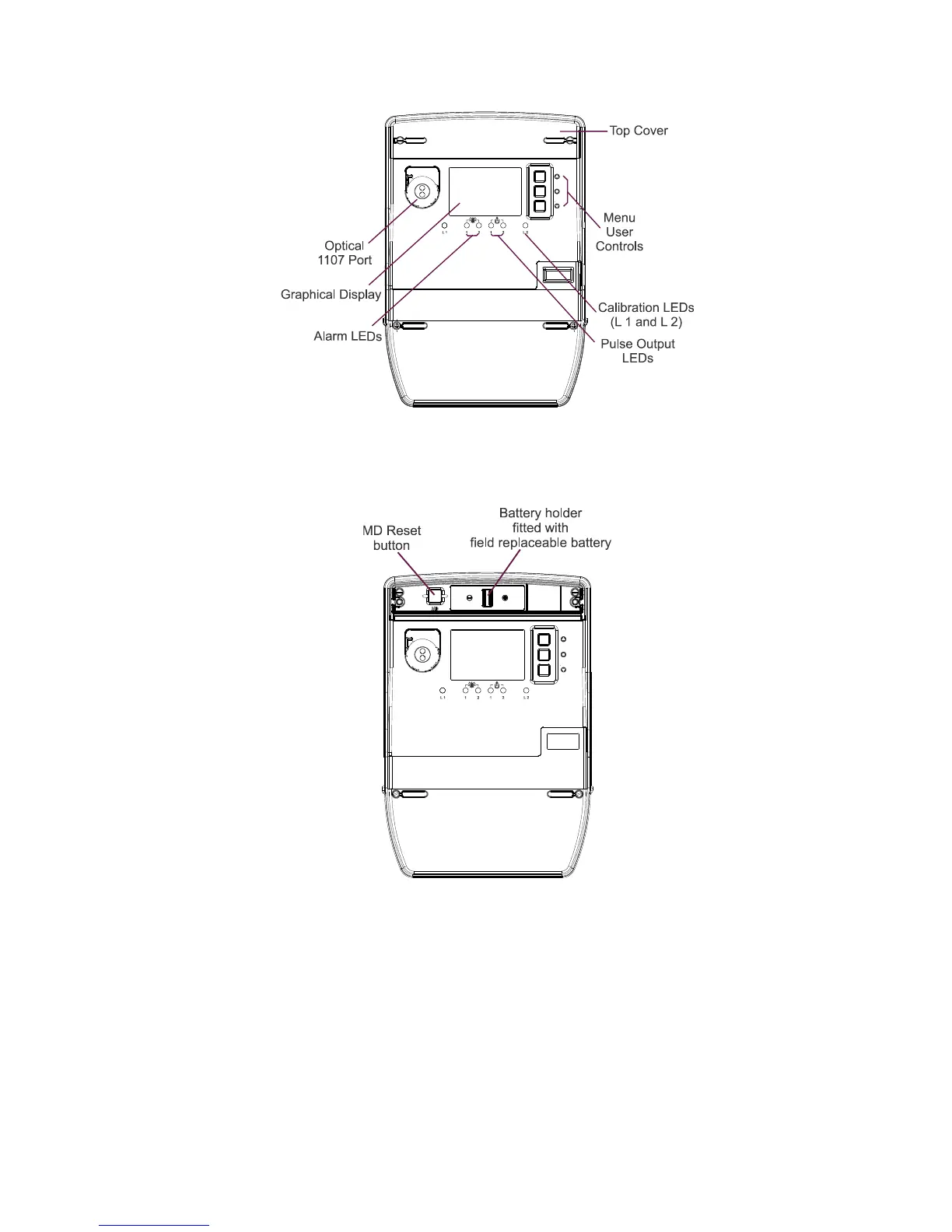

Figure 7: Front View
The front cover is made of translucent plastic with a transparent window to view the display. The top cover is
used to seal the MD (Maximum Demand) reset button and field replaceable battery. The extended terminal
block cover is secured in position by retaining screws and also has provision to seal it.
Figure 8: Top Cover Removed
