BGX501-943-R01 Prometer 100 User Manual Page 11 of 72
4.4 Connections to the Prometer 100-R

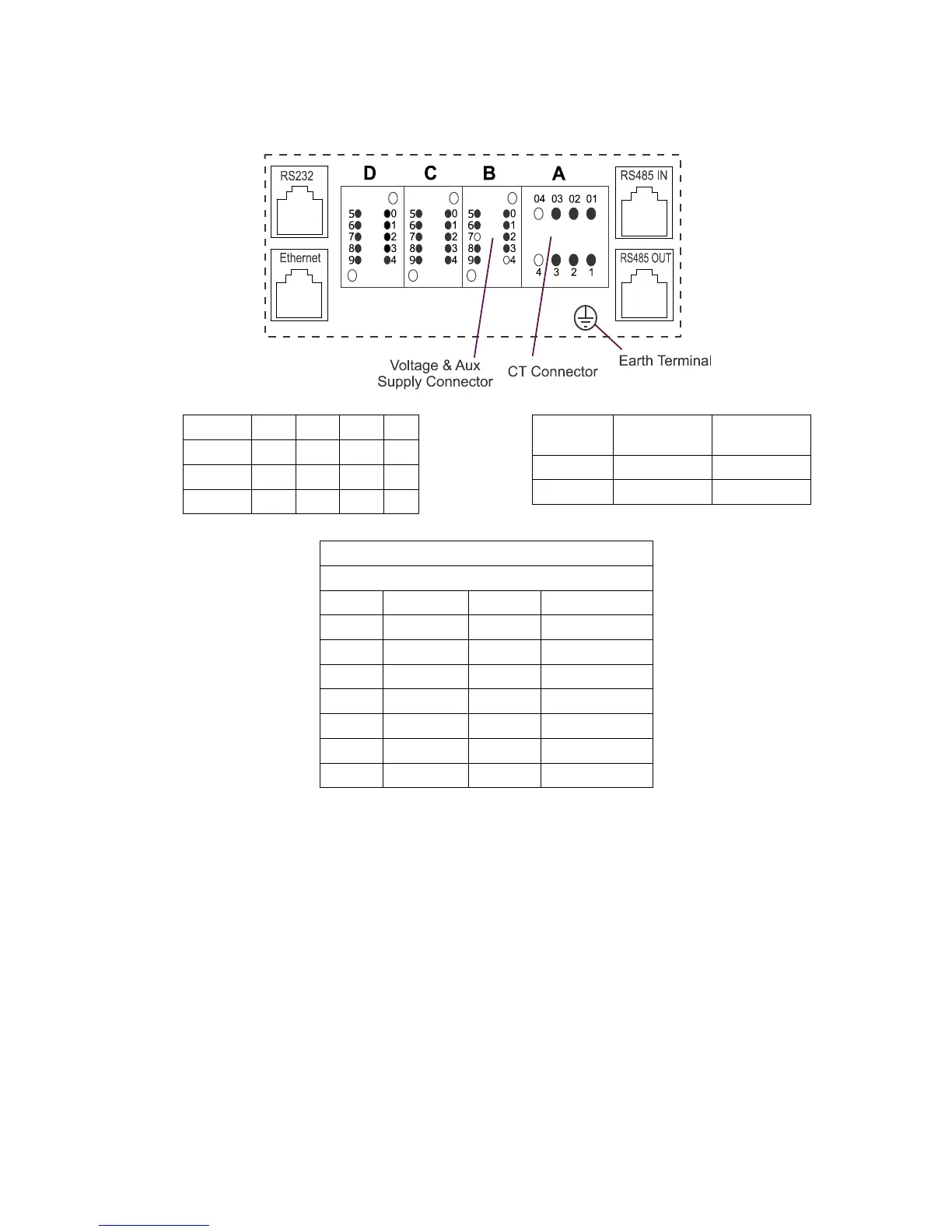

The diagram shows the rear connector with its pin diagrams for the meter. There are different options that may
be provided as per the specification agreed with the customer at the time of order.
Connect
R/L1
Y/L2
B/L3
N
CT IN
A01
A02
A03
NC
CT OUT
A1
A2
A3
NC
VT
B1
B2
B3
B0
Dual AUX
Supply
P/+ Terminal N/- Terminal
AUX1
B8
B9
AUX2
B5
B6
Digital Input/Output
8 Outputs and 4 configurable Inputs/Output
O/P 1
C0, C1
I/O 1
D3, D2
O/P 2
C1, C2
I/O 2
D9, D4
O/P 3
C4, C3
I/O 3
D7, D8
O/P 4
C4, C9
I/O 4
D5, D6
O/P 5
C7, C8
O/P 6
C7, C6
O/P 7
D0, D5
O/P 8
D0, D1
Figure 9: Rear Connector with Pin Details
