BGX501-943-R01 Prometer 100 User Manual Page 9 of 72
4.2 Front Panel of Prometer 100-R

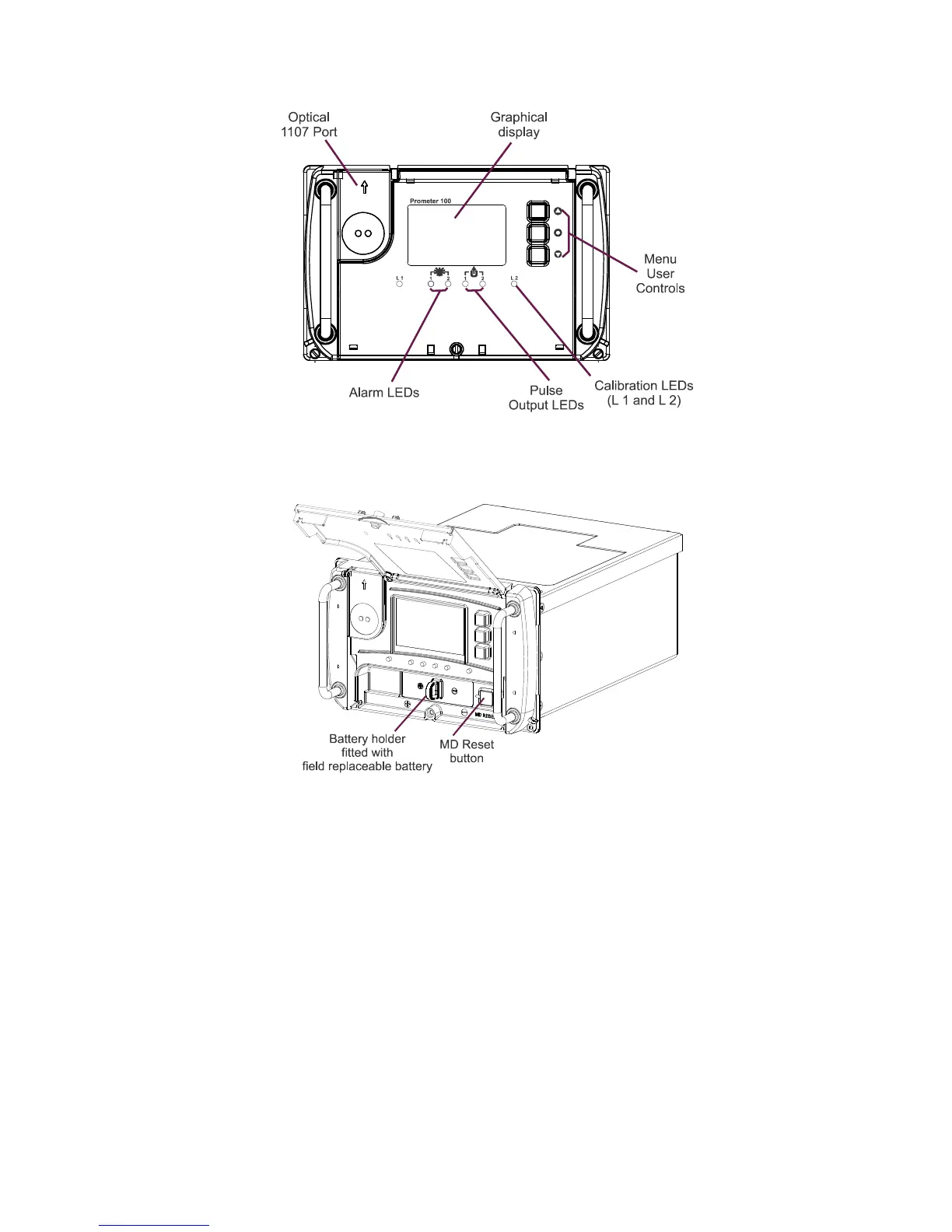

Figure 5: Front View
The front cover is made of translucent plastic with a transparent window to view the display. The cover has two
top hinges which allow the front cover to swing-up, allowing access to the sealed button and field replaceable
battery. The cover is secured in position by a retaining screw and also has provision to seal it.
Figure 6: Front Cover Opened
