BGX501-943-R01 Prometer 100 User Manual Page 53 of 72
The material declaration for Prometer 100-W is shown below:
Enclosure PC FR (Polycarbonate Fire retardant)
Meter current and voltage terminals Brass with nickel plating
Sealing screws Brass with nickel plating
Appendix C: Communication Ports
The Prometer 100 can come as fitted with the following ports (see the variant supplied as per order):
1. Optical 1107 port
2. RS232/RS485 – Left Module
3. RS232/RS485 – Right Module
4. Ethernet
Optical Communication Port
In Prometer 100-R, the optical 1107 port is protected by a sliding cover. The 1107 optical port cover can be slid
upwards in the arrow direction to the open position. The cover has a captive design and cannot be removed and
lost. There is an optional sealing point. While in Prometer 100-W, the optical 1107 port is protected by a
rotational seal.

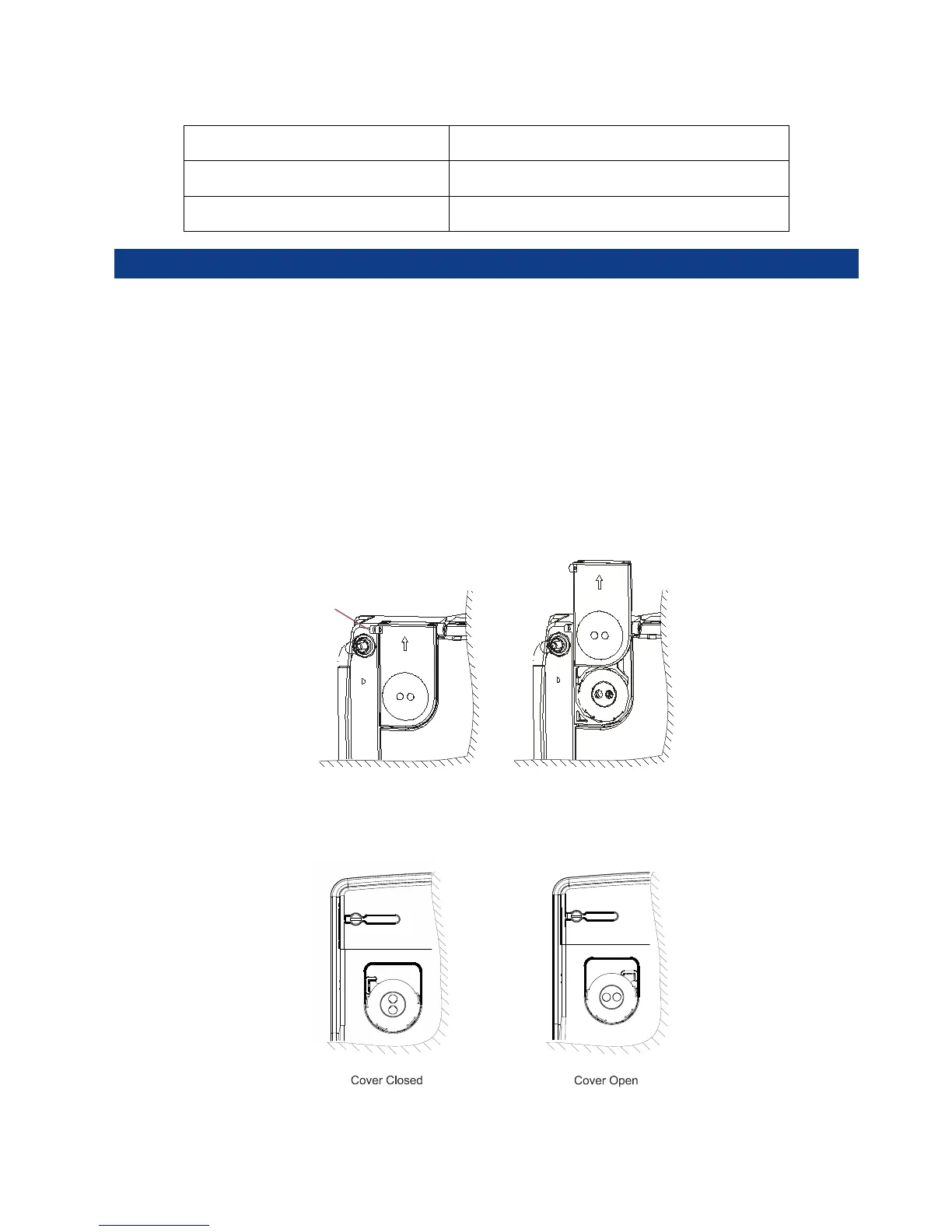

Figure 24: Optical 1107 Port in Prometer 100-R
Figure 25: Optical 1107 Port in Prometer 100-W
Cover Closed
Cover Open
Sealing Points
