Refer to tariff for Multiplier value
Note:
‘I’ stands for Import
‘E’ stands for Export
‘T’ stands for Total (Fundamental with harmonics)
‘F’ stands for Fundamental
‘R’ stands for Right
‘L’ stands for Left
‘Cfg. IO’ stands for Configurable Input/Output
User Configurable Pages

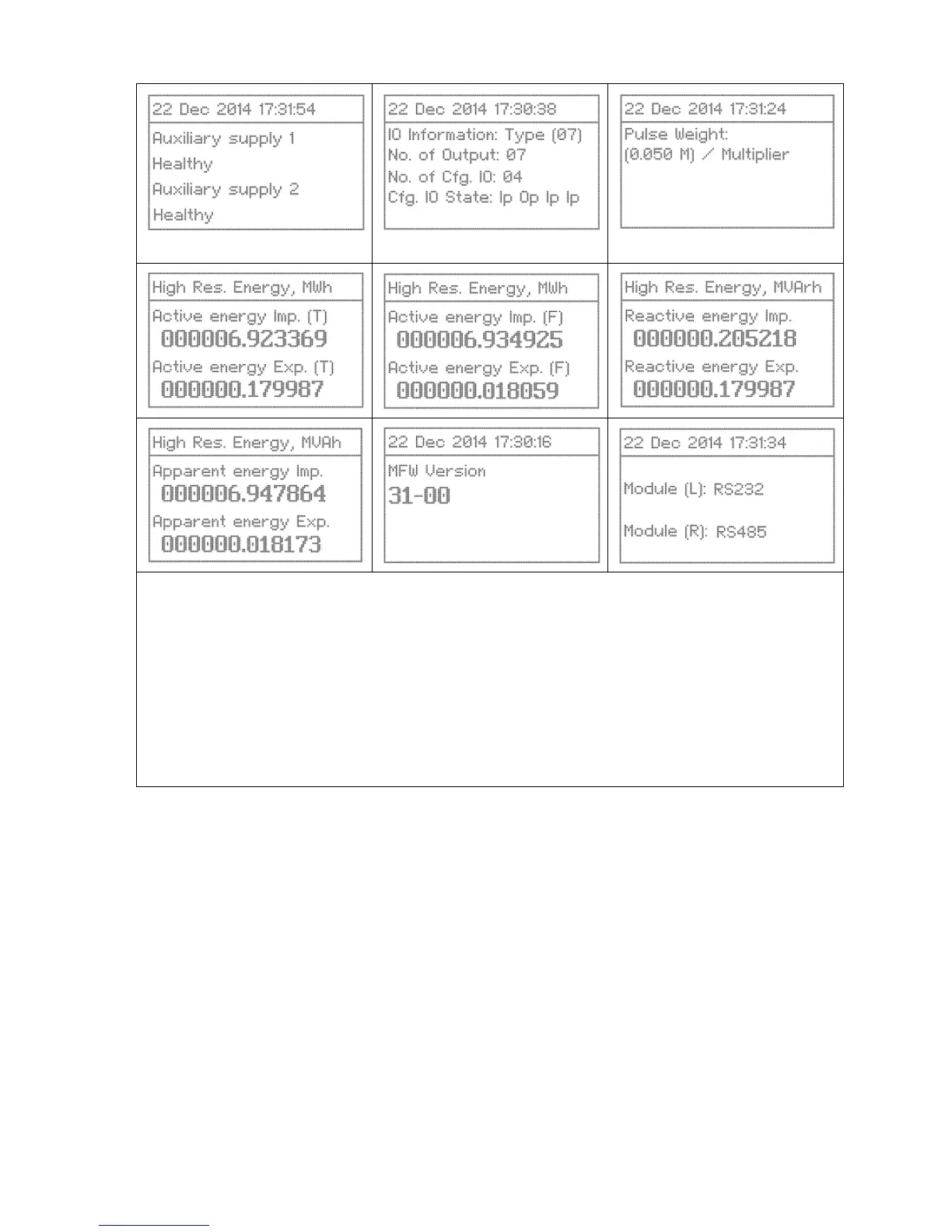

Up to seven user configurable pages can be defined complete with page title e.g. Instant Parameters, see
Figure 20 below. The page title can have a maximum of 20 alphanumeric characters. The illustrations shown
below are indications of how the pages and their respective displays will be displayed. The final pages and their
corresponding displays are dependent on the specification of your purchase order.
