Chamberlain LA400 - Connect Gate Operator (Gate 2) to Control Box

24
CONNECT THE GATE OPERATOR (GATE 2) TO THE
CONTROL BOX (MODEL LA400-S ONLY)
Before digging, contact local underground utility locating companies.

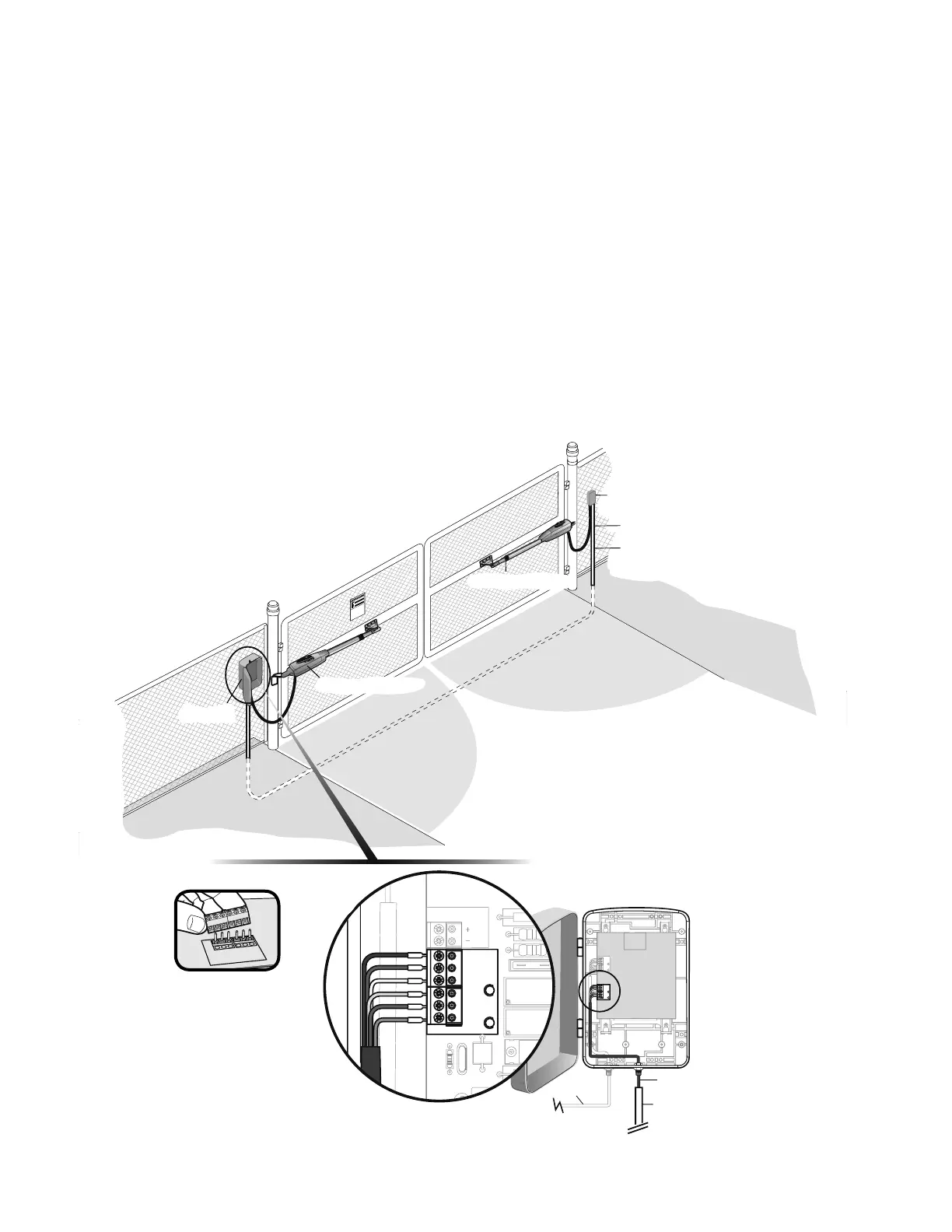

Trench across driveway to bury the extension cable. Use PVC conduit to prevent
damage to cables.
Select hole in bottom of the control box to be used for the extension cable.
Insert extension cable through watertight connector nut and through an
available watertight connector mounted in the control box.
Extend cable and wires to Gate 2 connector and connect as shown.
Secure extension cable to control box using watertight connector nut.
P1
F2
F6
U4
MAX
C13
C4
GATE 2
GATE 1
GRN
WHT
YEL
BLU
RED
BRN
GRN
WHT
YEL
BLU
RED
BRN
D15
C2R4
R9
Ø
R196
24 VAC/
SOLAR
INPUT
GATE 2
ACCESSORY
POWER
GRN
WHT
YEL
BLU
RED
BRN
10A 32V
24V
Moving Gat
e Can Cause
In
jury or Death
KEEP CLEAR!
G
ate may move at any
time without p
ri
o
r w
arn
i
n
g.
Do no
t let
children operate t
h
e g
ate o
r
play in the gat
e a
rea.
This entr
an
ce is f
or
vehicles only
Pedestr
ians must use sep
arate entran
ce
Operator
Cable
Extension Cable
PVC Conduit
Control Box
Gate Operator (Gate 1)
Gate Operator (Gate 2)
Junction Box
Extension Cable
PVC conduit at least 18" (45.7 cm)
below ground level (grade)
WIRING » CONNECT THE GATE OPERATOR (GATE 2) TO THE CONTROL BOX (MODEL LA400-S ONLY)
1
2
3
4
1
2
3
4
Terminal blocks can be
removed to simplify wiring.
