Chamberlain LA400 - Carton Inventory; Introduction; Operator Specifications

7
INTRODUCTION » OPERATOR SPECIFICATIONS + CARTON INVENTORY
CARTON INVENTORY
OPERATOR SPECIFICATIONS
Carton inventory is based on a Single Operator. For Primary (Gate 1) and Secondary (Gate 2) installation the carton inventory is doubled except for control box.
Operating Cycles: 100 per day
Main Supply (Motor): 24 Vdc
Current Consumption: 2A
Power Consumption: 48 Watts
Battery Charger Supply: 26 Vac, 29VA or 36 Vdc, 40VA
Maximum Gate Width: 16 feet (4.9 m)
Maximum Gate Weight: 550 lbs. (249.5 kg)
Protection Class: NEMA 3R
Travel Speed: 14-18 seconds for a 90° opening
Rated Operating Time: 4 Minutes
Temperature: -20° C to + 50° C
-4° F to + 122° F
Main Supply (Control)
Dedicated Circuit: 120V~/60Hz
Absorbed Power: 0.75 Watts
Protection Fuse Battery: ATC 20A

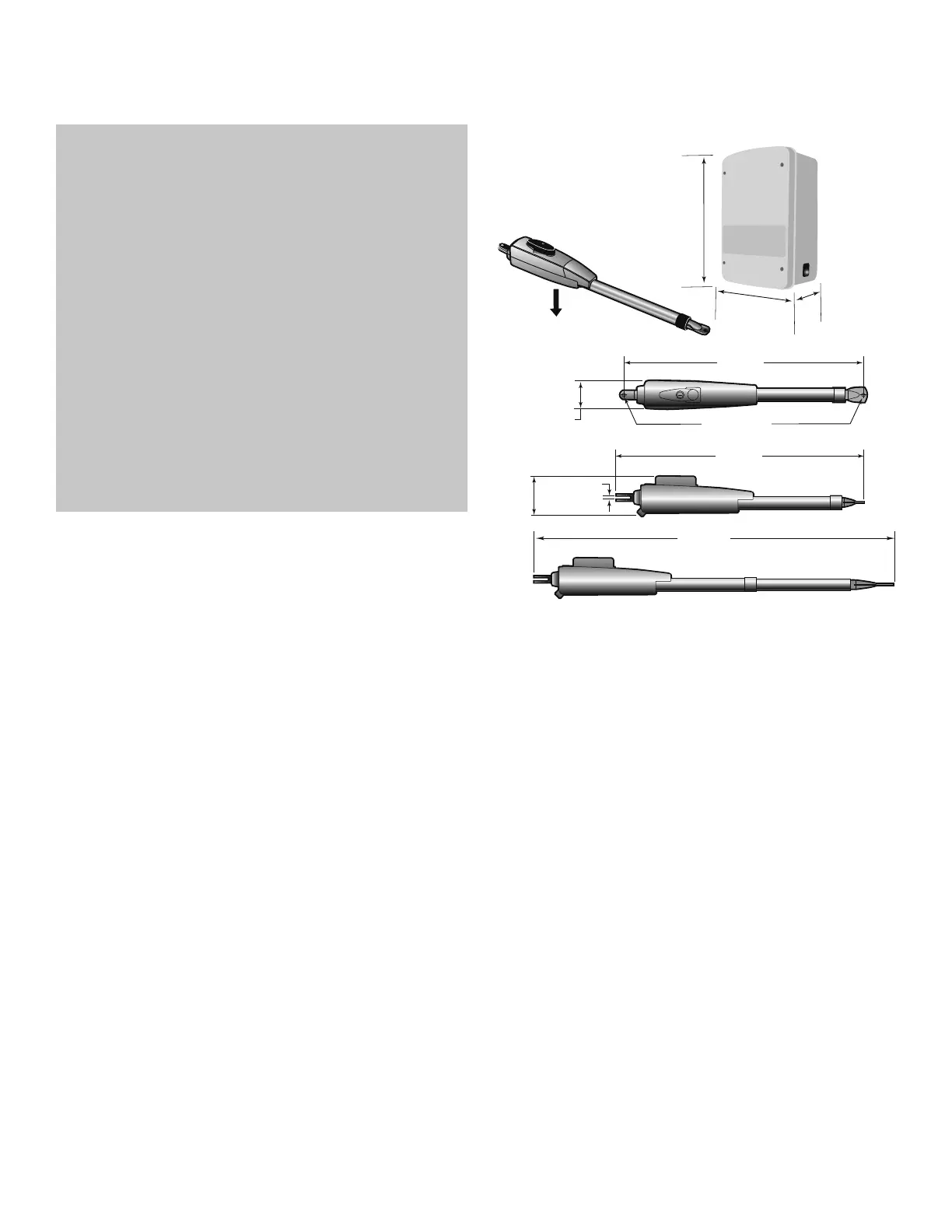

RESET
10"
(25.4 cm)
14"
(35.6 cm)
6"
(15.2 cm)
36.3"
(92.1 cm)
.475" DIA.
(1.2 cm DIA.)
4.5"
(11.2 cm)
.25"
(0.635 cm)
37.4"
(95 cm)
53.5"
(136 cm)
4"
(10.2 cm)
• Standard Control Box (1)
• Hardware Bag (1)
• Gate Operator Arm
• Motor Cable - Six Conductor, 9 feet (2.7 m)
• Warning Sign (2)
• Battery (2)
• Plug-in Transformer (1)
LA400-S (SECOND GATE OPERATOR ARM)
• Motor Cable - Six Conductor, 40 feet (12.2 m)
• Junction Box - IP56 (1)
• Phillips Head Mounting Screws (4)
• Anchors (4)
• Terminal Block - Twelve Connectors (1)
HARDWARE INVENTORY
• Post Bracket (1)
• Pull-to-Open Bracket (1)
• Hex Bolt 5/16"-18 X 1-1/2" (5)
• Square Neck Carriage Bolt 3/8"-16 X 6" (2)
• Hex Nut 3/8"-16 (2)
• Hex Nut 5/16"-18 (5)
• Flat Washer 5/16" (5)
• Flat Washer 3/8" (5)
• Lock Washer 5/16" (5)
• Lock Washer 3/8" (5)
• Gate Mounting Bracket (1)
• Hairpin Clip (2)
• Pin (2)
• Hex Bolt 3/8"-16 X 1-1/2" (1)
• Bolt 2-3/4" (2)
• Keylock Cap (1)
• Keys (2)
Weight: 13.2 lbs. (6 kg.)
