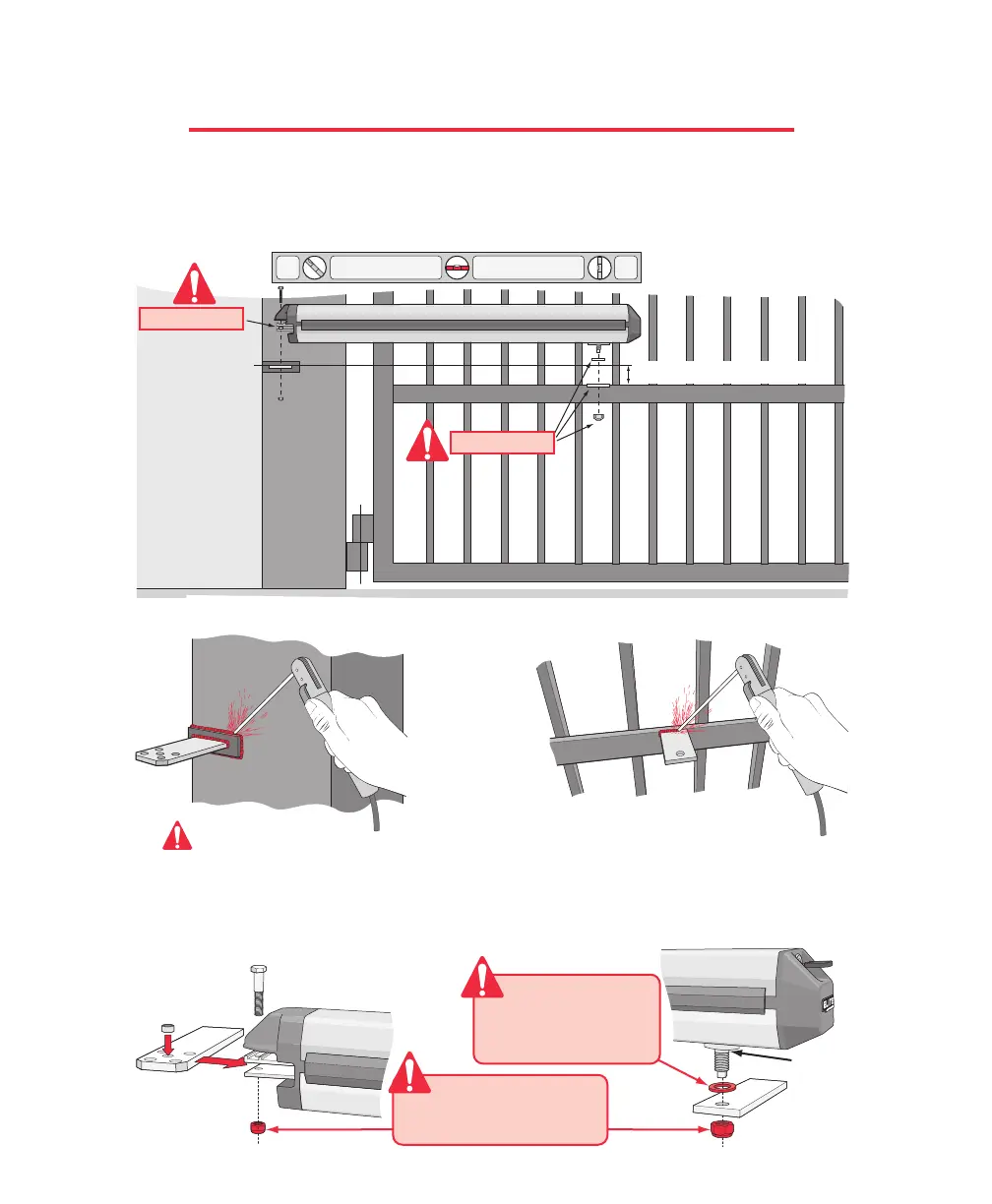

PROCEDURE FOR INSTALLATION
2.25" Vertical Height Difference
Step 4 (con't):
The gate
must
be in the closed position.
Make sure the operator is kept level
while tack
welding the front and back steel brackets and reinforcement steel plates in position. After all tack welding is
finished,
remove the operator!
Caution:
Welding the brackets with the operator attached to the gate may damage the operator.
Step 5:
With the operator removed,
completely
weld around the brackets and plates on the gate.
Step 6:
Remove the nut, bolt and bushing from
the
back
operator bracket. Place the metal bushing
in the hole of the steel bracket that will be used.
Secure operator with the nut and bolt (See Below).
Step 7:
Remove the nut from the traveler carriage at
the
front
of the operator. Secure operator to the front
bracket with the washer and nut (See Below).
Metal
Bushing
Traveler
Carriage
Front Bracket
Back
Bracket
Mounting Instructions
Refer to
Step 7
Refer to
Step 6
Important:
These nuts
MUST
be tight or
unit will not work correctly!
Important:
Washer
Must
be placed
between traveler carriage
and
TOP
of front bracket.
12
