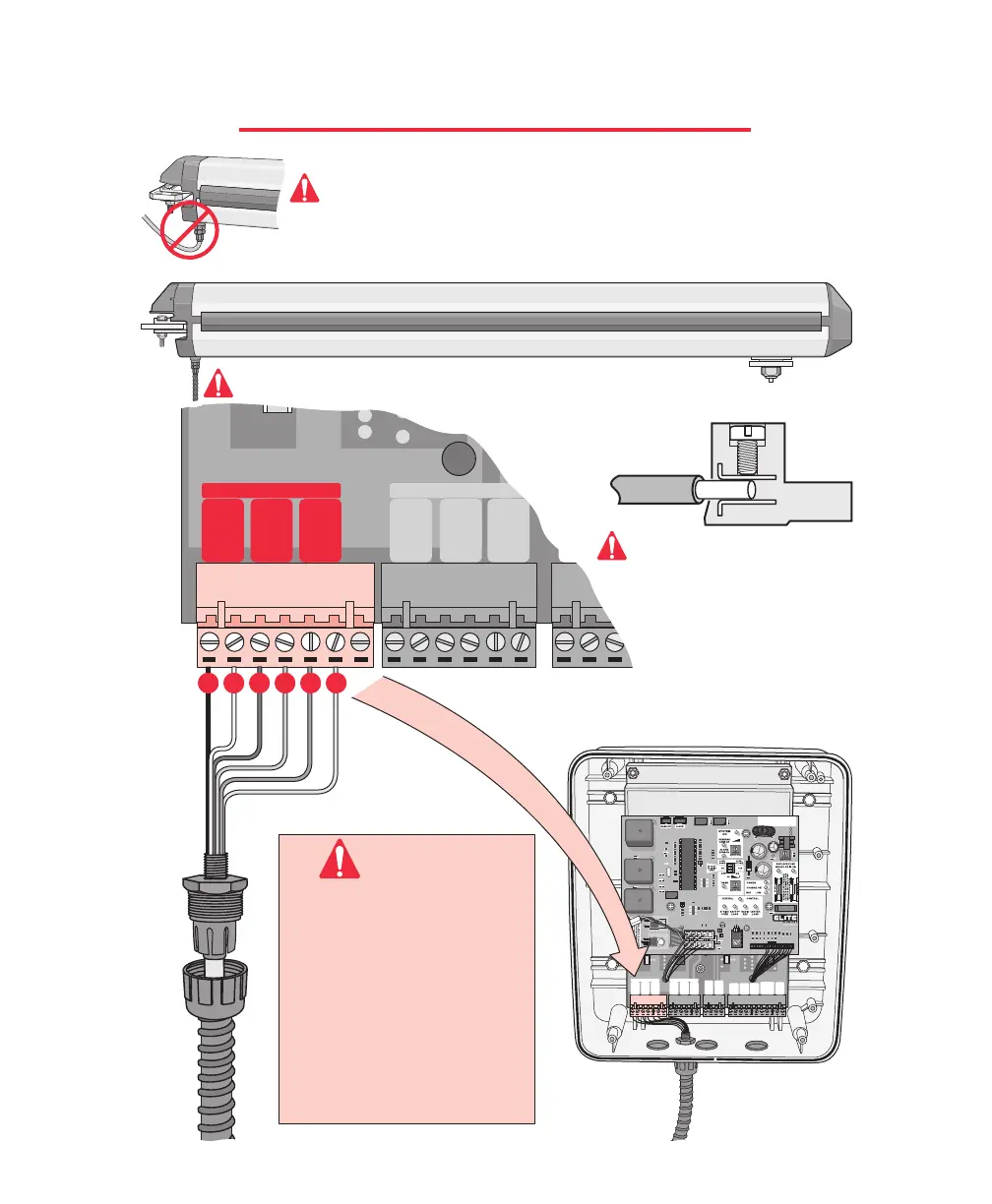

Chamberlain MIRACLE-ONE - WIRING 1 OPERATOR TO BOARD

Install the Conduit (supplied) to
secure the wire to the Miracle 1
Control Board Box.
If the conduit can not be used, Install
a dedicated water tight conduit for 6
wires. DO NOT run AC wire in same
conduit as 6 wires!
More than 20 ft run, you MUST use
Shielded Wire for the blue and
green lines. Shield must be
grounded .
Important:
BLACK
MOTOR
WHITE RED
BRAKE
SINGLE OR MASTER ONLY SECOND ONLY
BROWN BLUE
LIMITS
GREEN BLACK
MOTOR
WHITE RED
BRAKE
BROWN BLUE
LIMITS
GREEN CENTER LOOP +24 VAC INPUT SAFETY LOOP EXIT LOOP BURGLAR ALARM INPUT GROUND RADIO +24 VOLT UL SENSOR
LAKE FOREST, CALIFORNIA
www.eliteaccess.com
REV A
MIRACLE SURGE PROTECTION
123456 7 8 9101112 13141516 1718 19 20 21 22 23 24 25 26 27
®
WIRING 1 OPERATOR TO BOARD
8
BLACK
MOTOR
WHITE RED
BRAKE
SINGLE OR MASTER ONLY SECOND ONLY
BROWN BLUE
LIMITS
GREEN BLACK
MOTOR
WHITE RED
BRAKE
BROWN BLUE
LIMITS
GREEN CENTER LOOP +24 VAC INPUT SAFETY LOOP STRIKE INPUT BURGLAR ALARM INPUT GROUND RADIO +24 VOLT UL SENSOR
LAKE FOREST, CALIFORNIA
www.eliteaccess.com
REV A
MIRACLE SURGE PROTECTION
123456 78 9101112 13141516 1718 19 20 21 22 23 24 25 26 27
®
Black White Red Brown Blue Green
1 2 3 4 5 6
Removable Terminal
Connector
Supplied
Conduit
Removable
Terminal
Connector
Caution: Do Not over-bend the cord from the operator. Doing this will cause the
wires to eventually break.
Caution: Do Not use wire less than 16 gauge up to 200 Ft.
Caution: Make sure BARE WIRE
makes good contact inside
removable terminal connectors.
DO NOT let wire insulation
interfere with connection.
Wire
16
