BLACK
MOTOR
WHITE
RED
BRAKE
SINGLE OR MASTER ONLY Second ONLY
BROWN
BLUE
LIMITS
GREEN
BLACK
MOTOR
WHITE
RED
BRAKE
BROWN
BLUE
LIMITS
GREEN
CENTER
LOOP
SAFETY
LOOP
EXIT
LOOP
BURGLAR
ALARM
INPUT
GROUND
UL SENSOR
LAKE FOREST, CALIFORNIA
www.eliteaccess.com
REV A

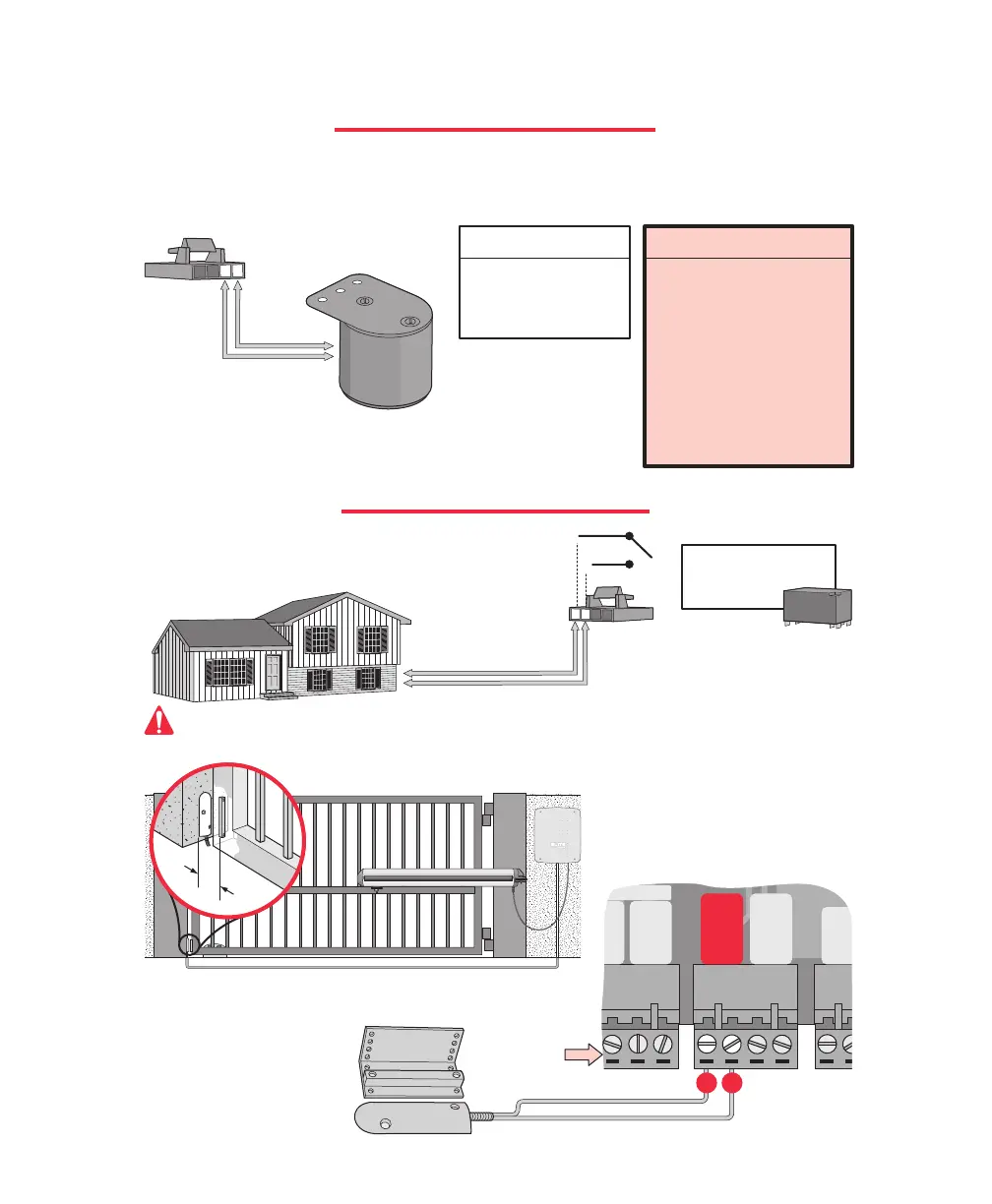

MIRACLE SURGE PROTECTION
123456 78 9101112 13 14 15 16 17 18 19 20 21 22 23
®
Burglar Alarm
Plug Connector
N.O.
N.O.
COM
COM
1
2
3
4
UL Alarm Plug
Connector
UL Audio Alarm
1
2
3
4
Proximity Switch
(Normally Open)
If the gate is forced open without a
valid command, the proximity switch
will be activated, causing the
house
alarm
to activate.
This UL alarm is required per UL-325. It will go off after
2 consecutive events
on reverse sensor or UL sensor.
The UL alarm will sound for a period of
5 minutes
or until a new command is received by the
Strike Input
Command ONLY.
Strike Input
#21 & #22
Relay Contact Rating
0.5 A - 125 VAC
1 A - 24 VDC
Use the harness provided
with the unit to make your
connections to these alarm
outputs.
1
2
UL AUDIO ALARM
BURGLAR ALARM
The control board provides a relay with a
normally open contact to interface with a
house alarm.
Elite Part # A PRS
N.O.
Com
Proximity Switch
Normally Open
Important:
When interfacing with a house burglar alarm you must install positive stops at the gate closed position.
13 14
Removable
Terminal
Connectors
2"
Max.
WILL reset alarm!
WILL NOT reset alarm!
Center Loop
#17 & #18
Safety Loop
#19 & #20
Radio Receiver
#23 & #24
31
