BLACK
MOTOR
WHITE
RED
BRAKE
SINGLE OR MASTER ONLY SLAVE ONLY
BROWN
BLUE
LIMITS
GREEN
BLACK
MOTOR
WHITE
RED
BRAKE
BROWN
BLUE
LIMITS
GREEN
CENTER
LOOP
+24 VAC
INPUT
SAFETY
LOOP
STRIKE
INPUT
BURGLAR
ALARM
INPUT
GROUND
RADIO
+24 VOLT
UL SENSOR
REV A
123456 789101112 13141516 17181920212223242526 27
......it must be “ON”.
After that, check the “Charge OK” LED......
If you see these LED's “ON”, replace fuse.

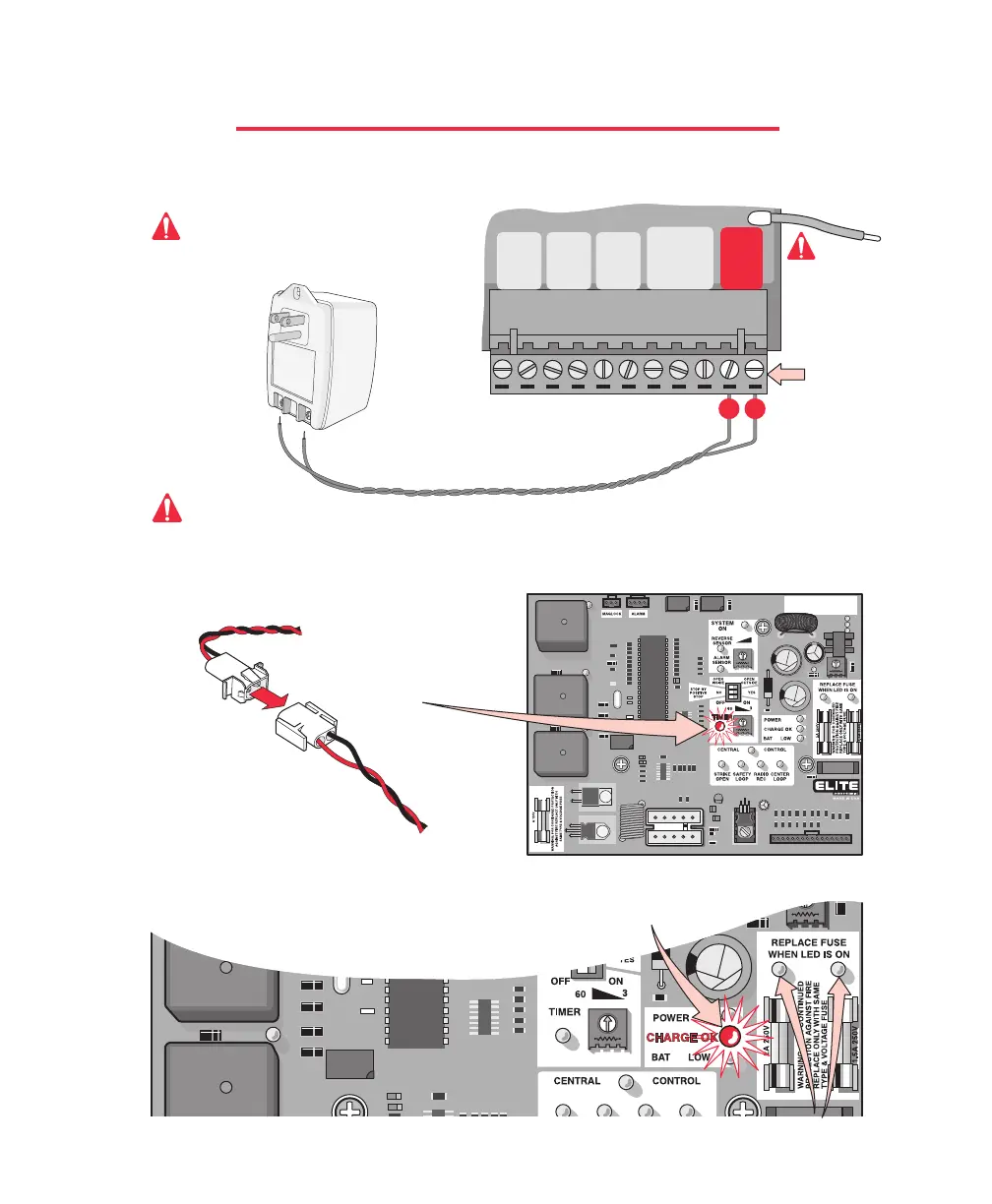

CONNECTING POWER SUPPLY
Connect Elite's plug-in transformer (24 VAC Included) to Surge Suppressor board, terminals #26 and #27. Polarity
does not matter. Use low voltage direct burial landscape lighting cable, 14 gauge/300 watt not to exceed 500 ft or
10 AWG up to 1000 ft. The transformer must plug into 115 VAC.
Low Voltage Wire
Caution: Use low voltage direct burial landscape lighting cable – 14 gauge/300 watt not exceeding 500 ft.
For longer than 500 ft, use 10 AWG wire up to 1000 ft.
24 VAC
40 VA
To
115
VAC
Plug in the transformer and connect the battery cable plug into the surge suppressor J1 battery plug. The “Timer”
LED will flash
“3 times”.
Battery
Cable Plug
Blink!
Blink!
Blink!
From Surge Suppressor J1 Plug
8
Plug-in Transformer
26 27
Removable
Terminal
Connectors
The Miracle-One MUST be properly grounded.
Please refer to the
“Earth Ground Rod
Installation”
(Page 19).
Green
Ground
Wire
Polarity does
not matter
20
To Next Page
