Chamberlain MIRACLE-ONE - Surge Suppressor Board Description

29
BLACK
MOTOR
WHITE RED
BRAKE
SINGLE OR MASTER ONLY SECOND ONLY
BROWN BLUE
LIMITS
GREEN BLACK
MOTOR
WHITE RED
BRAKE
BROWN BLUE
LIMITS
GREEN CENTER LOOP +24 VAC INPUT SAFETY LOOP STRIKE INPUT BURGLAR ALARM INPUT GROUND RADIO +24 VOLT UL SENSOR
LAKE FOREST, CALIFORNIA
www.eliteaccess.com
REV A
MIRACLE SURGE PROTECTION
123 456 78 9101112 13141516 1718 19 20 21 22 23 24 25 26 27
®

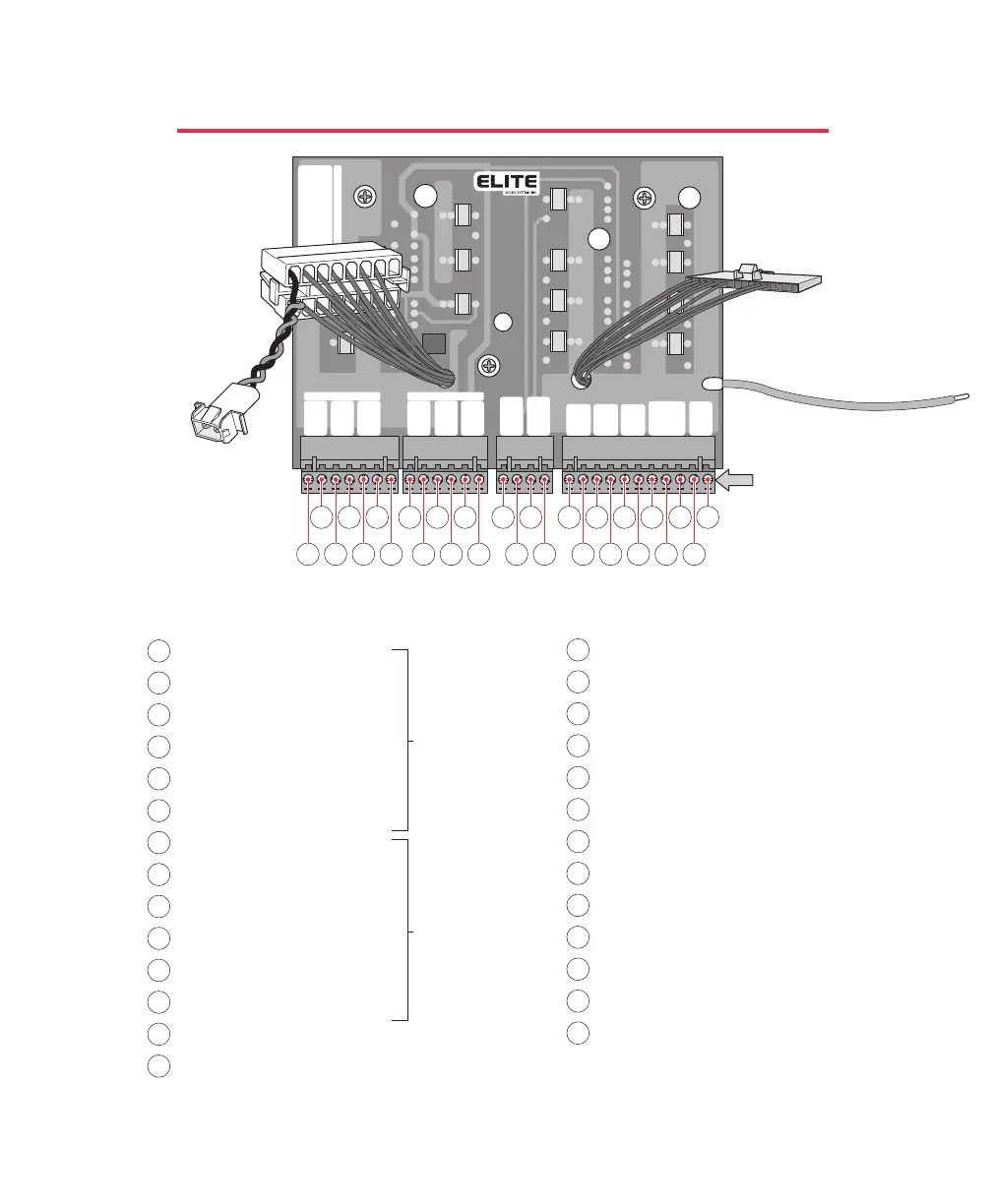

SURGE SUPPRESSOR BOARD DESCRIPTION
1
2 4 6 7 9 11 13 15 17 19 21 23 25 27
3 5 - 8 10 12 14 16 18 20 22 24 26
Black Wire from Operator (Power)
White Wire from Operator (Power)
Red Wire from Operator (Brake)
Brown Wire from Operator (Brake)
Blue Wire from Operator (Limits)
Green Wire from Operator (Limits)
Black Wire from Operator (Power)
White Wire from Operator (Power)
Red Wire f
rom Operator (Brake)
Brown Wire from Operator (Brake)
Blue Wire from Operator (Limits)
Green Wire from Operator (Limits)
Burglar Alarm Input (Normally Open)
Burglar Alarm Input (Common)
UL Sensor Input (Normally Open)
UL Sensor I
nput (Common)
Center Loop (Normally Open)
Center Loop (Common)
Safety Loop (Normally Open)
Safety Loop (Common)
Strike Input (Normally Open)
Strike Input (Common)
Ground (Common)
Radio Relay Input
Radio Input (+ 24 Volt DC)
AC Power Input +24 VAC (Polarity does not matter)
AC Power Input +24 VAC (Polarity does not matter)
1
14
2
3
4
5
6
7
8
9
10
11
12
13
15
16
17
18
19
20
21
22
23
24
25
26
27
Single or Master
Operator Only
Second Operator
Only
Green Ground Wire
Master/Second J1
Surge Suppressor
Plug Shown
J3 Plug
Battery
Plug
Removable Terminal Connectors
