N.O.
Contact Rating
125 VAC - 0.5 A
30 VDC - 2 A
N.C.
Power
for
Maglock
Power
for
Solenoid
Common
Common

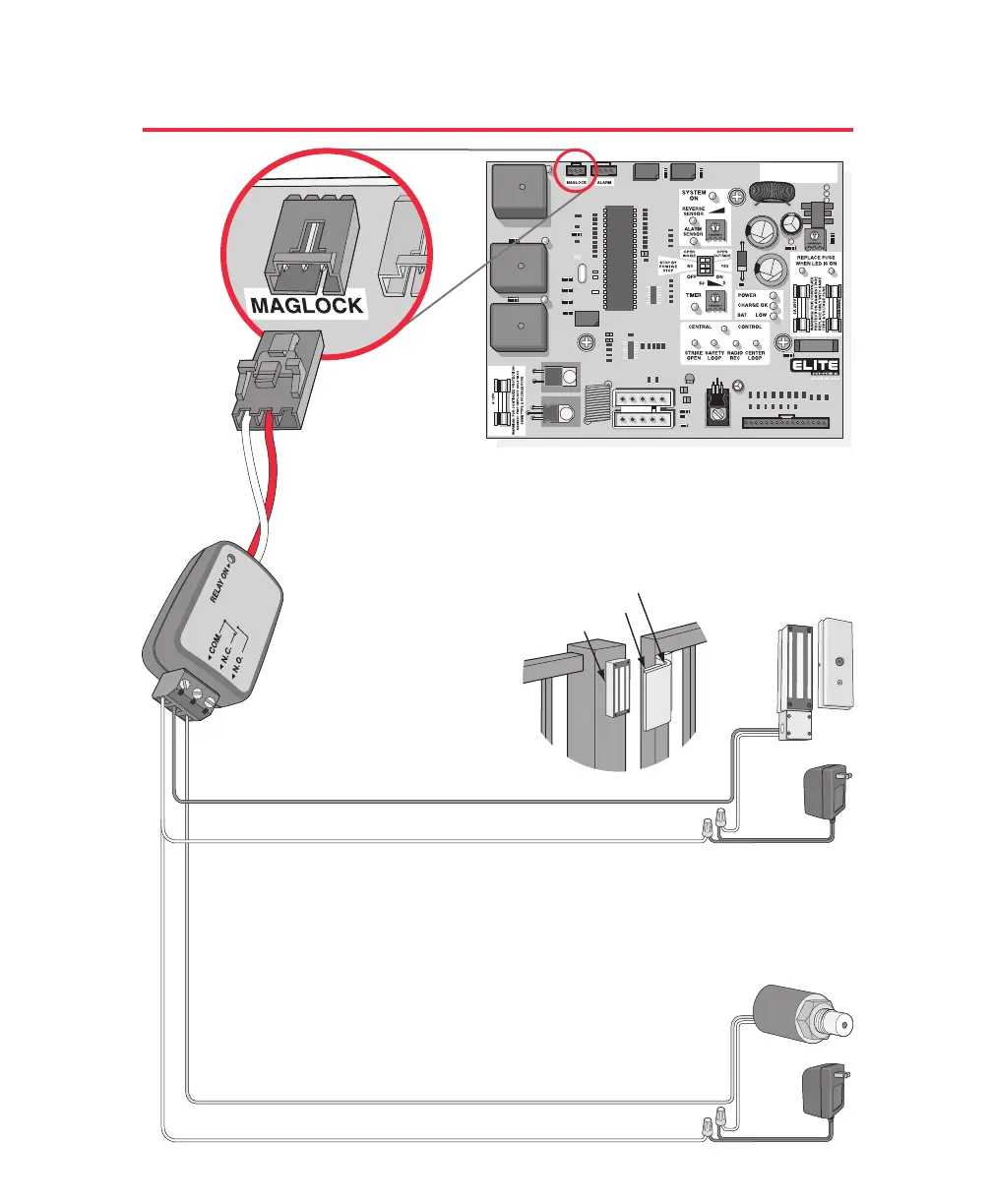

Control Board
...Solenoid Lock Wiring
...Magnetic Lock Wiring
GATE OPENING “ INSIDE” INSTALLATION OF...
1. Ground- Plug in white wire to open gate Inside
2. Power - Always plugged in (red wire)
1
2
3
Gate
Custom Bracket
Magnetic Lock
Magnetic Lock Plate
Fence
Elite Part # Q240 MAU
Elite Part # A MG 1300
8
Note:
The optional relay module (Elite Part # Q240 MAU),
allowing interface with external devices, is available,
only from Chamberlain Elite.
32
