Chamberlain MIRACLE-ONE - WIRING 2 OPERATORS MASTER; SECOND

Supplied Conduit
Supplied
BLACK
MOTOR
WHITE RED
BRAKE
SINGLE OR MASTER ONLY SECOND ONLY
BROWN BLUE
LIMITS
GREEN BLACK
MOTOR
WHITE RED
BRAKE
BROWN BLUE
LIMITS
GREEN CENTER LOOP +24 VAC INPUT SAFETY LOOP EXIT LOOP BURGLAR ALARM INPUT GROUND RADIO +24 VOLT UL SENSOR
LAKE FOREST, CALIFORNIA
www.eliteaccess.com
REV A
MIRACLE SURGE PROTECTION
123456 78 9101112 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27
®
Black White Red Brown Blue Green Black White Red Brown Blue Green Shield

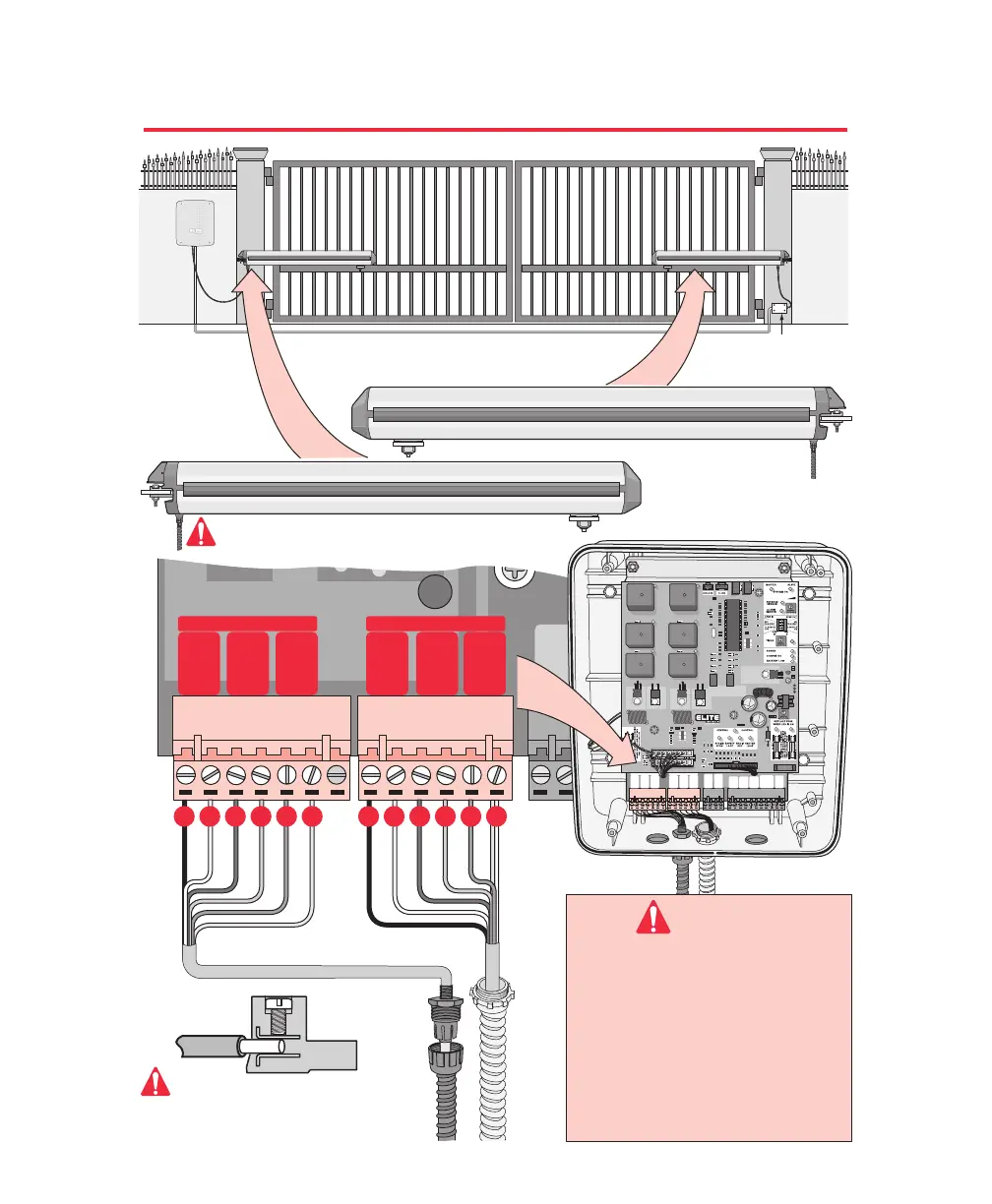

WIRING 2 OPERATORS MASTER / SECOND
6 Wires, 16 AWG from operator in dedicated water tight
conduit. DO NOT run AC lines in same conduit!
Water Tight
J-Box Kit
Elite # K55-09853
Master
Second
Operator 2 (Second)
Operator 1 (Master)
BLACK
MOTOR
WHITE RED
BRAKE
SINGLE OR MASTER ONLY SECOND ONLY
BROWN BLUE
LIMITS
GREEN BLACK
MOTOR
WHITE RED
BRAKE
BROWN BLUE
LIMITS
GREEN CENTER LOOP +24 VAC INPUT SAFETY LOOP STRIKE INPUT BURGLAR ALARM INPUT GROUND RADIO +24 VOLT UL SENSOR
LAKE FOREST, CALIFORNIA
www.eliteaccess.com
REV A
MIRACLE SURGE PROTECTION
123456 78 9101112 13141516 1718 19 20 21 22 23 24 25 26 27
®
1 2 3 4 5 6 7 8 9 10 11 12
Removable Terminal Connectors
Install the Conduit (supplied) to secure
the Master Operator to the Control Board
Box.
Install a dedicated water tight conduit
for the Second Operator. DO NOT run AC
wire in same conduit as 6 wires!
More than 20 ft run, you MUST use
Shielded Wire for the blue and green
lines. Shield must be grounded .
Important:
Caution: Do Not use wire less than 16 gauge
up to 200 Ft.
Removable
Terminal
Connector
Water
Tight
Conduit
(Not
Supplied)
Caution: Make sure BARE WIRE
makes good contact inside removable
terminal connectors. DO NOT let wire
insulation interfere with connection.
Wire
17
