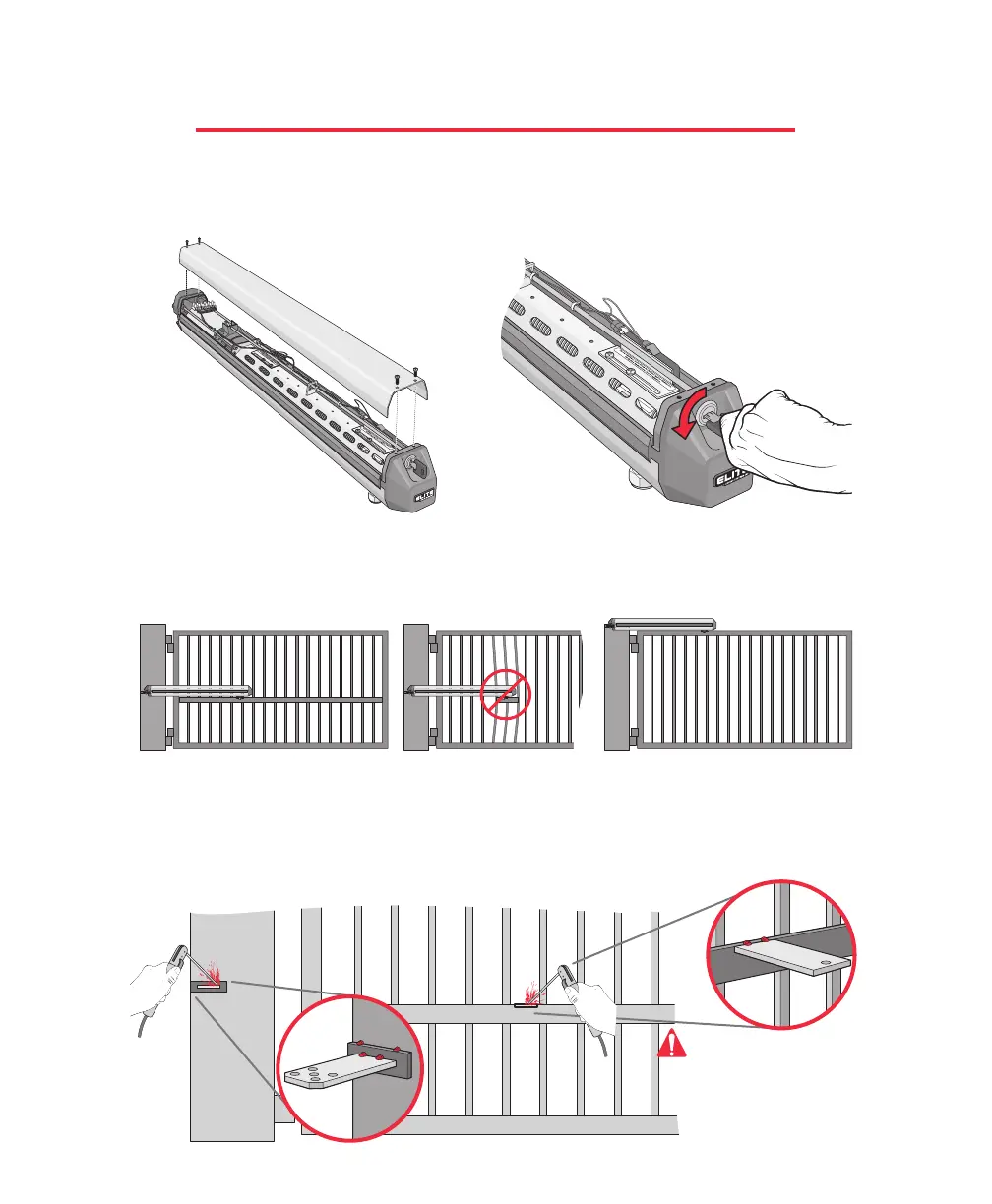

PROCEDURE FOR INSTALLATION
Step 3:
Position the Miracle 1
horizontally level
on the closed gate, where desired. For strength purposes, the
front steel bracket
must
be attached in an area that can withstand
heavy forces
. Additional reinforcement steel
plates may be necessary for mounting.
Step 4:
Position and level the operator brackets and reinforcement plates.
(See next page)
. Tack weld brackets
and plates in position.
Step 1:
Remove the 4 screws and lift the
operator cover off.
Step 2:
Release the mechanical lock by turning the
key to the horizontal position.
If using a gate crossbar, weld bar across
all
pickets.
Do not
weld
the crossbar on a few pickets, or they will bend.
The Miracle 1 can be mounted on top
of the gate frame.
Important:
Tack weld the front steel
bracket at the top of the
crossbar, so the operator
will not hit the crossbar
when in motion.
Mounting Instructions
11
