Chamberlain MIRACLE-ONE - Page 36

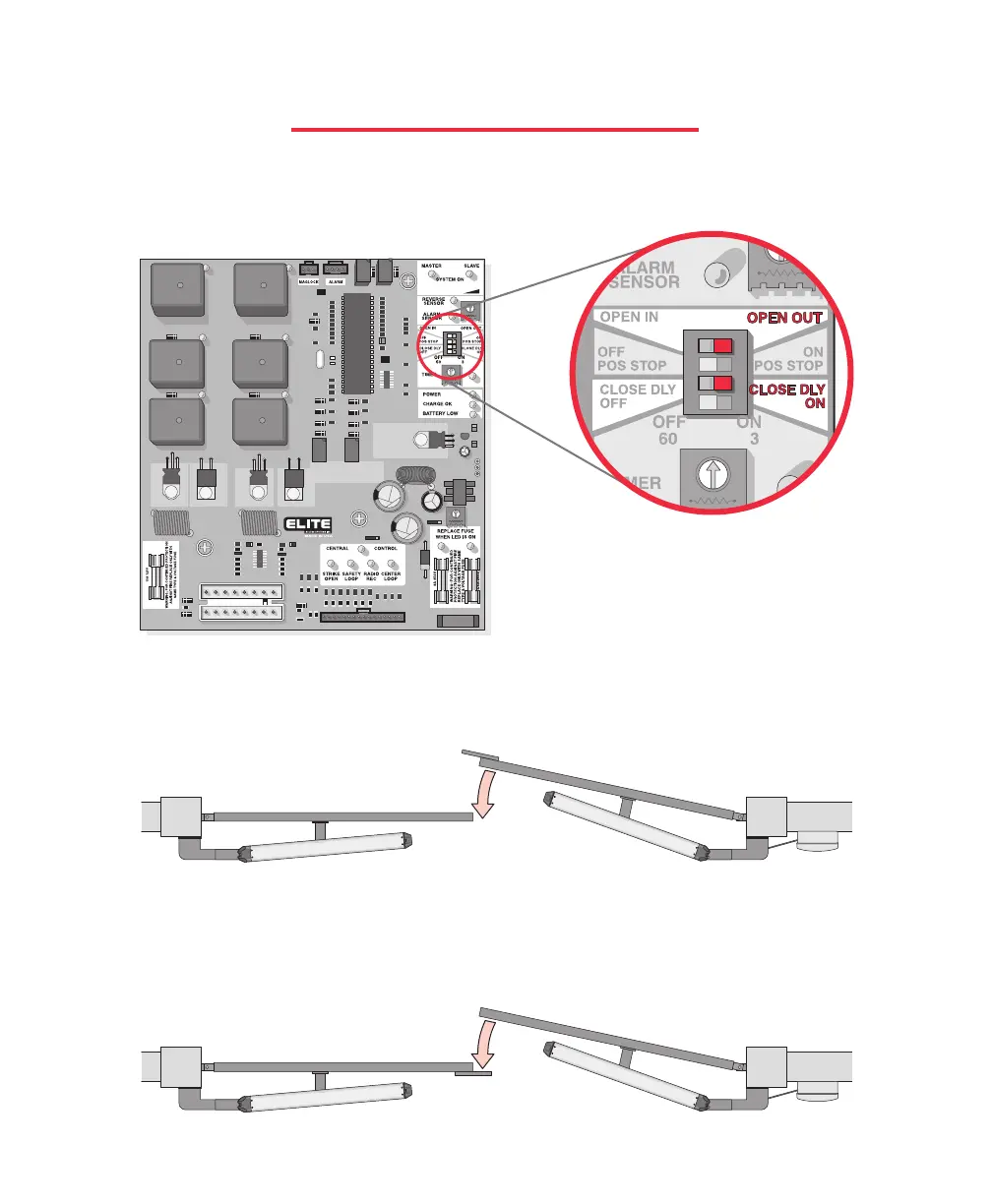

CLOSE DELAY OPTION
Master/Second Only
This option is to be used when there is a Master/Second installation with overlapping gates.
Opening “Outside” and Overlap to the “Outside”...
Master operator delays to close the gate.
Master operator delays to close the gate.
Inside Property
Opening “Outside” and Overlap to the “Inside”...
Inside Property
Second
Master
Second
Master
35
