The belt tension must be adjusted between the minimum, maximum and initial
values (1.3 x Maximum) listed in the table below:
Model Minimum Maximum Initial
Ci 40 1.3 kg 1.8 kg 2.3 kg
Ci 55 1.4 kg 2.0 kg 2.6 kg
Ci 75 1.5 kg 2.1 kg 2.7 kg
Ci 110 1.9 kg 2.7 kg 3.6 kg
New belts should be initially tensioned to 1.3 times the maximum running
tension settings outlined above. Belt tension needs to be adjusted five
minutes after these belts are fitted and the compressor is run, then again ten
minutes later. This will ensure that the belts have completed their initial
“stretch”. After this first fifteen minutes of operation, the belts should be
correctly tensioned to the table above.

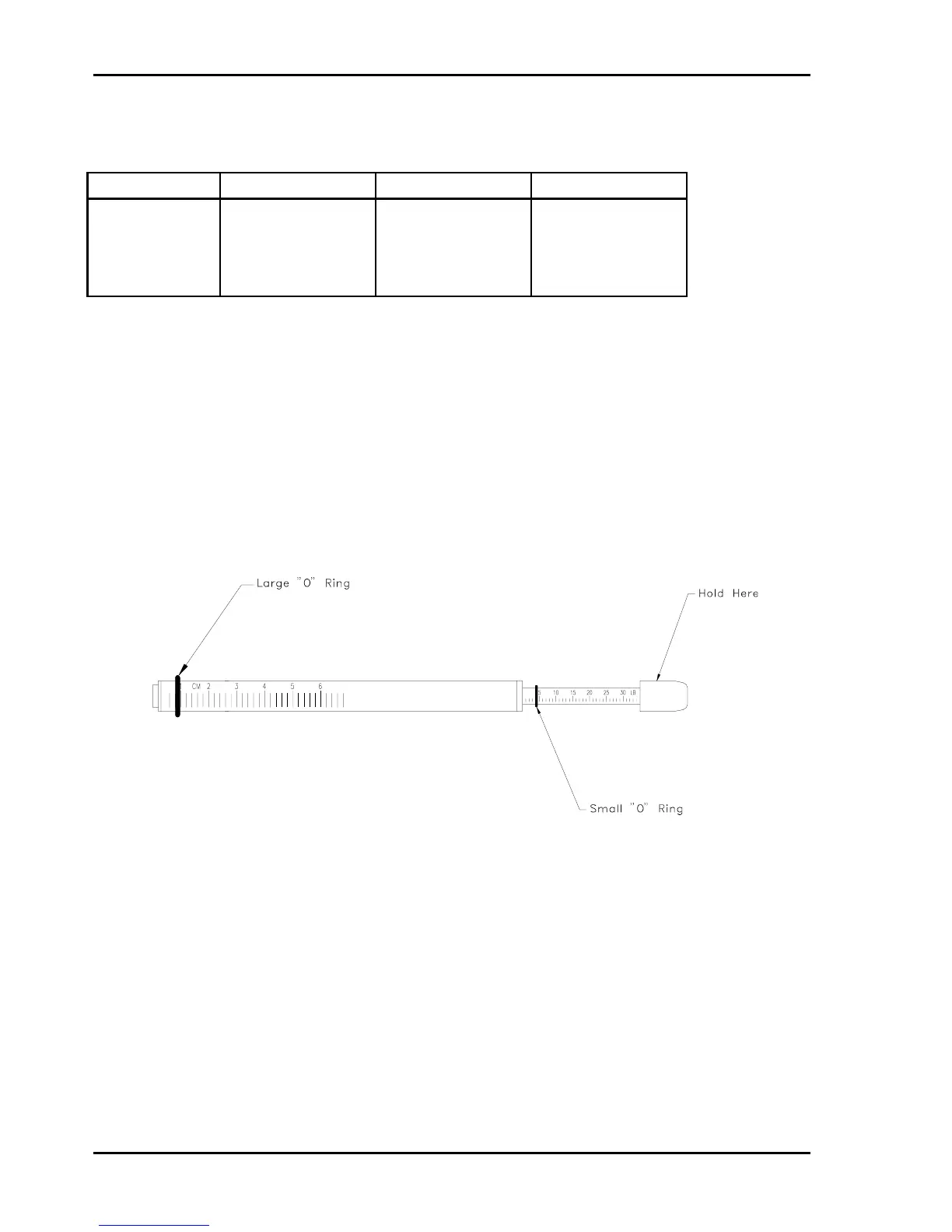

Fig. 3 - Belt Tensiometer Part Number 270965
7.4.4 System Isolating Gate Valve Check
Check that the isolating gate valve fitted to the compressor is open.
