Remote monitoring of the compressor status, (“Fault”, “Standby”, “Run”), is
achieved by utilising the voltage-free contacts contained within the control
box.
Remote Control of the compressors is achieved by connecting a remote
switch to the terminals contained within the control box.
Two Hour Meters to record ‘hours run’ for each compressor are mounted
inside the control box. No mains neutral wire is required for compressors
fitted with this option unless the Clean Air Pack is included.
(Refer Section 9.5).
9.1.1 Central Control Box Operation.
The control box offers a number of configurations in which to operate the two
compressor units. (Refer Fig.5):

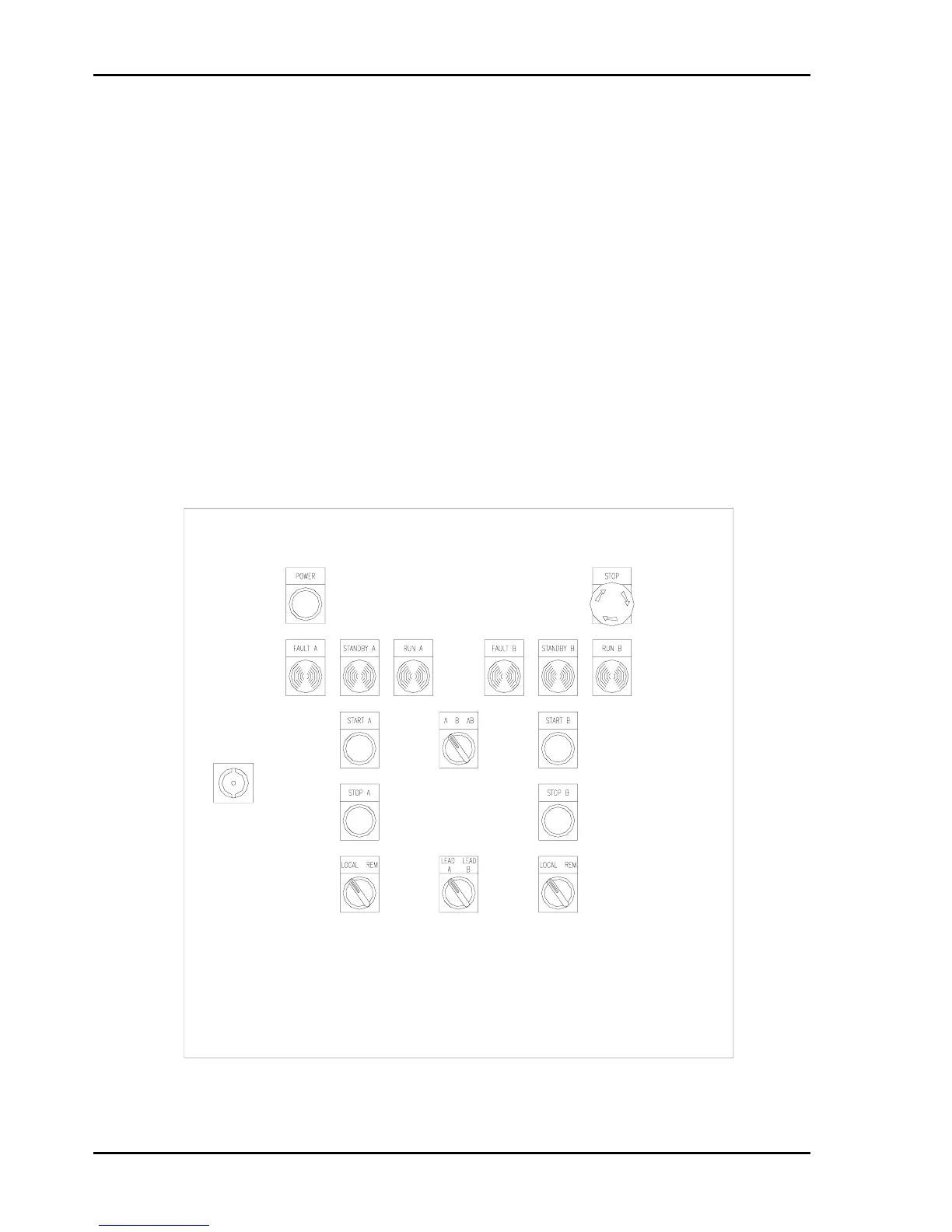

Fig. 5 - Control Panel, Central Control Box
