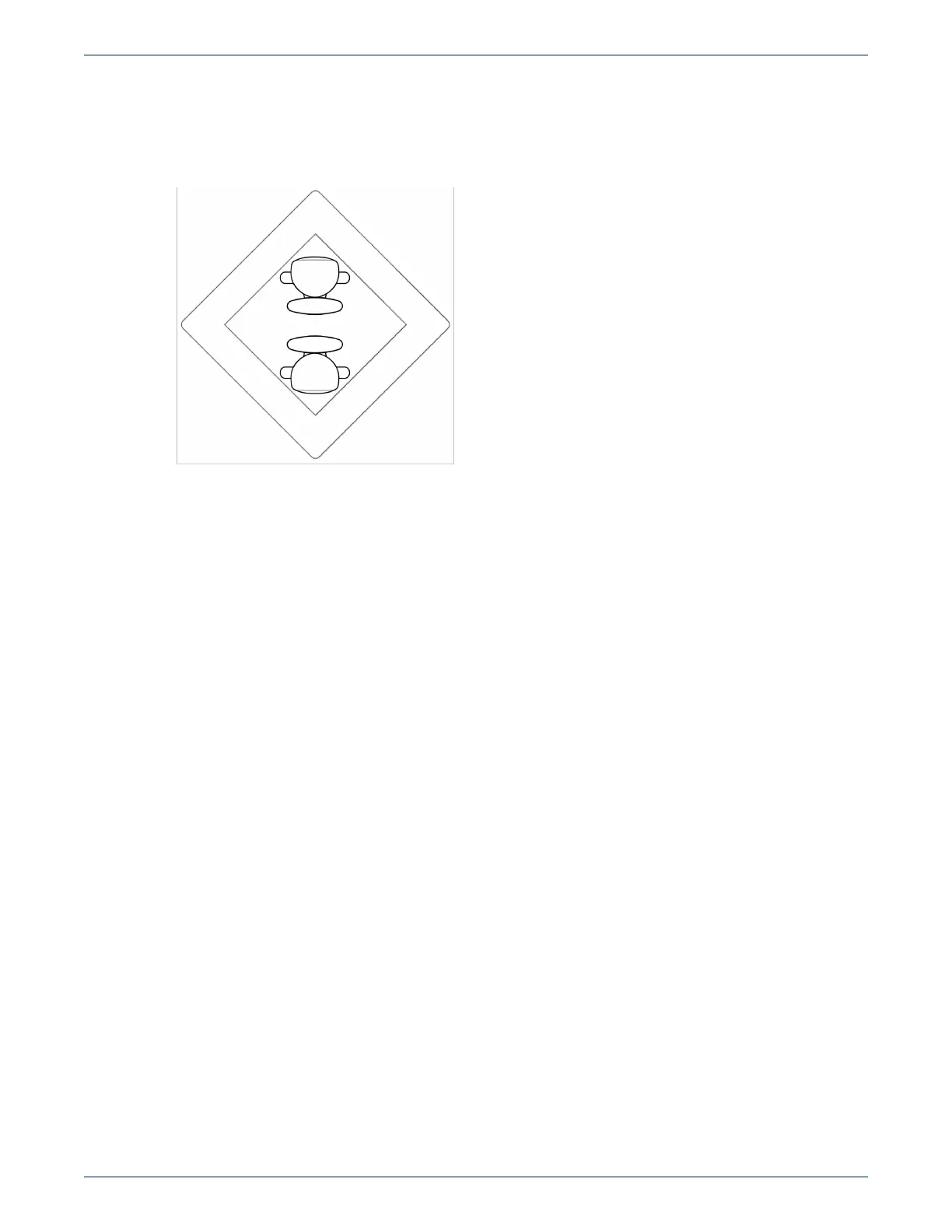

Two stations back to back, centered between four spaces 900 mm (3 ft) on each side
Area: 0.84 m
2
(9 ft
2
)
Volume: 0.51 m
3
(18 ft
3
)
Pedestal Configurations for Different Parking Arrangements
The pedestal base design can be configured in a variety of ways to serve different parking arrangements.
Ensure a sufficient volume of concrete to provide anchoring for the charging station.
Note: CP6000 charging stations are available in several configurations. The images in this guide might not
match your station exactly; however, the information is applicable unless otherwise noted.
10
