Mounting Specifications - Wall Mount Stations
For wall mounted stations:
l
The wall must be smooth, stable, and plumb.
l
The minimum height of the wall must be 1160 mm (45.7 in) above a finished floor.
l

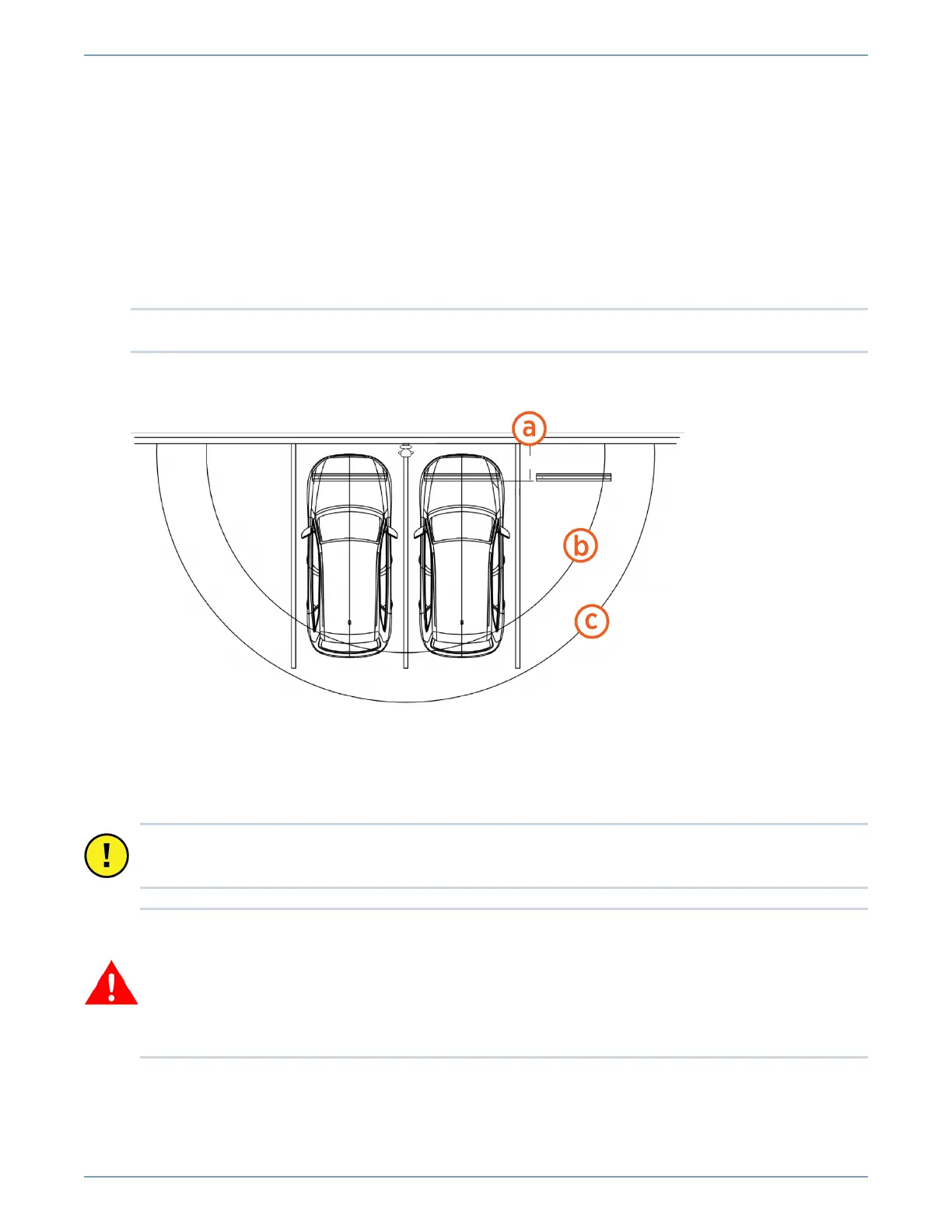

Place wheel stops 900 mm (3 ft) (a) from the wall.
l
The arcs show the usable reach of two charging cable lengths available, 5.5 m (18 ft) (b) and 7 m
(23 ft) (c).
Note: Ensure the space between the wall and the charging station is clear and free of debris.
IMPORTANT: Ensure the wall supports the station. If mounting to a hollow wall, bridge at least
two studs using a 41 mm (1 5/8 in) channel strut.
WARNING: If not installed correctly, the ChargePoint charging station may pose a fall hazard,
leading to death, personal injury, or property damage. Always use the provided Concrete
Mounting Template shown preinstalled here, or a ChargePoint-approved surface mounting
solution, to install the ChargePoint charging station. Always install in accordance with applicable
codes and standards using licensed professionals. Non approved installation methods are
performed at the risk of the contractor and void the Limited One-Year Parts Exchange Warranty.
15
Mounting Specifications - Wall Mount Stations
