5 Pedestal Mount Concrete
Preparation
5

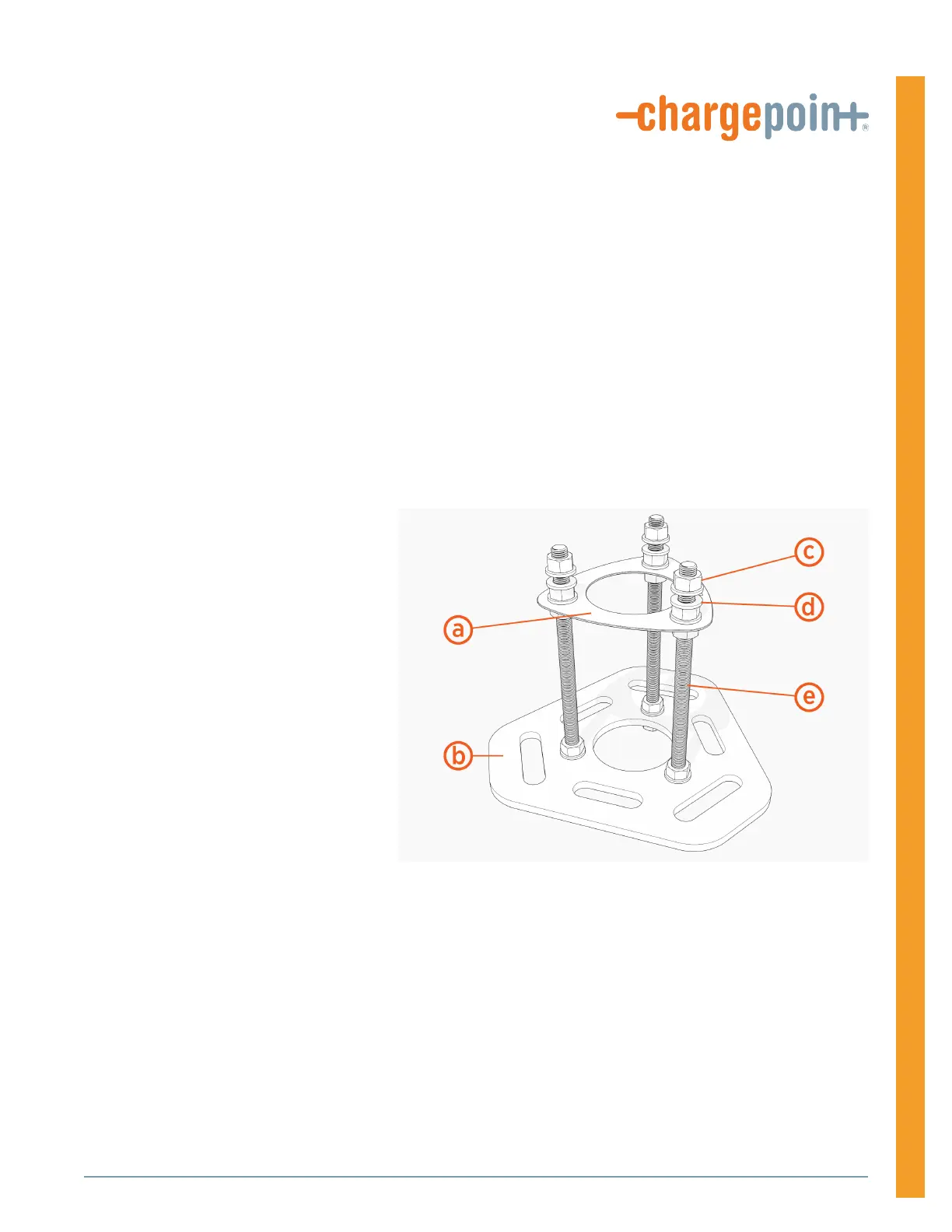

Concrete Mounting Template
You must use a ChargePoint Concrete Mounting Template (CMT) when installing a new pedestal mount
charging station or replacing an existing non-ChargePoint pedestal mount station.
Use a CMT when installing charging stations on existing concrete (on an intermediate floor only).
You must order the CP6000 CMT separately, with sufficient lead time before site construction. This kit
ships separately from the ChargePoint CP6000 charging station.
a. Upper template
b. Lower template
c. Nuts (x 15)
d. Washers (x 18)
e. Anchor bolts (x 3)
27
