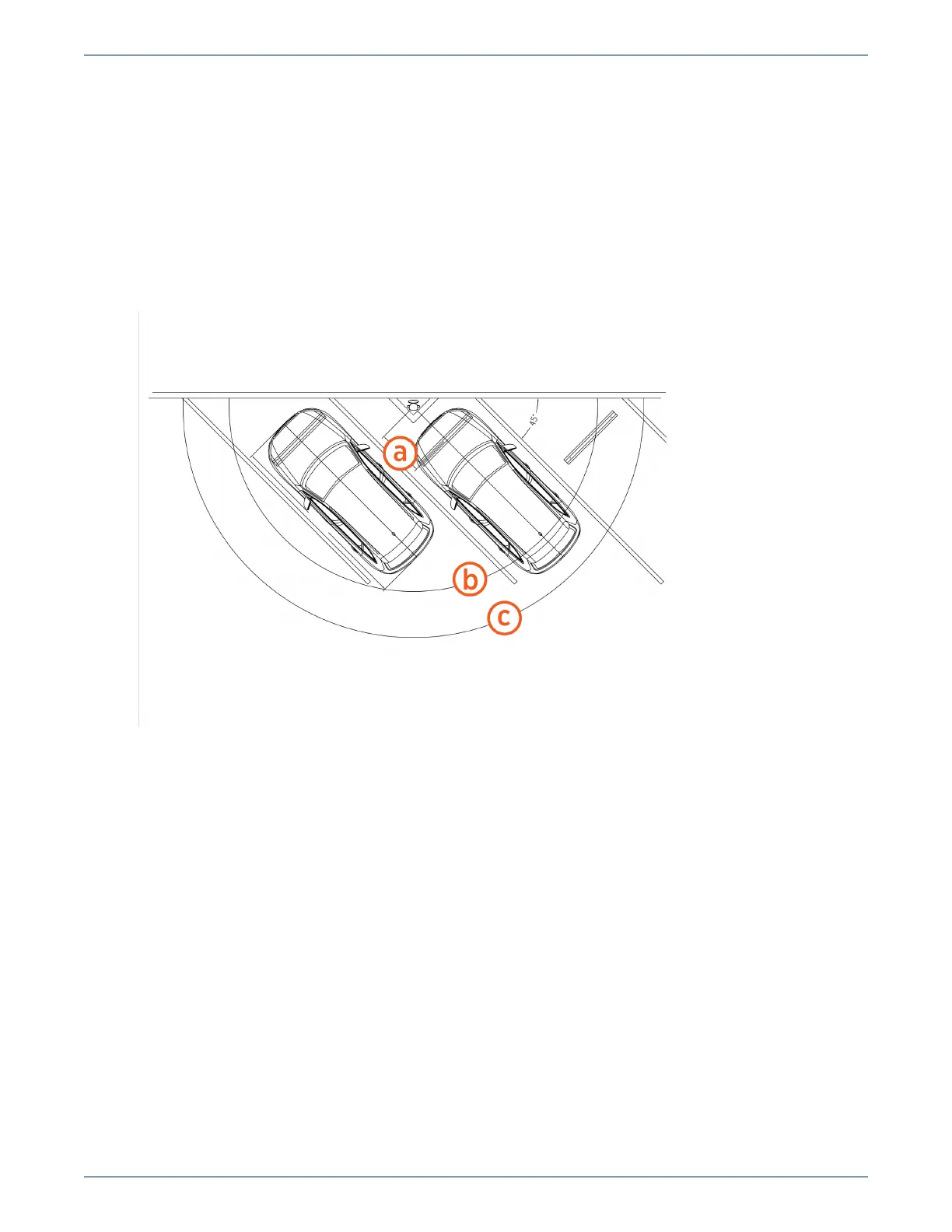

When placing a dual holster station centered on the right space, the charging cables can reach two
vehicles. Place a wheel stop 1220 mm (4 ft) (a) from the center of the charging station.
Note the following details for this arrangement:
o
The arc shows the usable reach of the two charging cable lengths available: 5.5 m (18 ft) (b)
and 7 m (23 ft) (c).
o
The 7 m (23 ft) cord option is recommended for this configuration.
o
The base of the charging station can be flush with the parking spaces or at curb level.
o
Be sure to install 'EV Charging Station' signs on both spaces.
13
Mounting Specifications - Pedestal Mount Stations
