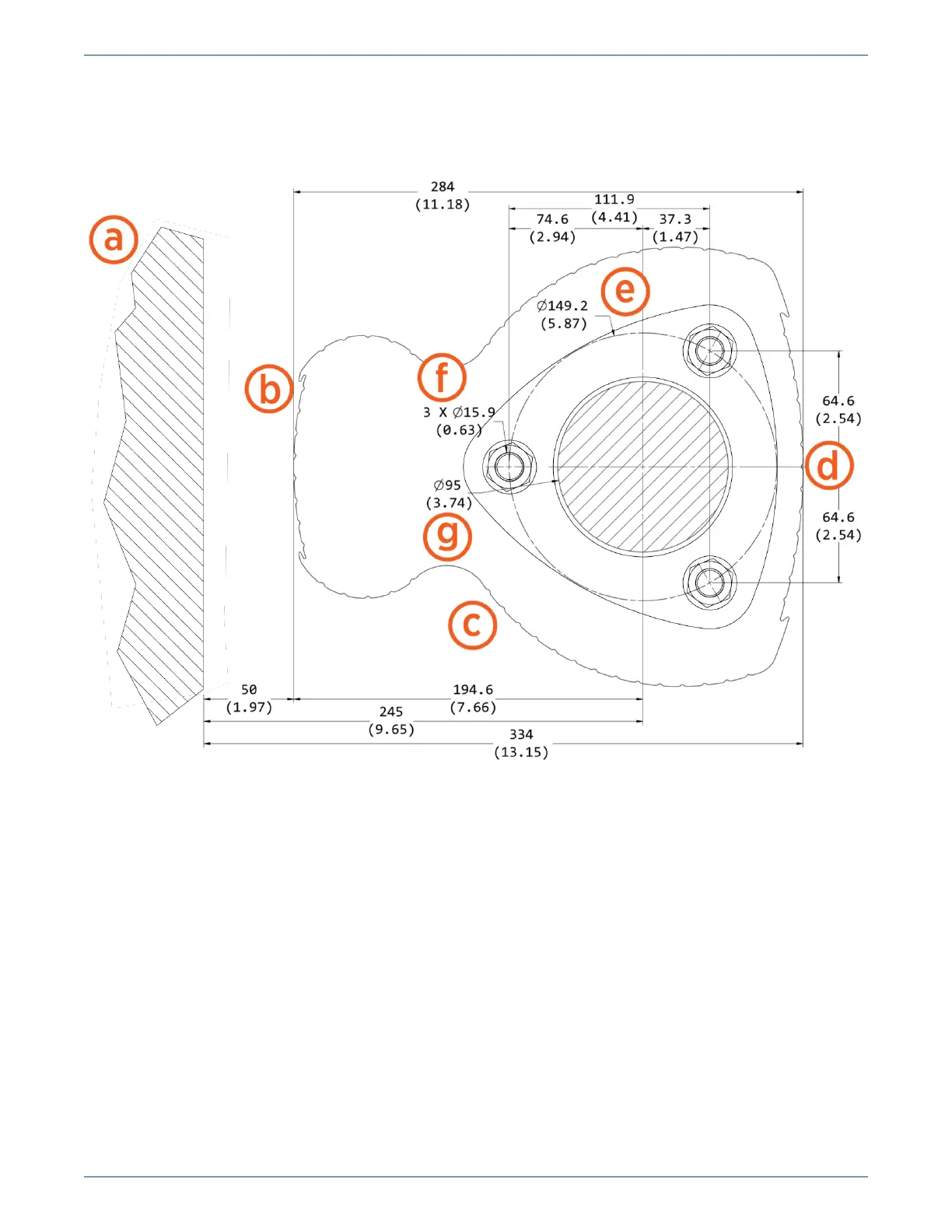

CMT - Pedestal Mount With CMK
Note: Images are not to scale. Measurements appear in metric units (mm), followed by imperial equivalents
(inches).
a. Wall
b. CMK footprint
c. Pedestal footprint
d. Front
e. Bolt circle
f. Bolt or anchor
g. Conduit stub-up within this area (new concrete only)
29
