20 DF II Series User Manual

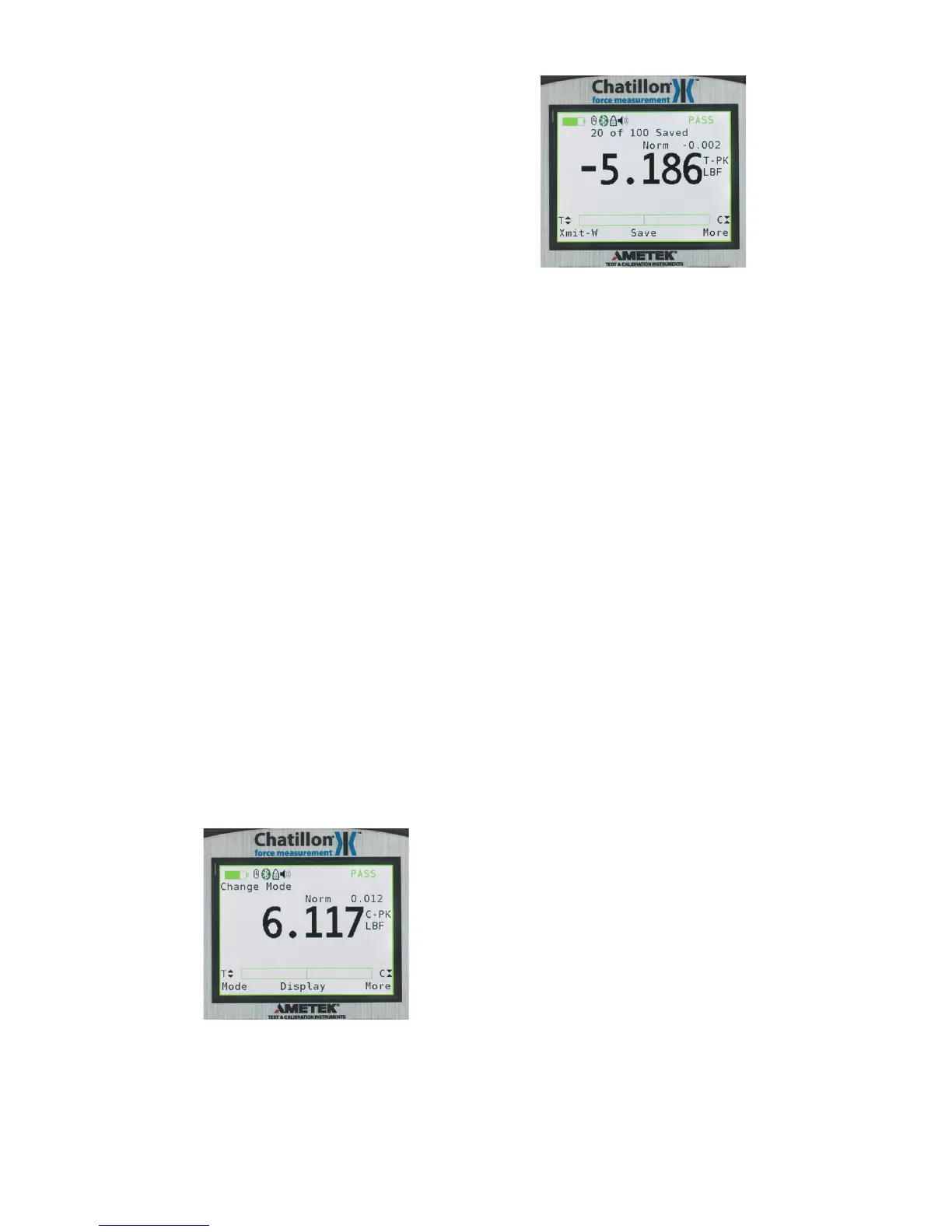

VIEWING PASS-FAIL RESULTS
Pass-Fail results are viewed from the View display. To access the View display from the Home display,
select the F3 (More) key.
Saved results are displayed with their reference number (1 of 100, 2 of 100, etc.) and indication of green
“Pass”orred“Fail”basedonyourspecications.Themeasuredvalue,unitsandmodearedisplayed
with a green “Pass” or red “Fail” tag. Use the navigation pod UP and DOWN arrow to view the remaining
saved results from memory.
When “PASS-FAIL” is enabled (ON), the gauge will display a green “PASS” or red “FAIL” two ways:
1. If the gauge MODE is either T-PK or C-PK;
2. If measured results are SAVED into memory.
Viewing Saved Result
The DFE II will save up to 20 and the DFS II will
save up to 100 measured results in its internal
memory provided you elect to “SAVE” a result.
To view a “Saved Result”, from the Home display,
select F3 (More) to access the View display. Se
-
lect the “INFO” key (i).
Saved results are displayed with their reference
number (1 of 100, 2 of 100, etc.). The measured
value, units and mode are displayed. Use the
navigation pod UP and DOWN arrow to view the
remaining saved results from memory.
A graphical representation of the results can also
be viewed by selecting F3 (More) key while view-
ing a result. To exit the graph and return to viewing
results, select F3 (More)
