22 DF II Series User Manual
TRANSMIT RESULTS
The DF II Series can transmit data using its
RS232, Mitutoyo, USB, Bluetooth
®
(DFS II only)
or Analog output. The gauge will transmit data to
whatever device is connected to the gauge through
the selected output port.
Data transmit is used to send information to
another device, e.g. personal computer or to print
information to a serial or Mitutoyo printer.
To transmit information, the gauge must be in the
View display.
You have two options when transmitting:
n Transmit Displayed Result
n Transmit ALL Results from Memory

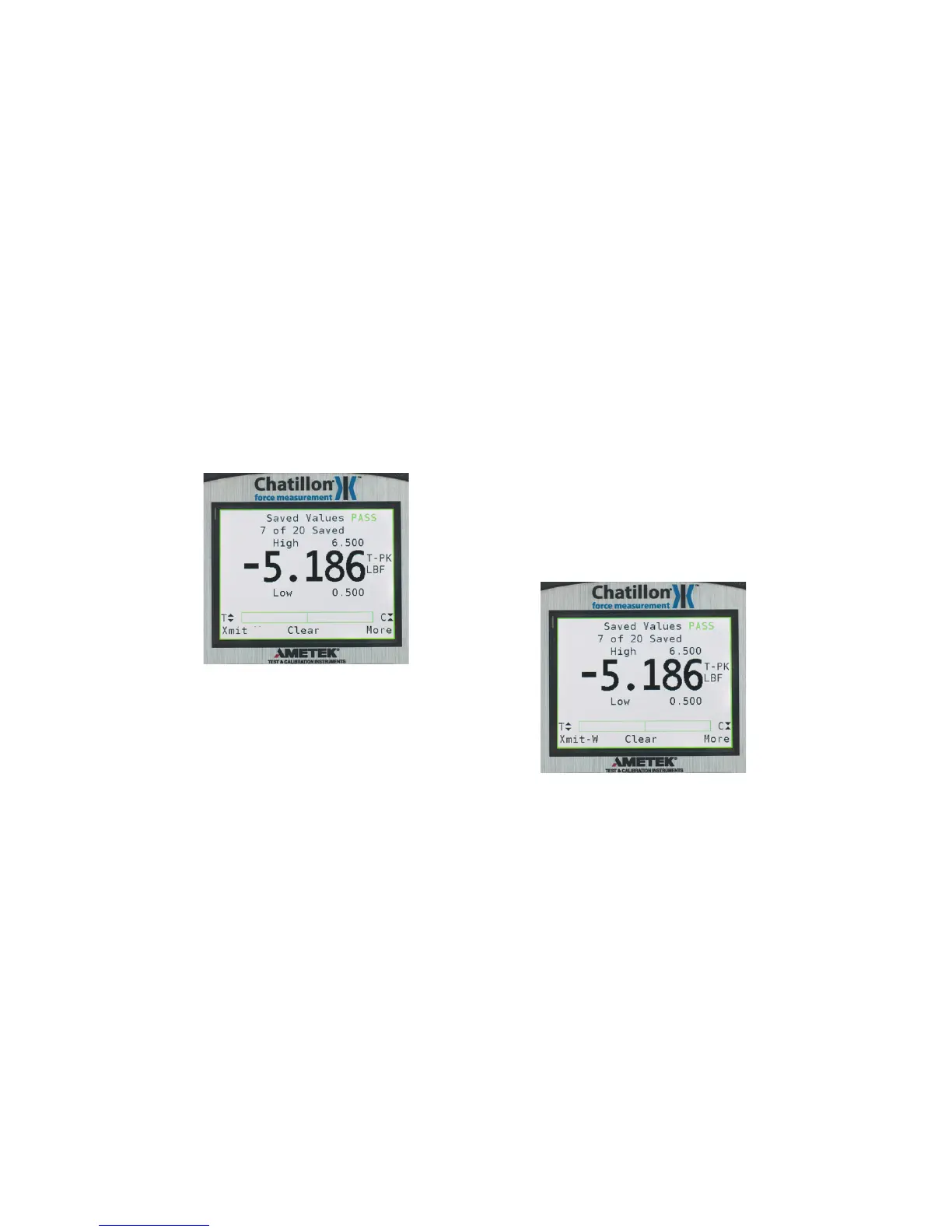

TRANSMIT DISPLAYED RESULT
You can transmit results from the View display.
From Home, select F3 (More). This will access the
View display.
Select F1 (Xmit) to specify what you want to transmit.
You may transmit either the displayed result or all
results saved in instrument memory.
Select F1 (Xmit-W or Xmit-O) to transmit the currently
displayed result. If “Xmit-W” is displayed, the gauge
has been setup to transmit WITH UNITS. If “Xmit-O”
is displayed, the gauge has been setup to transmit
the result WITHOUT UNITS. You specify the output
type in the Communication Setup procedure.
Select F1 (Xmit) to transmit all currently saved
results from the instrument memory. The gauge
will transmit all results With or Without Units as
denedbytheF1key.IftheF1keysays“Xmit-W”,
all results will be transmited WITH UNITS. If the
F1 key says “Xmit-O”, all results will be transmitted
WITHOUT UNITS.
