PATIENT PREPARATION
EN
|
Intelect
®
Mobile 2 ELECTROTHERAPY User Manual
DJO Vacuum Electrodes are designed specifically for
optimal use with the Intelect
®
Mobile Vacuum Module.
These electrodes are multi-use when properly maintained
and cleaned. The associated sponges are recommended
for single patient use only, should be cleaned with a mild
antibacterial solution containing no chlorine, before and
after each therapy session.

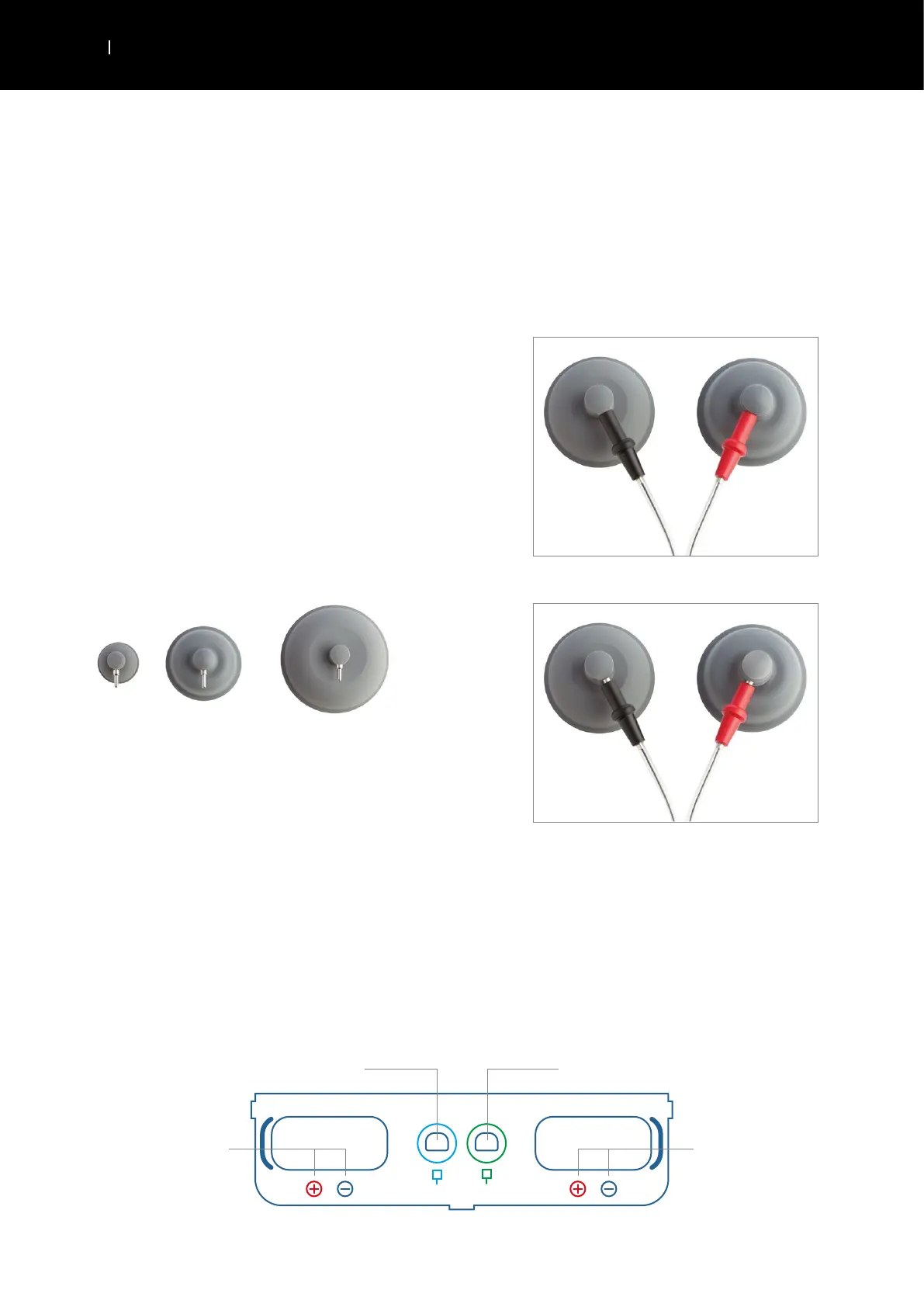

Vacuum Electrodes
Refer to the image below for available sizes of vacuum
electrodes. For waveform setup and parameter changes,
refer to the VACUUM OPERATION section on page 56.
View the Electrode Placement recommendations in the
Treatment Review Screen for the particular modality being
used for prior to administering treatment.
mm mm mm
Connecting Lead Hoses
1. Insert the red lead hose WITH THE NARROW
DIAMETER HOUSING to the positive (+) lead hose
connection port for the channel desired on the Vacuum
Module.
2. Connect the other lead hose, again with the NARROW
DIAMETER HOUSING to the negative (-) lead hose
connection port on the Vacuum Module.
3. Place the Vacuum plugs on all vacuum channels not
being used to prevent vacuum leakage during a therapy
session.
VACUUM ELECTRODE PREPARATION
OPTIONNAL
Electrodes
4. Select the prescribed Vacuum Electrode size and install
one to the opposite end of each Vacuum lead hose.
The CORRECT connection, showing a SNUG fit of the leads,
WITH THE LARGER DIAMETER HOUSING, against the
electrode is shown here:
Compare the INCORRECT connection shown here:
5. Using cleaned sponges, liberally wet the respective
sponges, with distilled water, for the electrode size being
used. Squeeze out the excess water.
1 2
Channel 2 device connection to vacuumChannel 1 device connection to vacuum
+/- Channel 1 polarity +/- Channel 2 Polarity
