4．To download a file, left click the name of the target file → download the file according
to the prompts.
4.5 IO Settings Menu
Use the IO Settings menu to set up all receiver outputs and inputs. The receiver can output
CMR, RTCM, Raw data, Ephemeris data, GPGGA, GPGSV, on TCP/IP, UDP, serial port, or
Bluetooth ports.
4.5.1 IO Settings Submenu

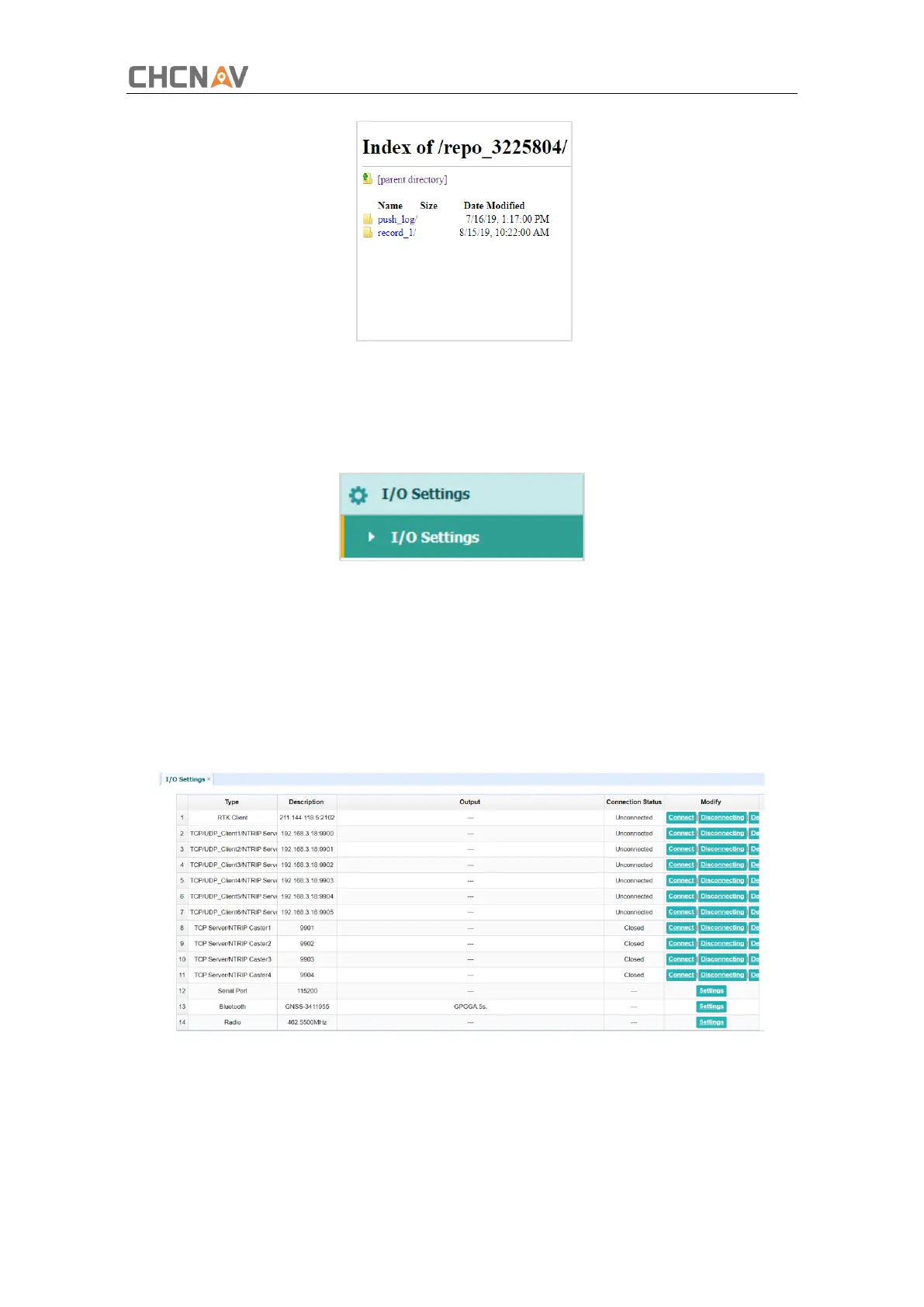

The following figure shows an example of the screen that appears when you select this
submenu.
In this submenu, users can configure 6 types of input and output settings.
1．RTK Client
After configuring the settings of RTK client, users can log on CORS or APIS. Tap the Connect
button to the right → the IO Settings screen will appear → choose one of the connection
To Next Page
