Configuring Through a Web Browser
CHCNAV iBase GNSS USER GUIDE | 2023-2 P a g e | 38

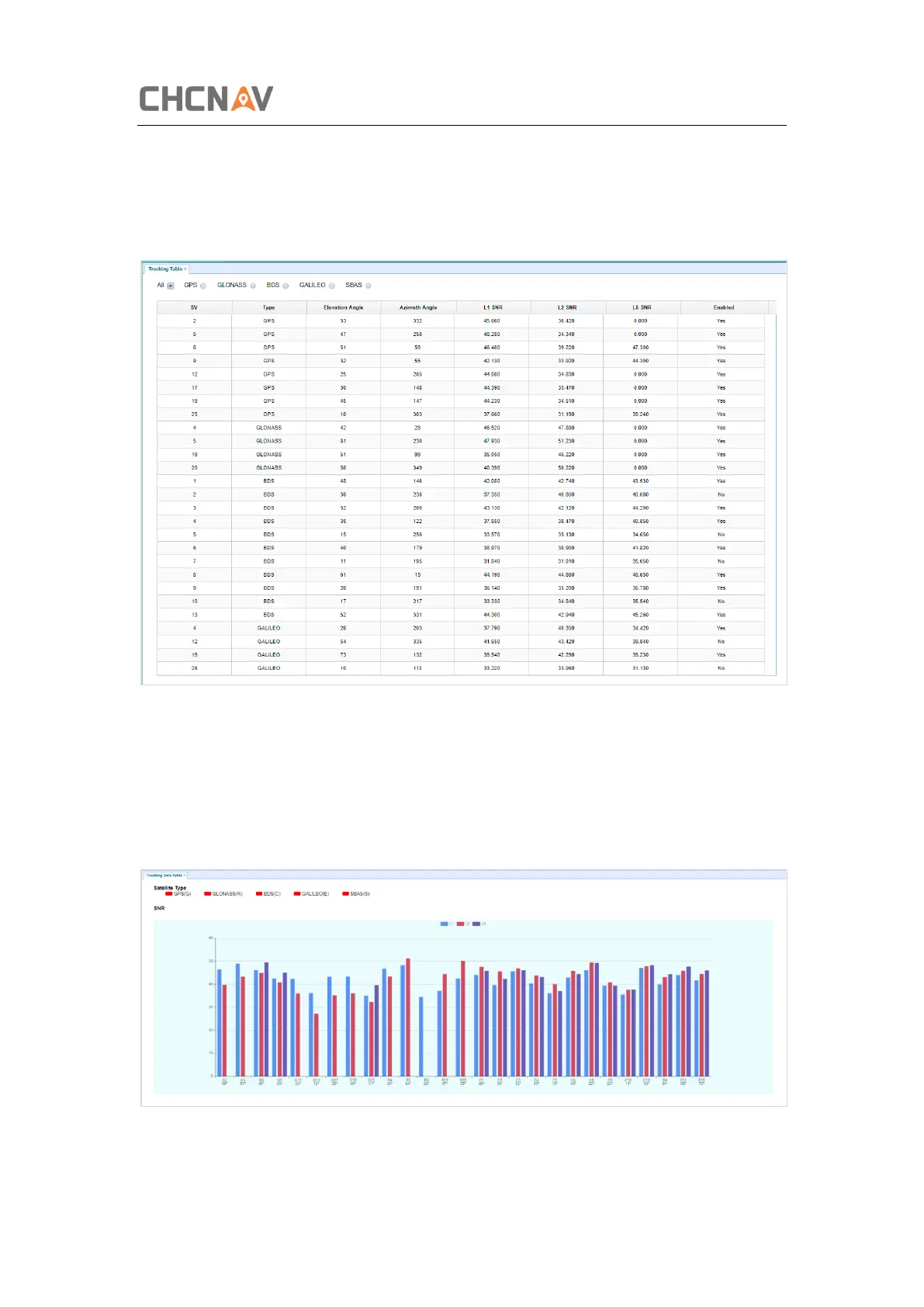

5.2.1 Tracking Table Submenu
Provides the status of satellites tracked in general, such as the satellite ID, satellite type,
attitude angle, azimuth angle, L1 SNR, L2 SNR, L5 SNR and enable/disable status of each one.
5.2.2 Tracking Info. Table Submenu
The following figure is an example of satellite track diagram page. Users can determine the
satellite types and the corresponding SNR of L-band carriers to be displayed in any
combination.
