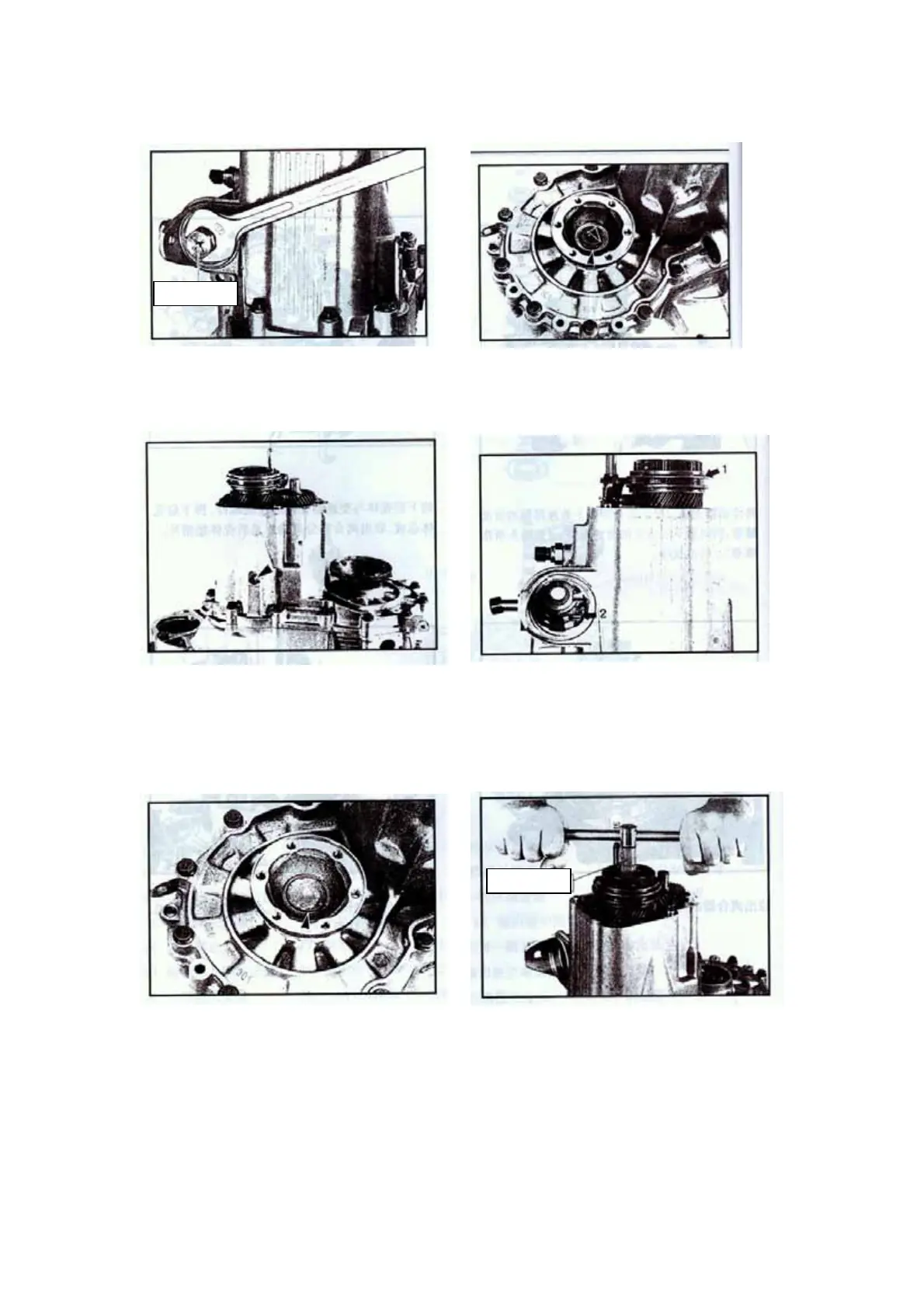

Unscrew the screw plug of shifting shaft with
special tool, take out spreader spring and
shifting shaft assy.
Take out the snap ring and disk-shape closing
ring, and remove the output flange.
Remove the stoppers of reverse gear shaft (as
indicated by arrow)
Shift to gear 5 and reverse gear
—Slide the synchronizer down as indicated by
arrow 1 and shift to gear 5.
—Move the first fork down as indicated by
arrow 1 and shift to reverse gear.
Remove left and right blind covers of output
flange
Unscrew the fixing bolts and gaskets of gear-5
synchronizer with special tool.
Special tool
Special tool
