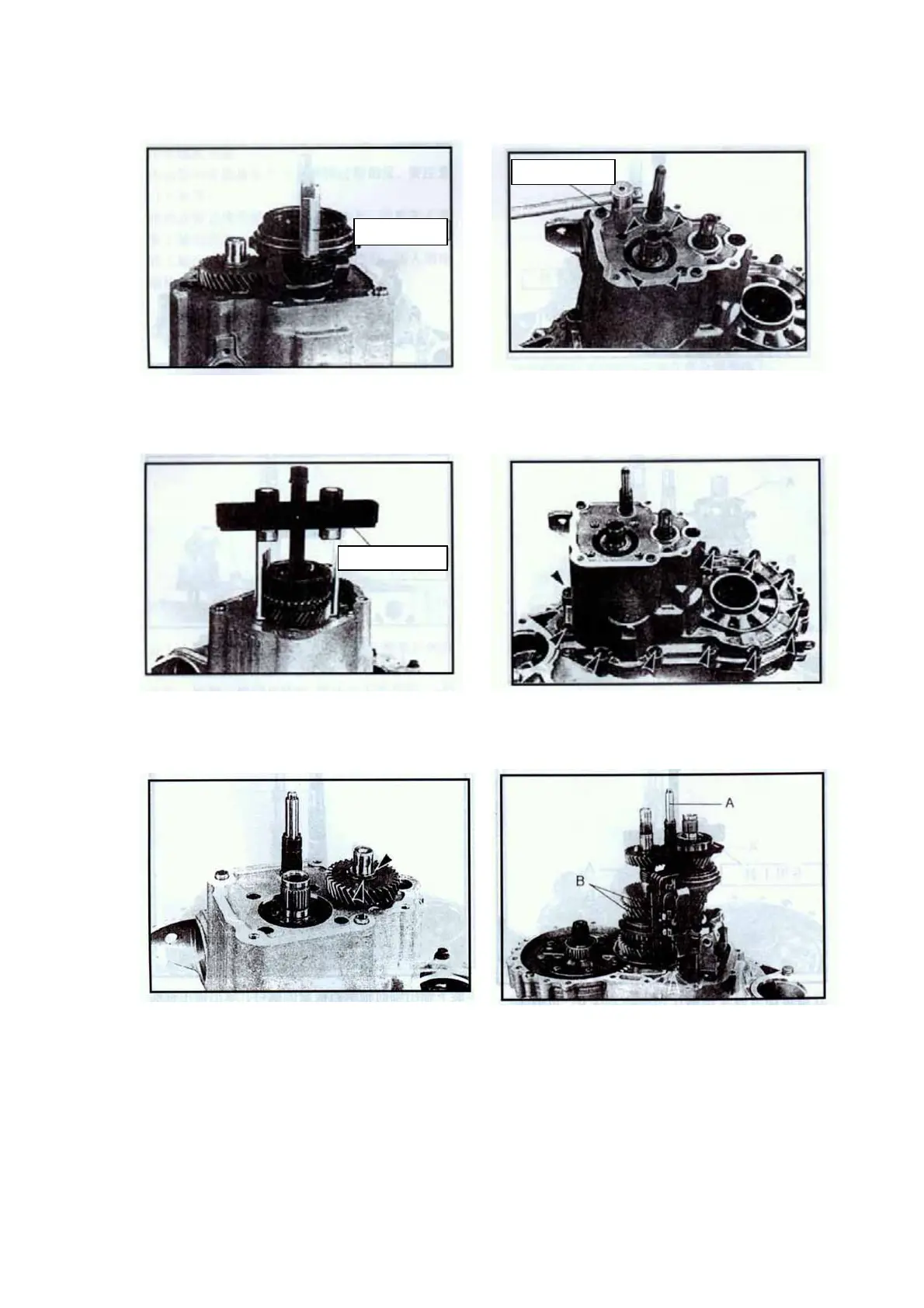

Pry up the gear-5 fork locking board to let it
loosened; left unscrew the gear-5 fork bush with
special tool and remove gear-5 fork assy.
Unscrew the clamping bolt of rear shaft gasket of
input shaft with special tool.
Remove the gear-5 driving gear and its
synchronizer assy. If necessary, with special tool.
Unscrew the fastening bolts of fore and rear housing
of transmission, remove the transmission housing
and the gaskets of fore and rear housings.
Take down the snap ring of gear-5 driven gear and
gear-5 driven gear.
Remove the transmission fork shaft and its upper
and lower spring, take out gear-5 fork guide block
assy., reverse gear fork guide block, gear-3 and gear
4 forks and gear-1 and gear-2 forks.
Special tool
Special tool
Special tool
