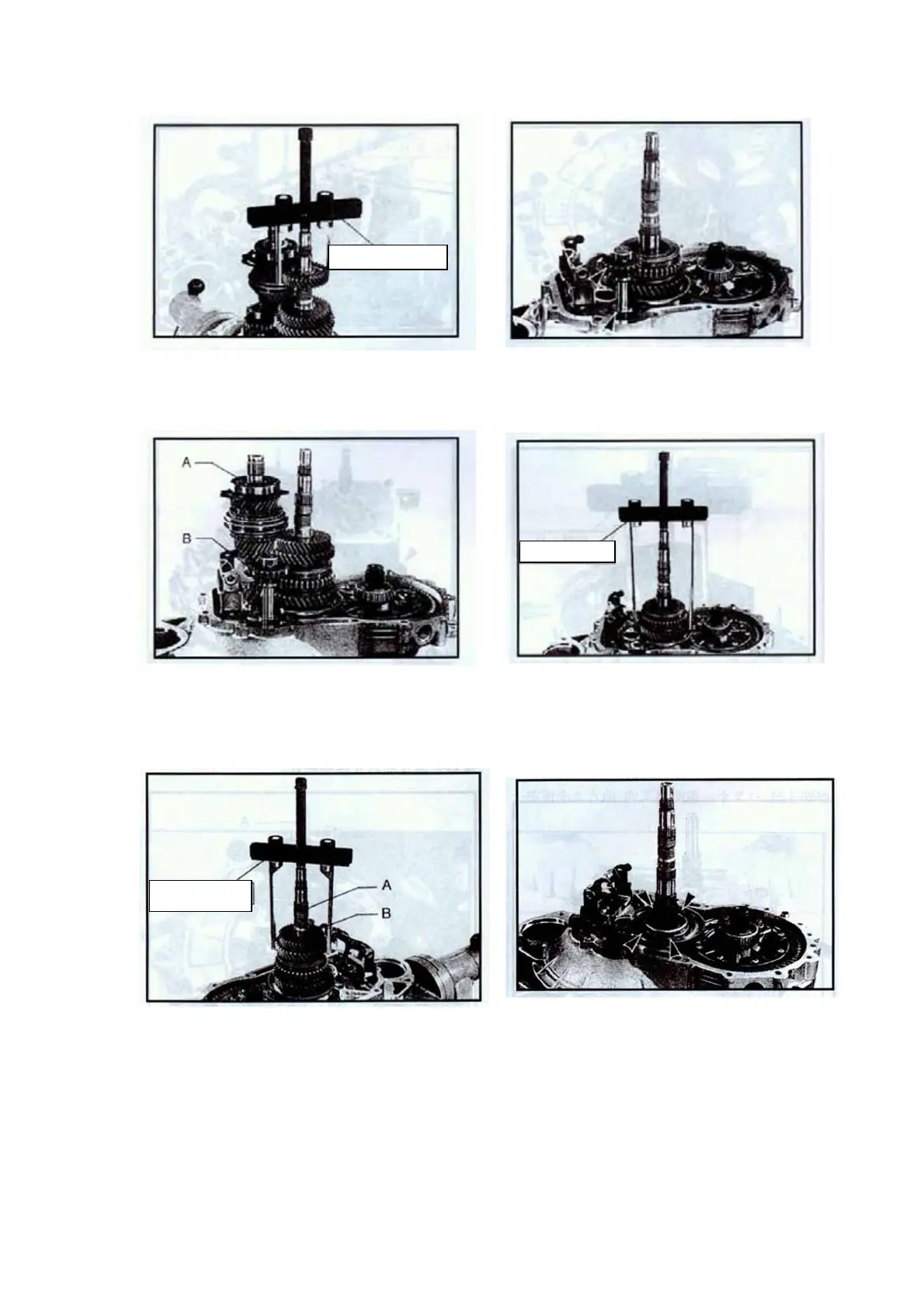

Remove the snap ring of gear-4 driven gear, with
special tool if necessary
Up knock the reverse gear shaft with reverse gear
idler until knocking down the reverse gear idler
and shaft from the clutch housing.
Take out assy. A of input shaft, pay attention that
gear B of the reverse gear should not be on the gear
position.
Pull out gear-1 and gear-2 synchronizer
assemblies of input shaft with special tool, gear-1
synch ring, gear-1 driven gear, needle roller gear
and take out gasket.
Remove snap ring B of gear-3 driven gear from the
output shaft, then gear-3 driven gear; remove the
gear-2 driven gear, needle roller bearing and synch
ring from output shaft; use special tool if necessary.
Unscrew the fastening screws of fore bearing
baffle of output shaft, take out the fore bearing
baffle and output shaft.
Take out differential gear assy.
Remove reverse gear fork and its bracket, release
spring and buttonhead.
Special tool
S
ecial tool
Special tool
