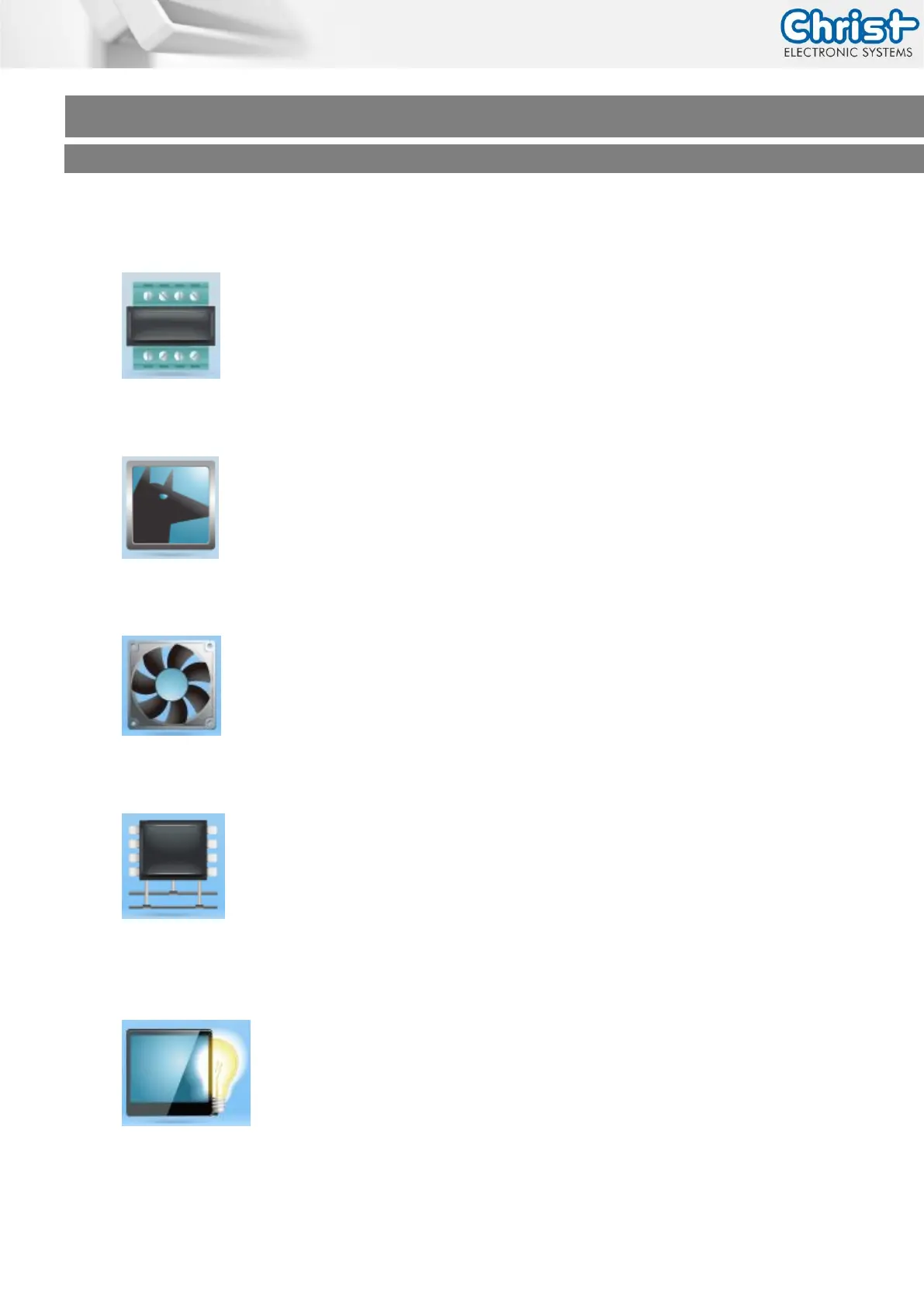

3. Dio: Through the application, obtain the Digital IO information. It can be set for
the pin’s direction (input or output) and accessed for set/read pin’s data (low or
high), upon the direction of pin configured. (The standard Touch-it XELO has no DIO´s)
4. Watchdog: Set the countdown time of system reboot when timeout happens.
The time mode is the second or minute. The count value is from 0 to 255.
5. Smart Fan: Show the Speed of fan and associated Temperature. It also can control
the fan speed corresponding to temperature. (only by Touch-it XELO with fan possible)
6. Smbus: Get data of device connected to Smbus (I2C). It can automatically detect
the base address of Smbus.
7. Backlight Controller: It has two modes. One is Inverter mode through Smbus, and the
other is PWM mode. It can control the brightness of LVDS interface LCD panel.
(Function is not available at all panels)
