Touch-it XELO
Operating Instructions
Copyright / © Christ Electronic Systems GmbH 38 / 47 March 2017, Revision 17
a member of the Christ Company Group Document No.: E461201

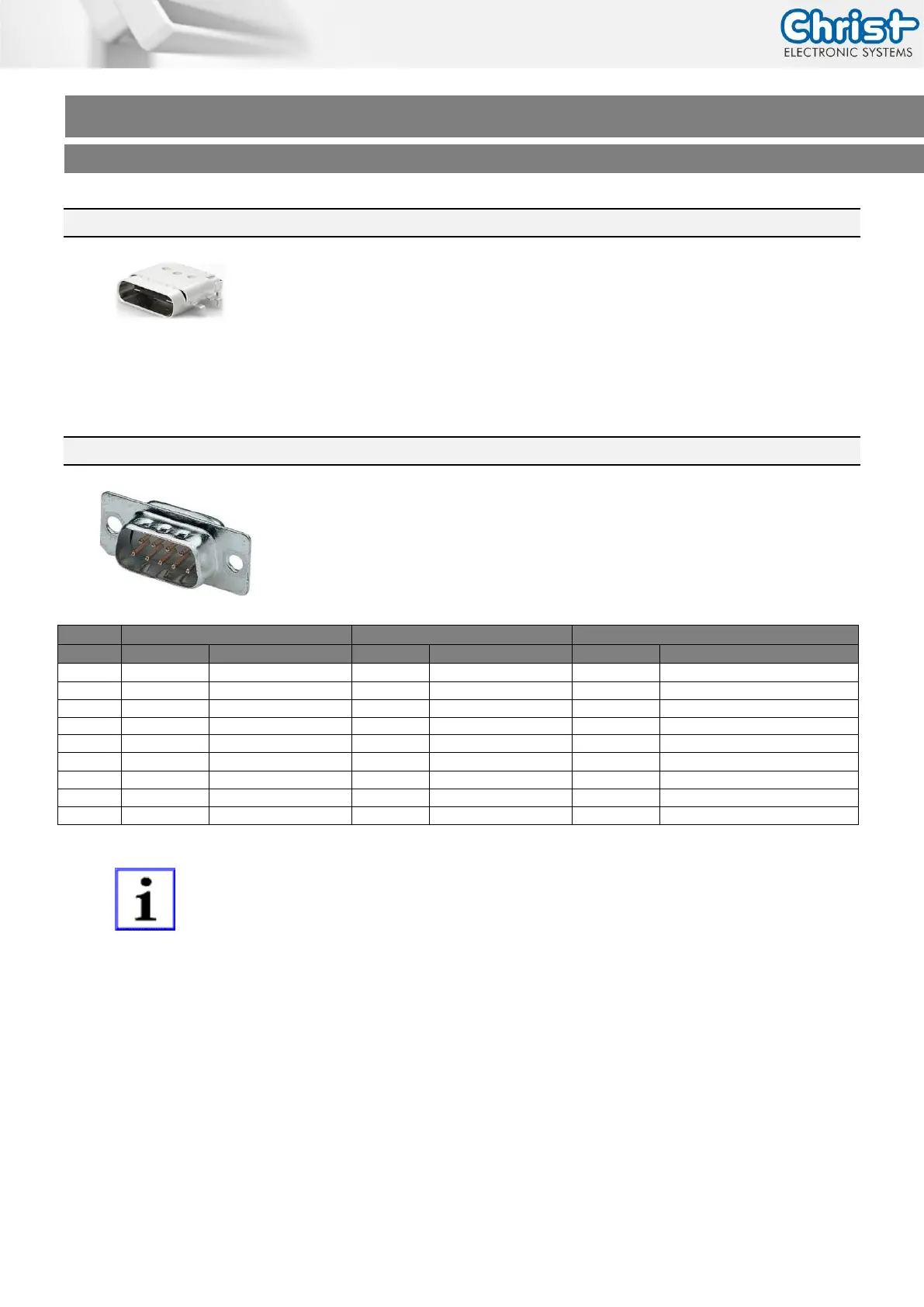

5.5 USB 3.1 Type C Connector
Type
USB 3.1 Type C
The USB 3.1 Type C interface is equal with the standard USB 3.1 Type C pin assignment.
5.6 COM Connector
Type
D-SUB ST 09
RS-232
RS-485
RS-422
Pin
Function
Description
Function
Description
Function
Description
1
DCD
Data Carrier Detect
DATA-
Data differntial pair A
Rx+
Receiver differential pair +
2
RX
Receive Data
DATA+
Data differntial pair B
Rx-
Receiver differential pair -
3
TX
Transmit Data
n.c.
Tx+
Transmitter differential pair+
4
DTR
Data Terminal Ready
n.c.
Tx-
Transmitter differential pair-
5
GND
Ground
GND
Ground
GND
Ground
6
DSR
Data Set Ready
n.c.
n.c.
7
RTS
Request to Send
n.c.
n.c.
8
CTS
Clear to Send
n.c.
n.c.
9
RI
Ring Indicator
n.c.
n.c.
INFORMATION!
RS-485 / RS- 422 only with CPU GX-415GA and i5-4300U
