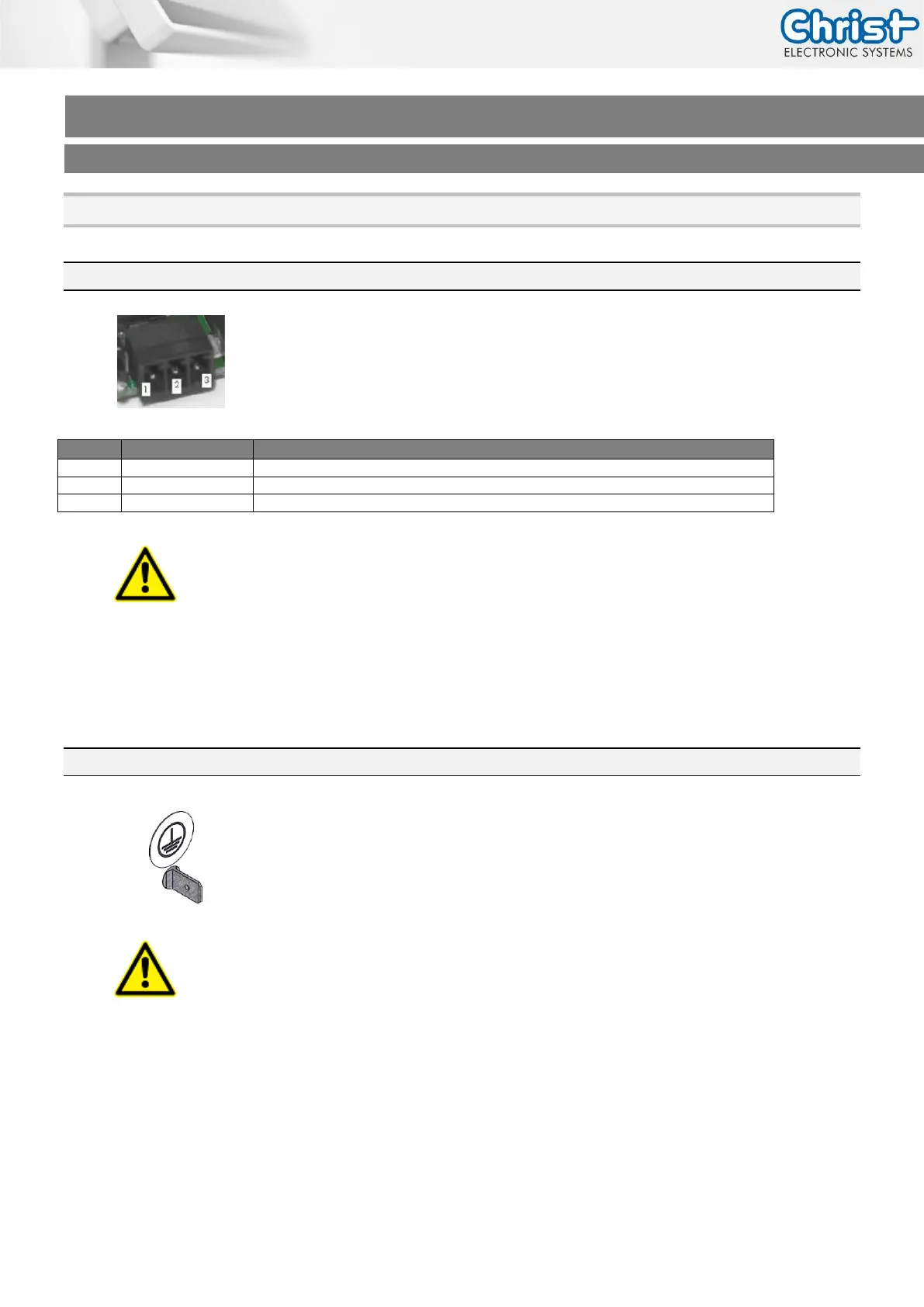

5 Interfaces
5.1 Power Supply Connector
Mating
Connector
Phoenix Connector MC 1.5/3-ST-3.5
or
Phoenix Connector MC 1,5/3-STF-3.5
(only screwable versions)
Pin
Function
Description
1
GND
Power Supply GND
2
PE
PE
3
VCC
Power Supply VCC
CAUTION!
A proper earth connection of the device is necessary to dissipate interfer-
ence from external power supply, signal or peripheral equipment cables.
You have to connect earth on the Power Supply Connector.
5.2 Grounding Bolt (if available)
Mating
Connector
Cable lug 6.3mm
CAUTION!
A proper earth connection of the device is necessary to dissipate interfer-
ence from external power supply, signal or peripheral equipment cables.
To improve the low-impedance connection you have to connect earth
additional to the Grounding Bolt.
