Christ touch-it xelo - COM Connector (CPU I5-6300 U); Ethernet Connector

Touch-it XELO
Operating Instructions
Copyright / © Christ Electronic Systems GmbH 39 / 47 March 2017, Revision 17
a member of the Christ Company Group Document No.: E461201

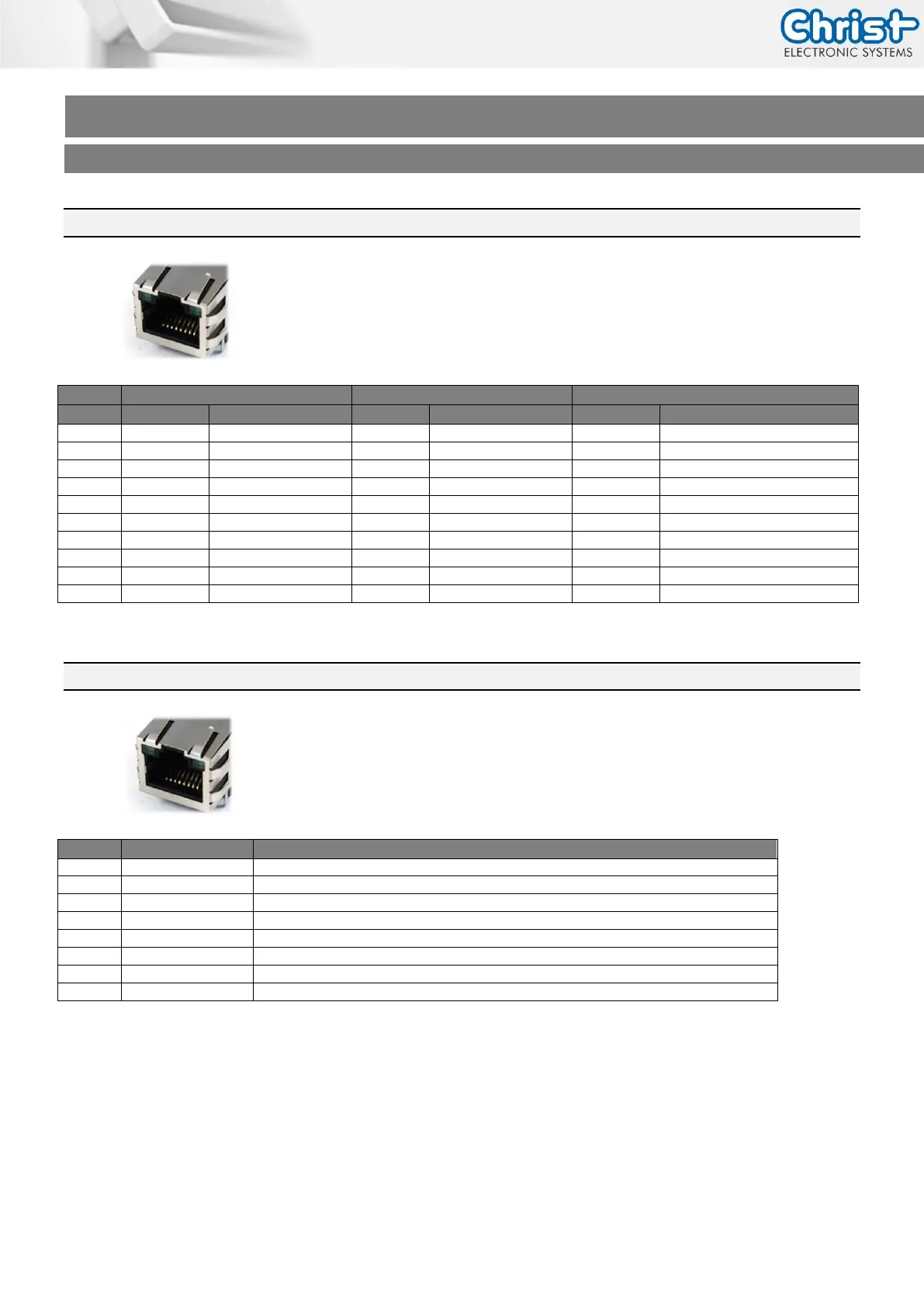

5.7 COM Connector (CPU i5-6300U)
Mating
Connector
RJ50 10P10C
RS-232
RS-485
RS-422
Pin
Function
Description
Function
Description
Function
Description
1
DSR
Data Set Ready
n.c.
n.c.
2
GND
Ground
GND
Ground
GND
Ground
3
GND
Ground
GND
Ground
GND
Ground
4
TX
Transmit Data
n.c.
Rx+
Receiver differential pair +
5
RX
Receive Data
DATA+
Data differntial pair B
Tx+
Transmitter differential pair+
6
DCD
Data Carrier Detect
DATA-
Data differntial pair A
Tx-
Transmitter differential pair-
7
DTR
Data Terminal Ready
n.c.
Rx-
Receiver differential pair -
8
CTS
Clear to Send
n.c.
n.c.
9
RTS
Request to Send
n.c.
n.c.
10
RI
Ring Indicator
n.c.
n.c.
5.8 Ethernet Connector
Type
1 Gigabit Ethernet RJ45 Tab-up with LED
Pin
Function
Description
1
D1+
Transmit Data+
2
D1-
Transmit Data -
3
D2+
Receive Data +
4
D3+
Bidirectional+
5
D3-
Bidirectional-
6
D2-
Receive Data -
7
D4+
Bidirectional+
8
D4-
Bidirectional-
