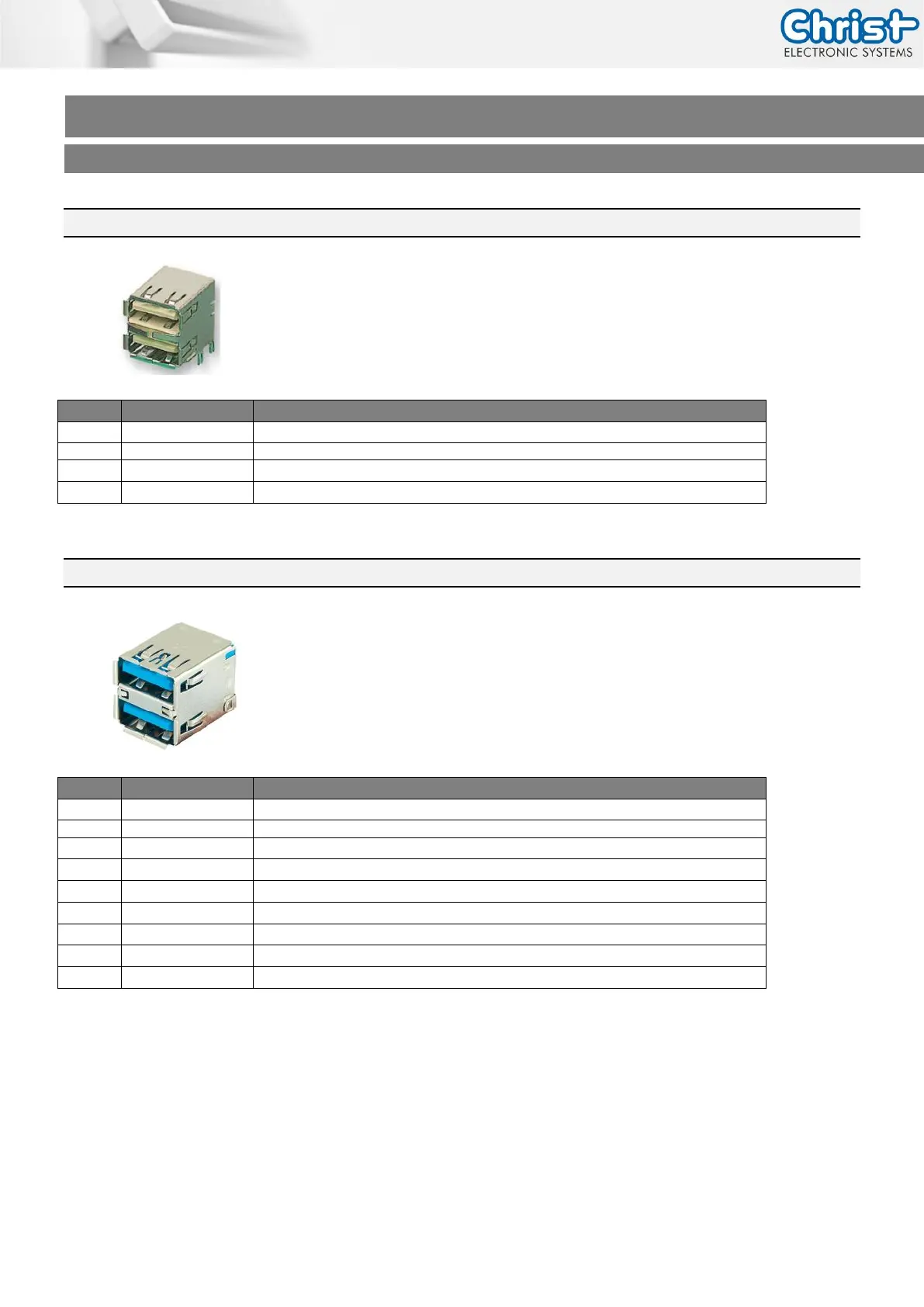

5.3 USB 2.0 Type A Connector
Type
Double USB Type A
Pin
Function
Description
1
VBUS
USB VCC
2
D-
USB Data-
3
D+
USB Data+
4
GND
USB GND
5.4 USB 3.0 Type A Connector
Type
Double USB 3.0 Type A
Pin
Function
Description
1
VBUS
USB VCC
2
D-
USB Data-
3
D+
USB Data+
4
GND
USB GND
5
StdA_SSRX-
SuperSpeed transmitter differential pair
6
StdA_SSRX+
SuperSpeed transmitter differential pair
7
GND_DRAIN
Ground for signal return
8
StdA_SSTX-
SuperSpeed receiver differential pair
9
StdA_SSTX+
SuperSpeed receiver differential pair
