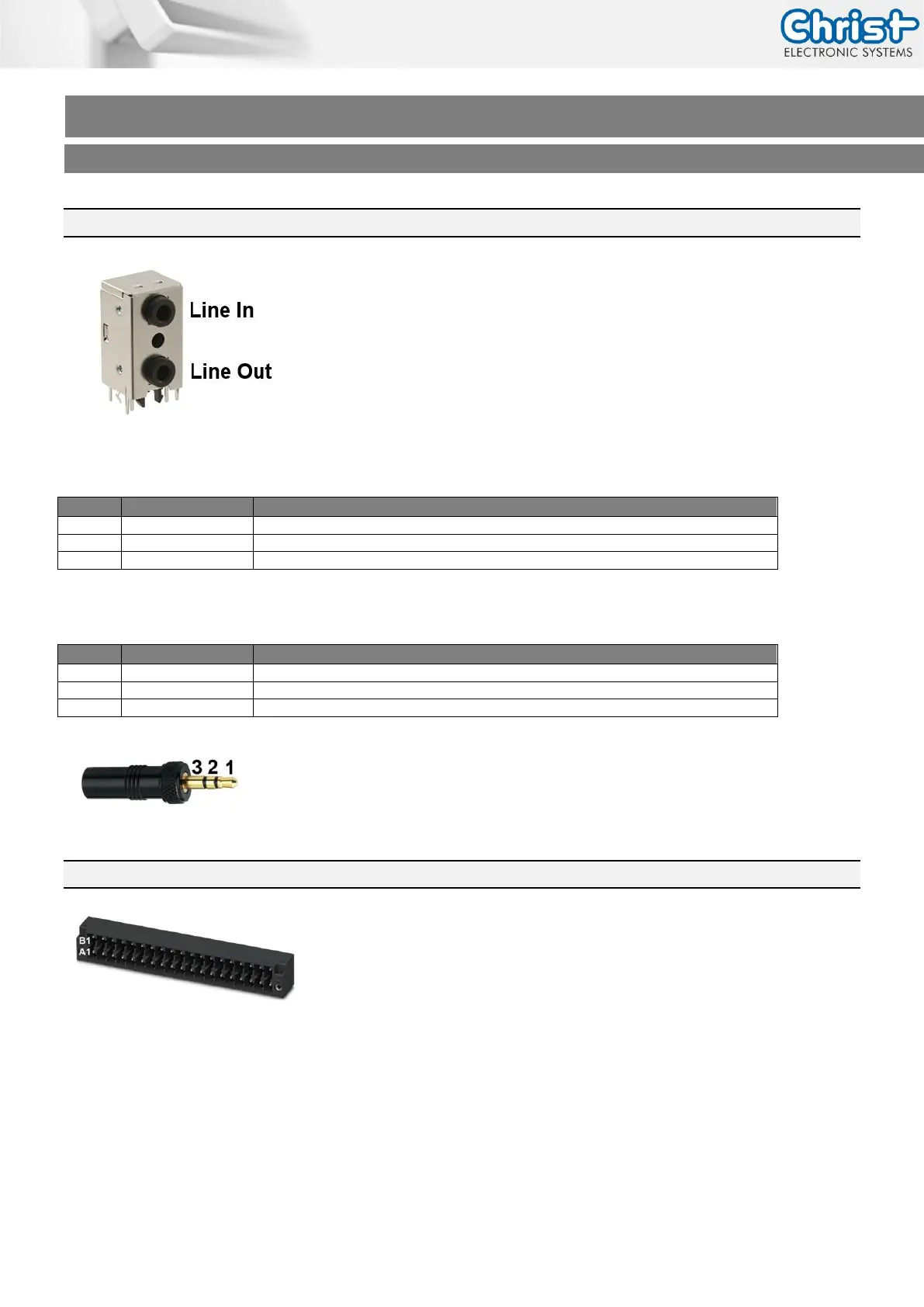

5.12 Line In / Line Out
Type
SJD-3512-33
Line In
Pin
Function
Description
1
Line In L
Audio In Left
2
Line In R
Audio In Right
3
GND
Ground
Line Out
Pin
Function
Description
1
Line Out L
Audio Out Left
2
Lin Out R
Audio Out Right
3
GND
Ground
5.13 Extension Connector
Mating
Connector
Phoenix Connector
DFMC 1,5/19-ST-3,5-LR
The Pinout is device specific. Please see the specific datasheet for more information.
