Electrical Safety Analyzer 19032-P Quick Start Guide
4. Connection test of high voltage output terminal
After the test cable of HV2 terminal has been connected. Then follow
the below procedures to connect high voltage output cable.
• Press [STOP] key firstly.
• Confirm DANGER indication LED does not light.
• The test cable of HV2 terminal with HV1 terminal is short; confirm
there is no voltage output.
• Plug high voltage test cable in HV1 terminal.
• Connect the test cable of HV2 terminal to DUT finally, and then HV1
high voltage test cable also be connected.

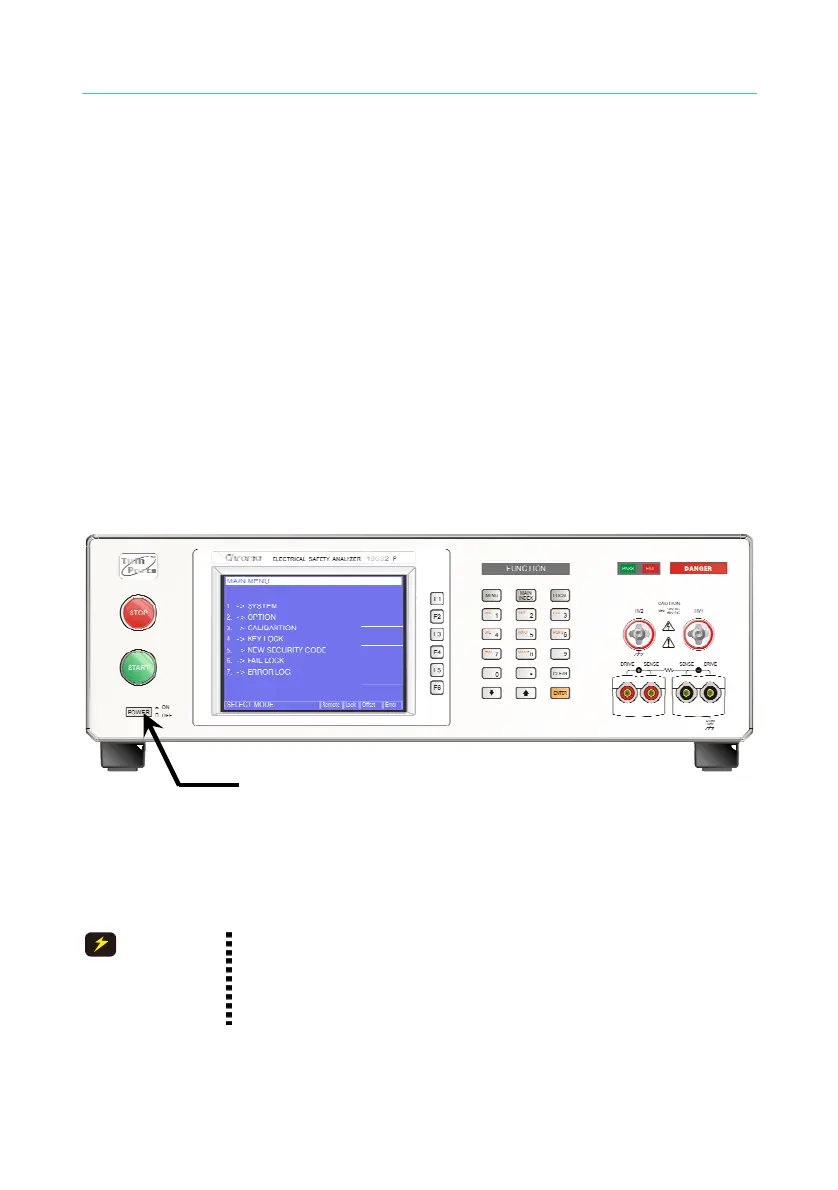

5. Test stop
When the test is over the and no need to use, or the tester is not run
status or needs to exit during use, please be sure power switch is on
OFF (that is turn off power). As Figure 3-2 shown.
Power switch
Figure 3-2
6. The dangerous area under test mode
It is very danger to touch high voltage area under operation status.
Such as touch DUT, test cable, probe and output terminal.
CAUTION
When the main unit is under test status, please don’t
touch alligator clip on test cable. Because the
insulation of plastic layer is not enough, touch it may
cause hazard. As Figure 3-3 shown.
8
