Electrical Safety Analyzer 19032-P Quick Start Guide
3. Precaution before Use
The analyzer is with high voltage output up to 6KV sending to external test.
It may occur injury and death result from error operation. Please peruse
notice item of this chapter and remember to avoid accident.
1. Shock Hazard
For preventing shock be occurred. Before using the tester, put on
insulation glove firstly and then running function related to electricity.
2. Grounding
There is a ground terminal on the rear panel cover of the tester.
Please use appropriate implement to connect the ground terminal to
earth actually. If not, there may be high voltage existed on the cover
of the tester. It is very danger whatever touches the machine under
the above statuses. It may cause shock hazard, therefore please

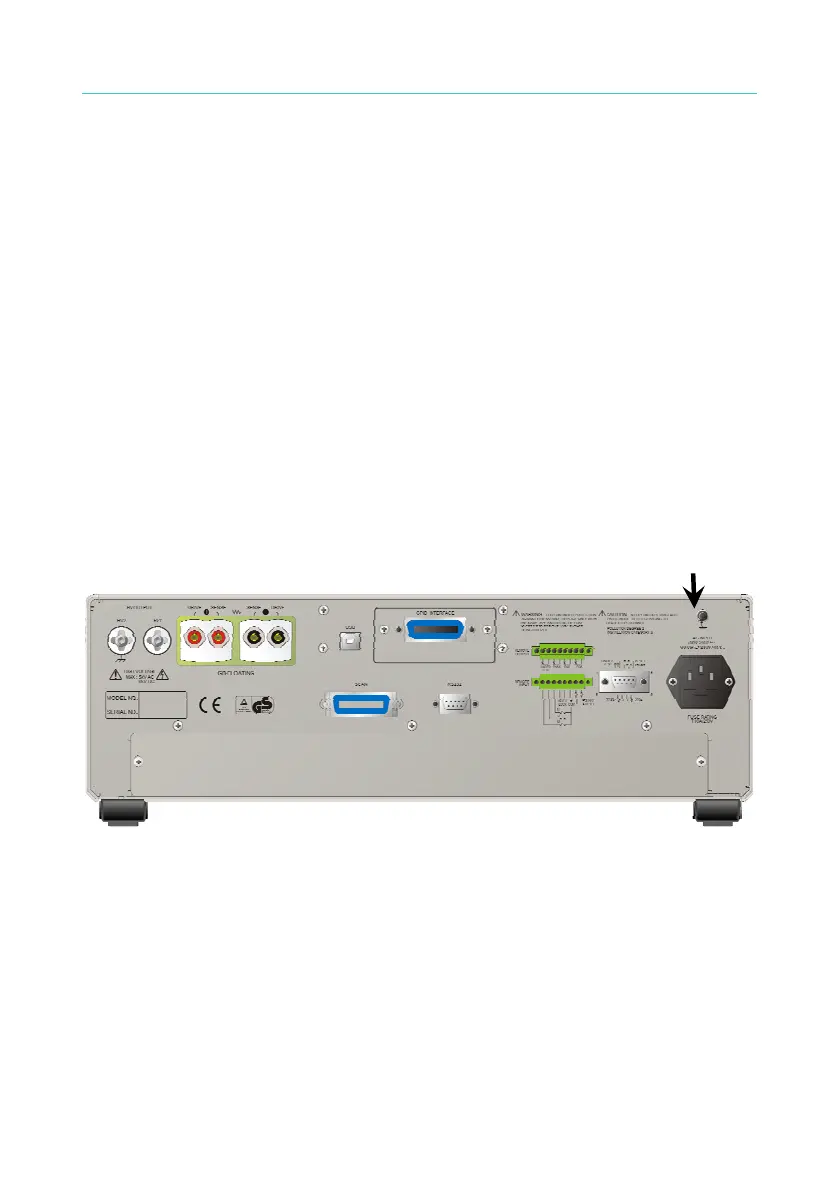

make sure to connect ground terminal to earth. As Figure 3-1 arrow
shown.
Ground
Figure 3-1
3. Connect test cable to HV1/HV2 terminal
It is necessary to check if there is loosen or drop occurred in test
cables of HV1 and HV2 terminals under operating condition at any
time. If you want to connect DUT by test cable, please connect test
cable of HV2 terminal to DUT(Device Under Test). The uncompleted
connection of test cable of HV2 terminal or drop is very danger, as
there is full of high voltage on DUT. After plugging high voltage jack in
HV1 and HV2 and then rotate 90° to screw up clockwise for avoiding
the drop of test cable.
7
