Panel Description

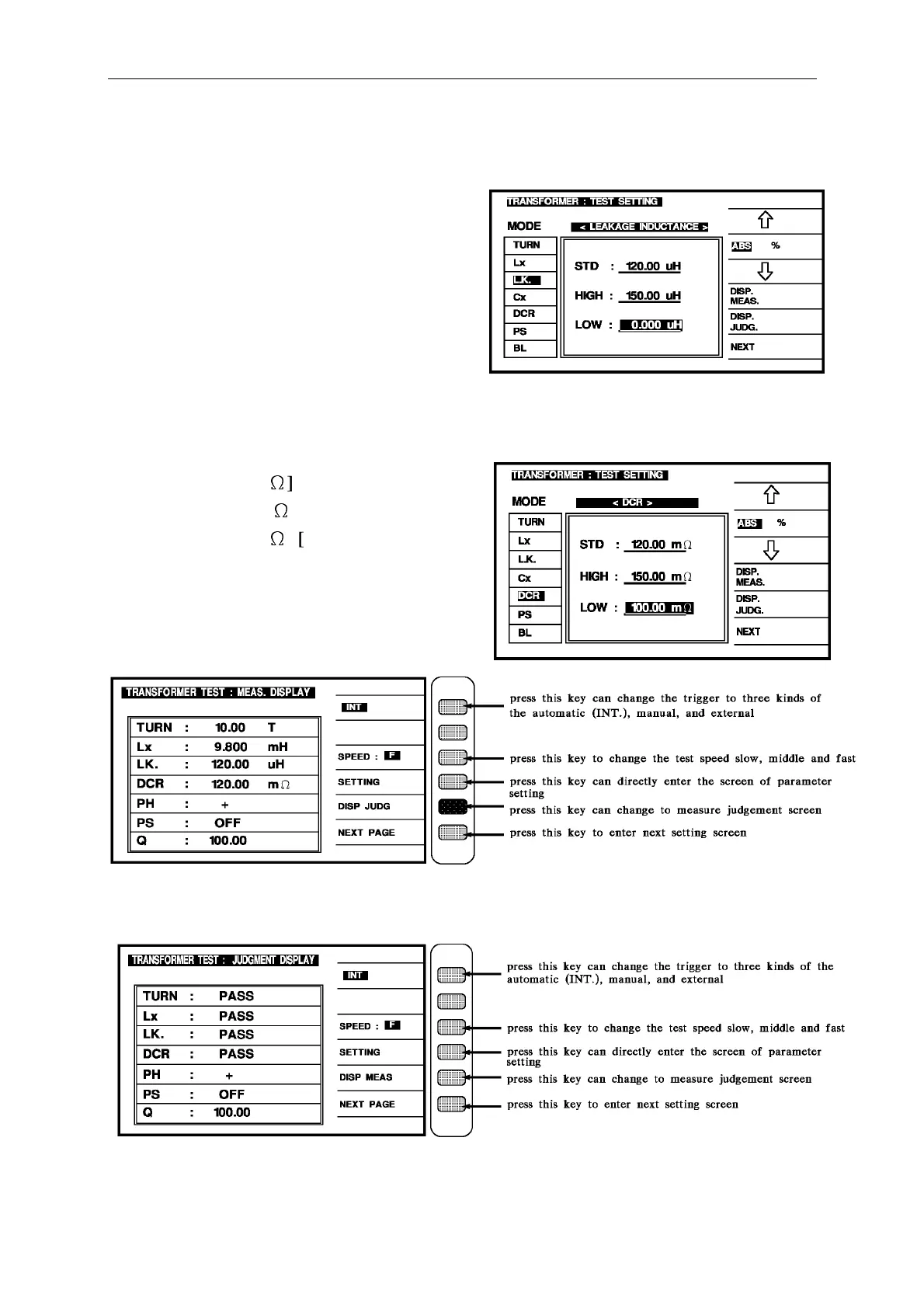

This setting item is to set the primary Leakage inductance parameter, the method of inpu t is
as below:
[ABS %]
STD. : [1] [2] [0] [uH] [Enter]
HIGH: [1] [5] [0] [uH] [Enter]
LOW : [0] [Enter]
The finished screen is as right figure, make
sure all correct then press [Enter] to enter
next setting.
This setting item is to set the primary parameter of the DCR, the method of input is as below:
STD. : [1] [2] [0] [m
Ω
] [Enter]
HIGH: [1] [5] [0] [m
Ω
] [Enter]
LOW : [1] [0] [0] [m
Ω
] [Enter]
The finished screen is as right figure, make sure
all correct then press [NEXT] to enter measure
screen as below:
Press the key [DIST. JUDG.] to enter the measure judgment screen as below:
