Automatic Transformer Test System 3300/3302 Userās Manual
Above parameters are described as following:
NOMINAL VALUE : The standard of the balance testing
BALANCE -- -- L1 : The primary turn for balance testing.
BALANCE -- -- L2 : The secondary turn for balance testing
ABS (L1 ā L2) < . : The Hi-Limit of percent deviation on balance testing.
The screen below is for setting the RESISTANCE BALANCE judgment of the transformer.
It is still a guidable operation what just following the method of the display to key in the
testing parameter and finish it by pressing [Enter] to jump to next testing item. As above by
pressing [Enter] of the last item on each screen, the unit will jump to next setting screen
automatic.
If the user desire to change the setting on each back-light, the values may change by pressing
the key which under Cursor.
Above parameters are described as following:
STANDARD : The standard value of each turn
HI LIMIT. : The judgment of the Hi-Limit value
LO LIMIT : The judgment of the Lo-Limit value
Cx.1ā¦9 : The stray capacity inductance testing set
TRANSFORMER : Pin position of the transformer
FIXTURE : The Pin on transformer reflects to the fixture
HI TERMINAL SHORT SETTING: The Hi terminal short pin setting on stray capacity inductance testing
LO TERMINAL SHORT SETTING: The Lo terminal short pin setting on stray capacity inductance testing

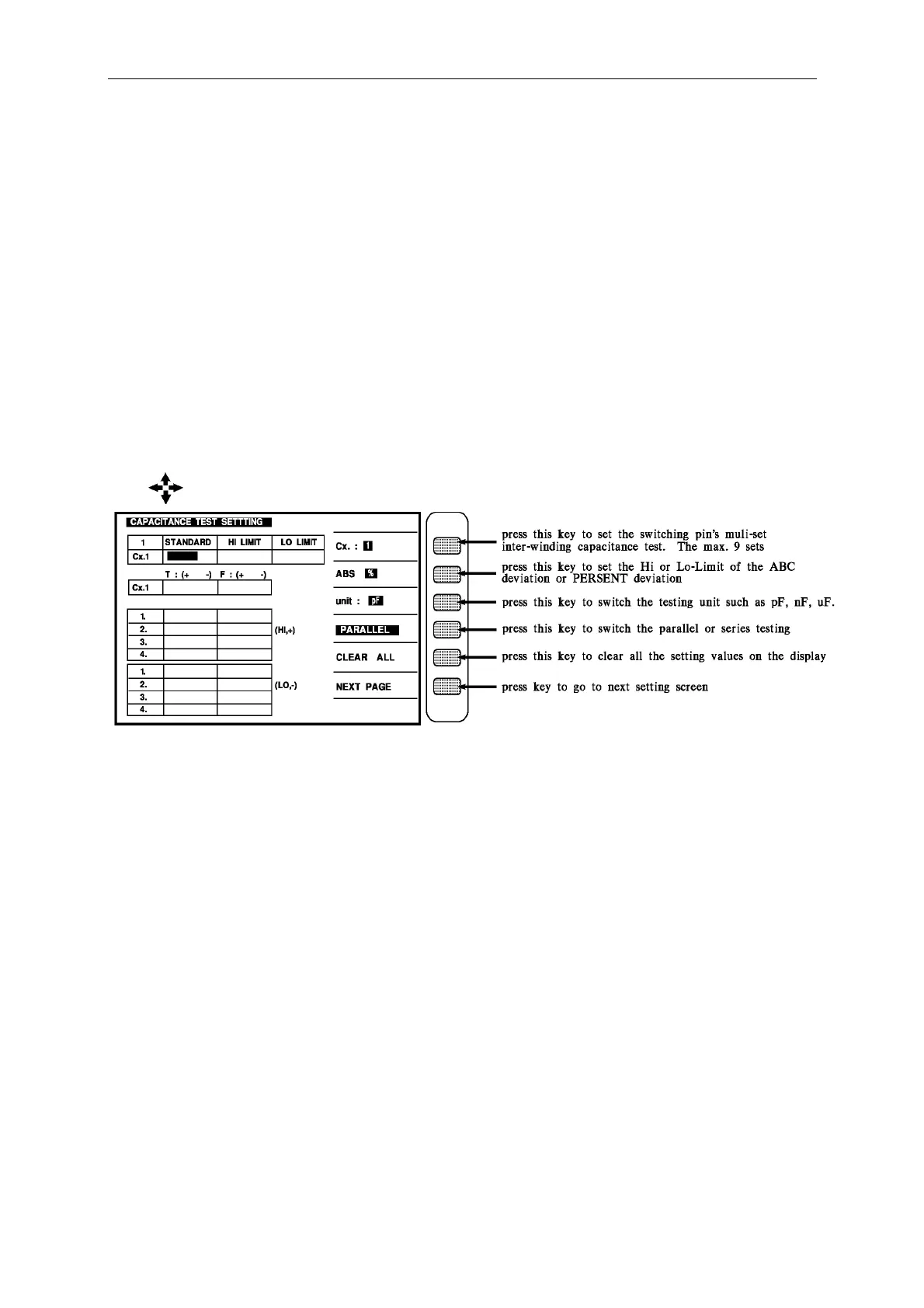

The screen below is for setting the stray capacity INDUCTANCE WITHIN TWO TURNS
judgment of the transformer. It is still a guidable operation what just following the method
of the display to key in the testing parameter and finish it by pressing [Enter] to jump to next
testing item. As above, by pressing [Enter] of the last item on each screen, the unit will
jump to next setting screen automatic.
