High Power DC Electronic Load 63200 Series Operation & Programming Manual
You can program two different static settings, A and B under all static CC, CR, CV, and CP
modes. Both A and B states use the same range. You can select A or B through the A/B
key. Slew rate determines the rate that Load level changes from one state to another.

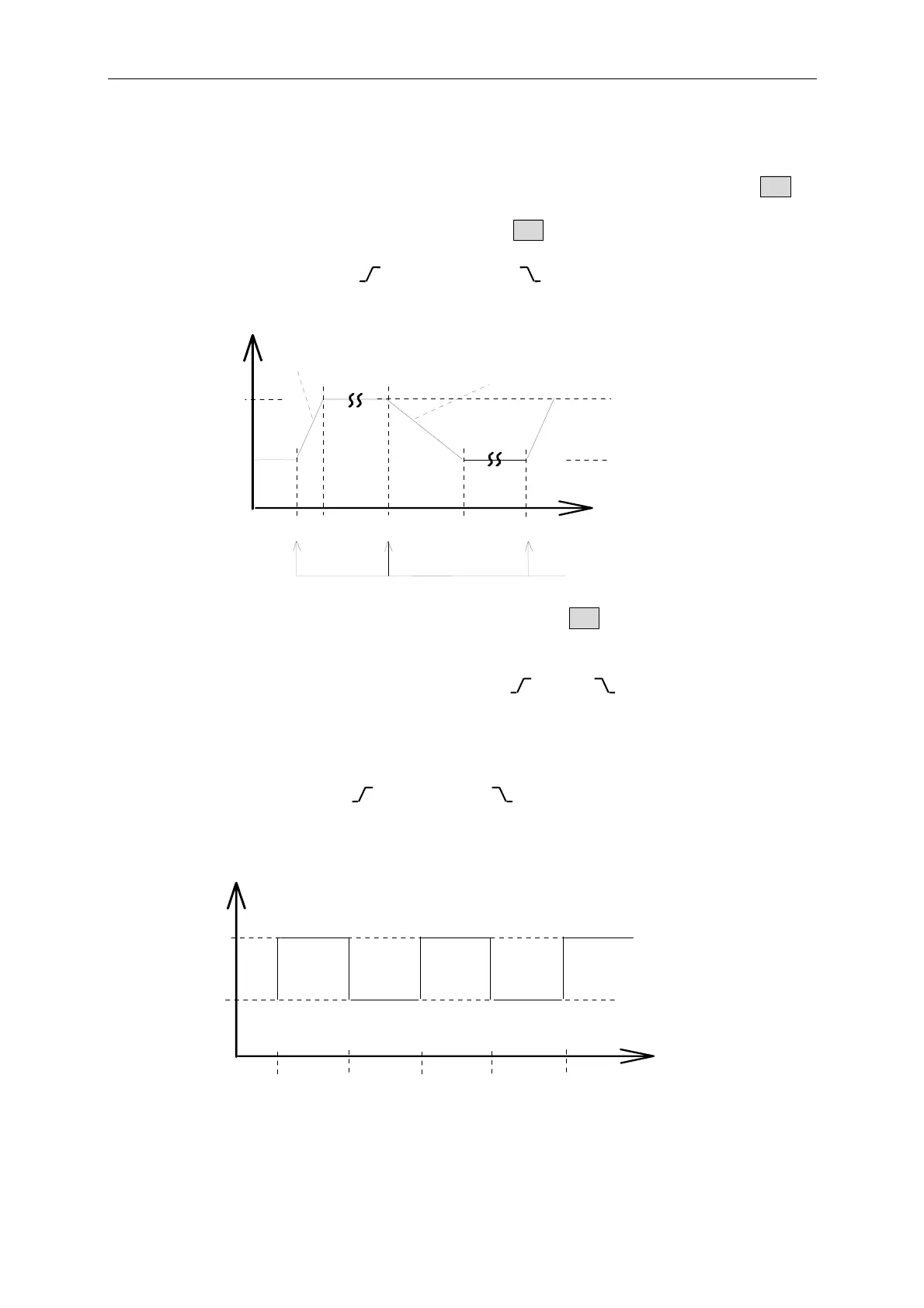

Figure 3-4 shows the load current level after pressing A/B key.
CCLA: 4A, CCLB:2A, CCL : 0.2A/µS, CCL : 0.08A/µS
Time
Current
rise slew rat
fall slew rat
State
State
4A
2A
10uS
25uS
ress ke
"A/B"
Figure 3-4 Load Level after Pressing A/B Key
Dynamic load operation enables you to program two load levels (CCDL1, CCDL2), load
duration (CCDLT1, CCDLT2), and slew rate (CCDL , CCDL ). The loading level is
switched between those two load levels according to your specific setting during operation.
The dynamic load is commonly used to test the UUT’s performance under transient loading
condition. Figure 3-5 shows current waveform of dynamic function.
CCDL1:4A, CCDL2:2A, CCDL :1A/µS, CCDL : 1A/µS,
CCDLT1:10mS, CCDLT2:10mS
Time
Current
Load1
load
10mS 10mS
10mS 10mS
4A
2A
T1
T2
T1
T2
Figure 3-5 Dynamic Current Waveform
3-6
