The door/window contact can be installed on doors, windows, and any other objects that
can open and close. The sensor transmits signals to the control panel when a magnet
mounted near the sensor is moved away. External input for wired accessory is available at
the N/C interface. The tamper protection ensures that sabotage attempts to move the
contact will result in an alarm activation.
LED Status Indicator
Transmitter
Magnet
Appearance
LED Indication
LED
Meaning
Blinks once
AA 1.5V LR6

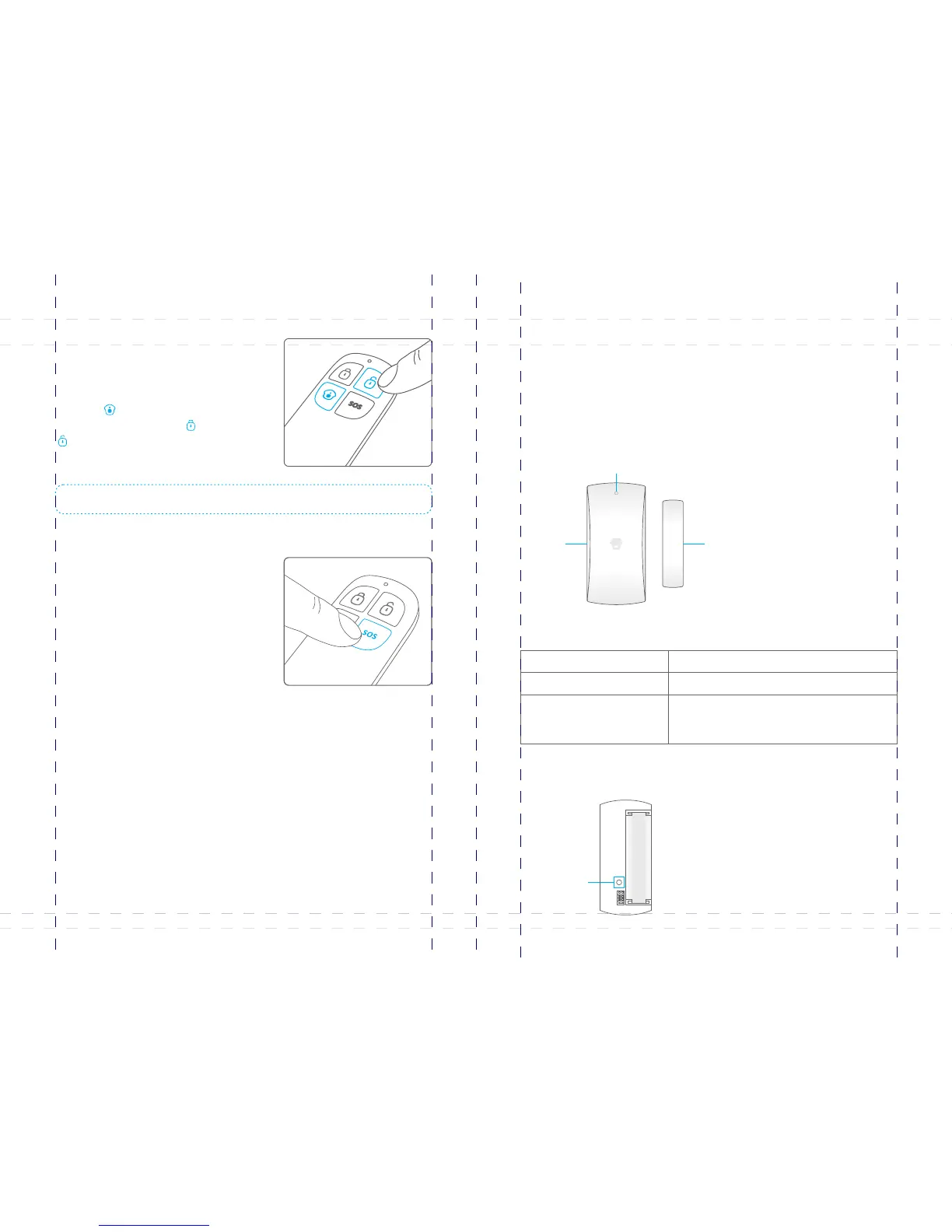

Mute Operation
When arm or disarm the system, the siren will
beep accordingly.
If siren beep is not needed, please operate as
follows:
Press button on the remote control [Stay ]
for 1 second, then press or [Arm ] [Disarm
] button. The siren is armed or disarmed
in mute without disturbing other people.
SOS
Whenever you press the button on [SOS]
the remote control, the system will alarm
immediately.
Door/Window Contact
Door/Window contact is triggered
Blinks once per 3 seconds
PCB Layout
Tamper switch
Low battery indication, LCD shows:
Sensor 1-50(Sensor Name) Low Battery. Please
change the batteries immediately
Note: If wireless strobe sirens are used, they will not sound either.
13
14
