CIAT AeroCONNECT 1B - 11 Glossary

EN
EN - 39 EN7510364-00
No.
PARAMETER NAME PARAMETER ADJUSTMENT
Description Display conditions Adjustment possible By default
Adjustment
conditions
MISTING PARAMETER IF P10 = YES and P113 = WATER
A199 MISTING OUT. TEMPERATURE
A10 = YES
A113 = elec
20 to 40°C (in increments of 1) 35
A200
MISTING STAGE DIFFERENCE A02 = (1 or yes) and A03 = 1
1 to 5°C (in increments of 1) 2
If A03 = 1 or 2
water circuits
MIST STAGE CIRCUIT 1 DIFFERENCE A02 = (2 or no) and A03 1
MIST STAGE COIL 1 DIFFERENCE A02 = (1 or yes) and A03 = 2
0.5 to 3 bar (0.5 increments) 0.5
If A03 = 1 or 2
refrig. circuits
MIST STAGE COIL1 CIR1 DIFFERENCE A02 = (2 or no) and A03 = 2
A201
MIST STAGE CIRCUIT 2 DIFFERENCE A02 = (1 or yes) and A03 = 2 1 to 5°C (in increments of 1) 2
If A03 = 2
water circuits
MIST STAGE COIL1 CIR 2 DIFFERENCE A02 = (2 or no) and A03 = 2 0.5 to 3 bar (0.5 increments) 0.5
If A03 = 2
refrig. circuits
A202
MIST STAGE COIL 2 DIFFERENCE A02 = (2 or no) and A05 = 1 1 to 5°C (in increments of 1) 2
If A05 = 1 or 2
water circuits
MIST STAGE COIL2 CIR1 DIFFERENCE A02 = (2 or no) and A05 = 2 0.5 to 3 bar (0.5 increments) 0.5
If A05 = 1 or 2
refrig. circuits
A203 MIST STAGE COIL2 CIR2 DIFFERENCE A02 = (2 or no) and A05 = 2
1 to 5°C (in increments of 1) 2
If A05 = 2
water circuits
0.5 to 3 bar (0.5 increments) 0.5
If A05 = 2
refrig. circuits
Notes
If temp > A199 the misting is operational whatever the number of FMA stages
11 - GLOSSARY
Description Meaning
STP Setpoint
HYST Hysteresis
N.U. Not used
TOR On/Off = stage cascade control
APP Unit
GEG Water chiller

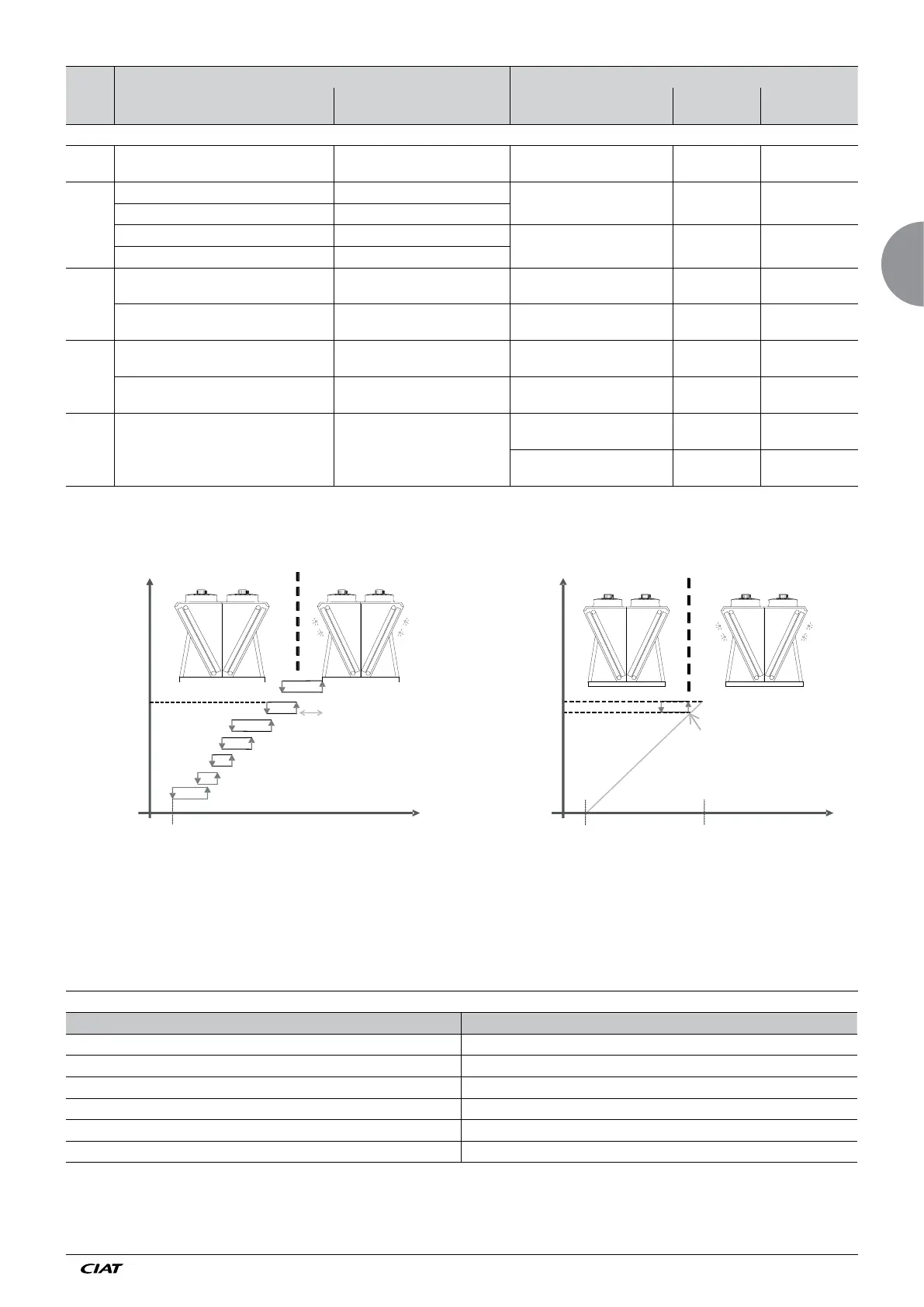

A121
100%
A200
CONTROL STAGE
Setpoint
Measurement
∆ Misting
stage
A121
A121
+ A150
8V
0V
10V
(Valeur A113.1 = 8)
Misting control
Fan control signal
Measurement
Setpoint
FAN CONTROL
(Value A113.1 = 8)
Misting control
